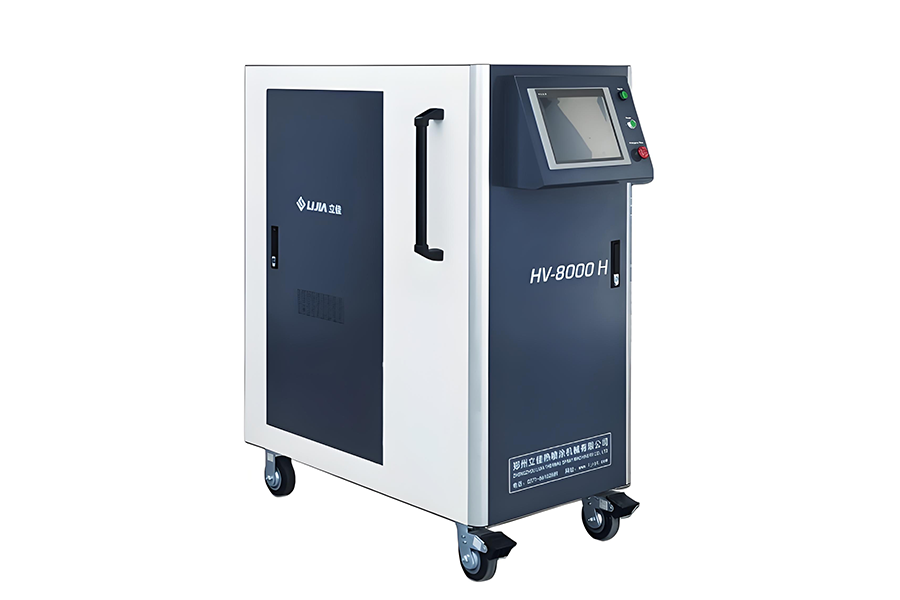

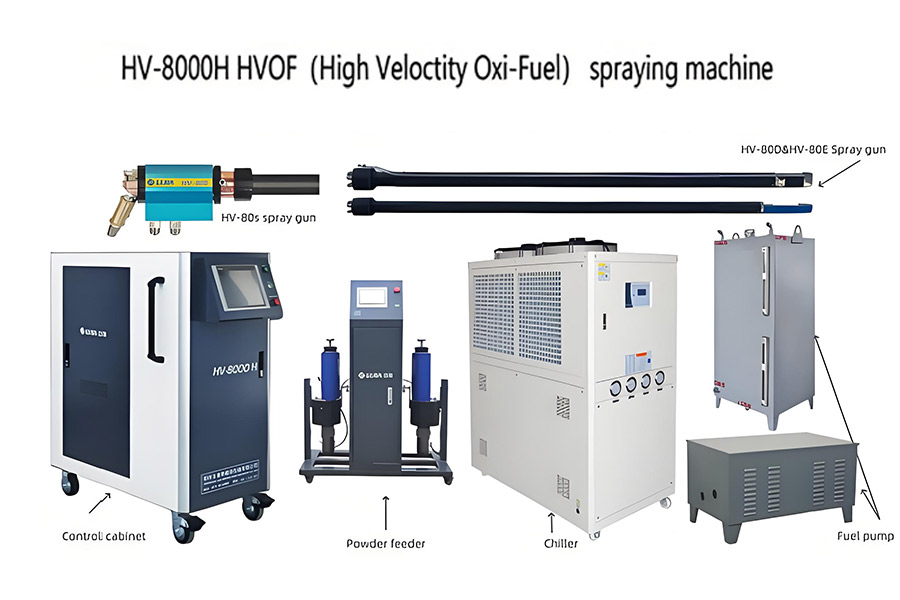

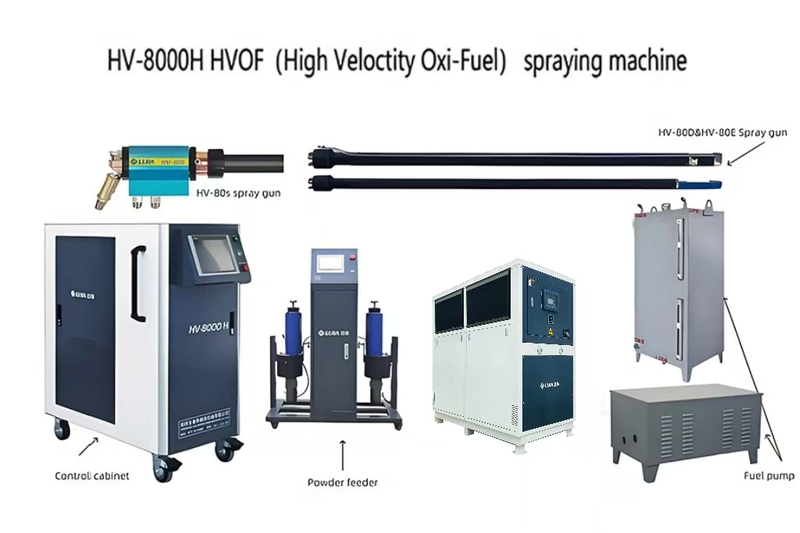

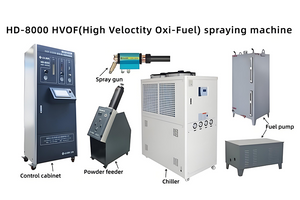

The HV-8000H supersonic flame spraying constitutes a novel HVOF system that employs aviation-grade kerosene as fuel. Presently, it is among the most sought-after kerosene-fueled equipment globally. Since its introduction to the market, this equipment has consistently garnered unanimous praise from customers and found widespread application in various thermal spraying enterprises both at home and abroad. The fundamental principle is as follows: Oxygen, as the combustion-supporting agent, thoroughly atomizes kerosene via the atomizing nozzle to form a combustible gas mixture that enters the combustion chamber. The ignition system ignites it, generating high-temperature and high-pressure combustible gas. After ignition and combustion through the Laval nozzle, a high-temperature and high-pressure supersonic flame flow is created. The powder feeding system transports powder materials from the low-pressure area into the flame flow. Following heating and acceleration, they are sprayed onto the workpiece surface to form a high-quality coating. The HV-8000H spraying system is a spraying equipment developed on the basis of introducing, assimilating, and absorbing advanced foreign equipment and technologies. In comparison with other HVOFs, it exhibits multiple remarkable characteristics.

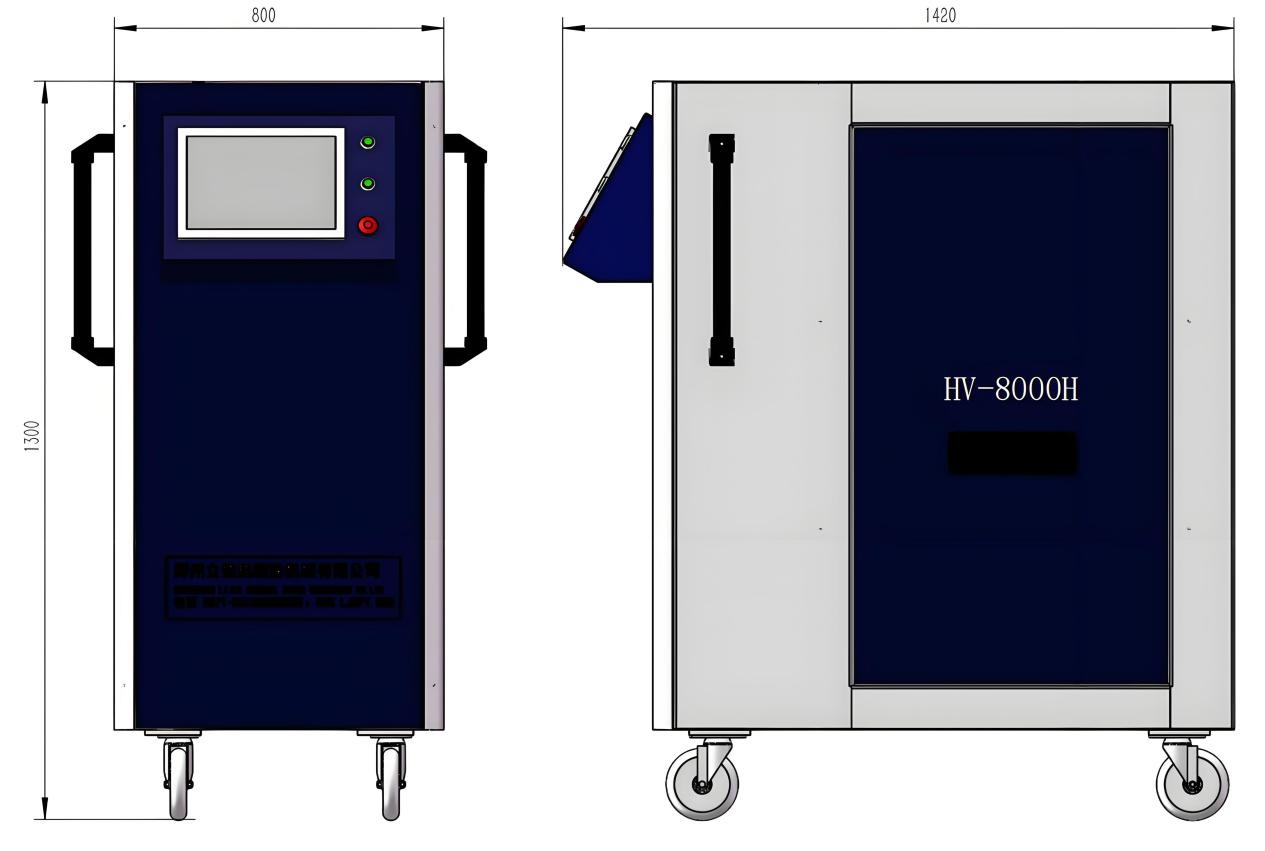

The HV-8000H equipment's panel settings are all operated through a touch screen. It boasts 12 powerful function modules that are internationally leading. All kinds of common operations, information display, and fault alarms are comprehensively provided. Moreover, it is highly congruent with users' operating habits, being simple to use and boasting stable quality.
HV-8000H boasts numerous functions and features, and its advantages are predominantly manifested in the following ten aspects:
1.Operated via touch screen, the equipment's design structure adopts a fully closed-loop automatic control structure. The gases are all controlled by mass flow controllers, enabling real-time flow monitoring and automatic attainment of the process set value.
2.The fuel utilized is kerosene (hydrogen and nitrogen are added for inner hole spraying), and the combustion agent is oxygen, representing the safest combustion mode currently on the market.
3.The spray gun's structure is designed according to the principle of a rocket generator. The maximum combustion chamber pressure is 150 PSI, the flame flow speed exceeds 2000 m/s, and the output power is large and can be adjusted steplessly.
4.The spray gun employs radial powder feeding, which enables better dissolution of the powder and uniform distribution throughout the entire flame, thereby enhancing the covering efficiency and the quality of the coating.
5.Equipped with the function of process formula storage and recall, parameters can be added, modified, and saved. Up to 8000 sets of process parameters can be called at any time.
6.The system design locates the temperature range within a certain scope and takes speed improvement as the main goal of structural optimization. Tests have proven that the equipment's coating not only has high binding strength and high coating density but also features compressive stress on the surface.
7.The system's fuel flow adopts a full closed-loop design and modular design, with high-performance PLC control, ensuring safe and simple operation.
8.The combustion design produces particles with a velocity of 1100 m/s (3300 to 3900 feet per second), which is significantly faster than other HVOF systems.
9.The thickness of the spray coating is greater than 10mm (compressive stress coating), and the microhardness is higher than that of other ordinary HVOF systems on the market. The microhardness of the HV-80s spraying WC-Co coating is as high as 1450, while the microhardness of the WC-Co coating sprayed by other gas HVOF spray guns is 900 to 1100.
10.The HV-8000H model achieves excellent high-pressure HVOF coating quality, and the coating can reach a binding strength of 70 MPa.
Fully imported core accessories, imported mass flow meter, full closed-loop system, high-performance PLC control
Sturdy design, imported valves, pressure switches, flow switches, sensors, quality and European and American equipment.
Touch screen operation, intelligent automatic operation;
Process parameters are clear at a glance on the touch screen panel;
One-button operation, which can realize the automation and real-time detection of the spraying process, and a number of alarm prompts can respond immediately to system failures.
Project | Parameter
|
Program control | Full closed-loop PLC control |
Interface control | 12 inch touch screen |
Gas flow control | World renowned brand quality flow controller |
Input power | 10KW |
Kerosene pressure | 1.5Mpa |
Kerosene flow rate | 0~12.68GPH |
Oxygen pressure | 1.8Mpa |
Oxygen flow rate | 0~2130SCFH |
Hydrogen pressure | 1.8Mpa |
Hydrogen flow rate | 200L/min |
Carrier gas pressure | 1.2Mpa |
Carrier gas flow rate | 0~30L/min |
Nitrogen pressure | 1.8Mpa |
Nitrogen flow rate | 200L/min |
Origin of accessories | Germany, United States, Japan, Italy |

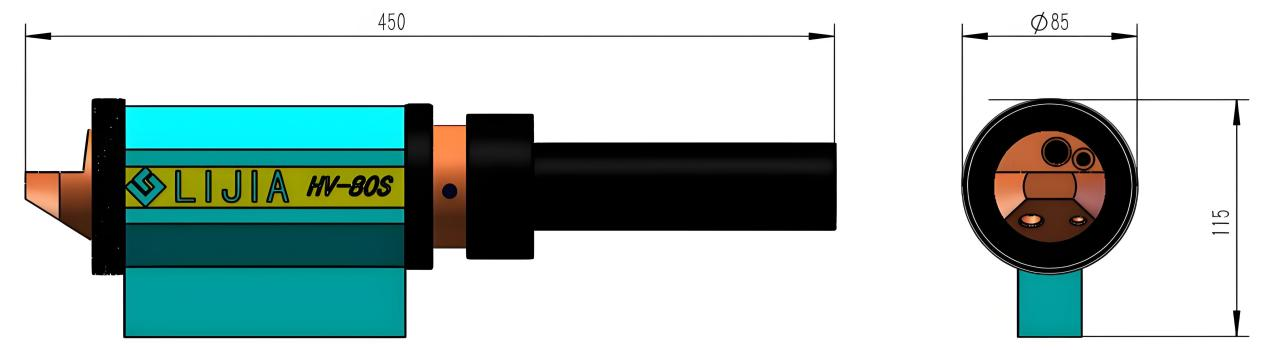

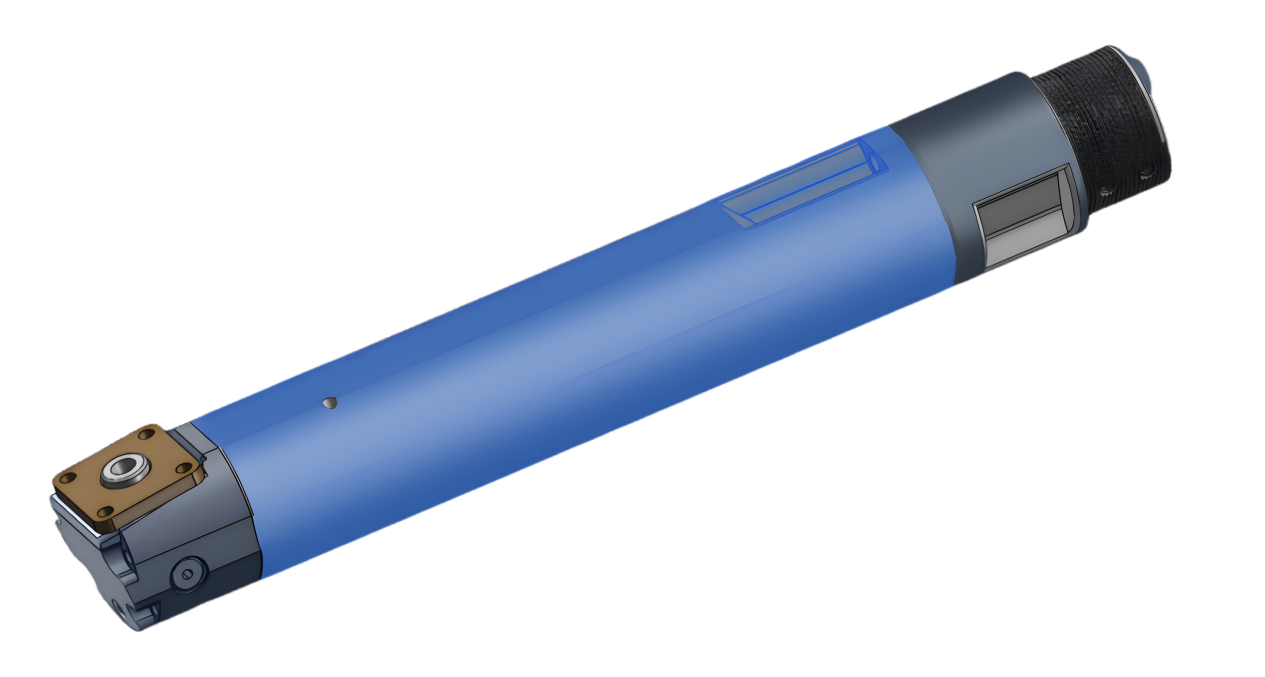

lOur patented physicochemical nozzle and combustion chamber for kerosene ensure complete combustion without carbon deposition.
The flame flow velocity remains stable and surpasses that of competing brands, resulting in a more potent jet force.
The fuel utilized is aviation kerosene, with oxygen serving as the combustible gas. The combustion process achieves high temperatures, and the supersonic flame flow is amplified sevenfold through the utilization of a Laval tube.
A unique dual-channel waterway design provides adequate cooling, enabling continuous operation for 24 hours without interruption.
Item | Parameter
|
Flame speed | 2000m/s |
Flame temperature | 3000℃ |
Spray rate | 0-9.6kg/h(WC-CO) |
Powder particle velocity | |
Porosity | ≤1% |
Coating bonding strength | ≥70Mpa |
Spray powder particle size | -30+5μm,-38+10μm,-45+15μm |
Cooling method | Water cooling |
Cooling water flow rate | 2.3m³/h |
Size/Weight | 450*85*170mm, 4.5kg |

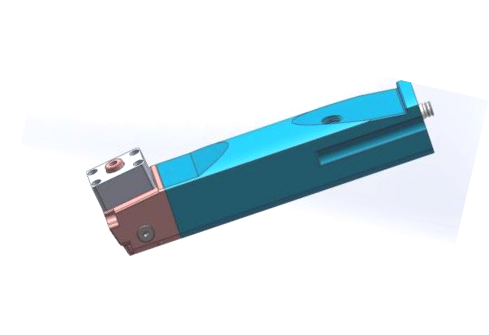

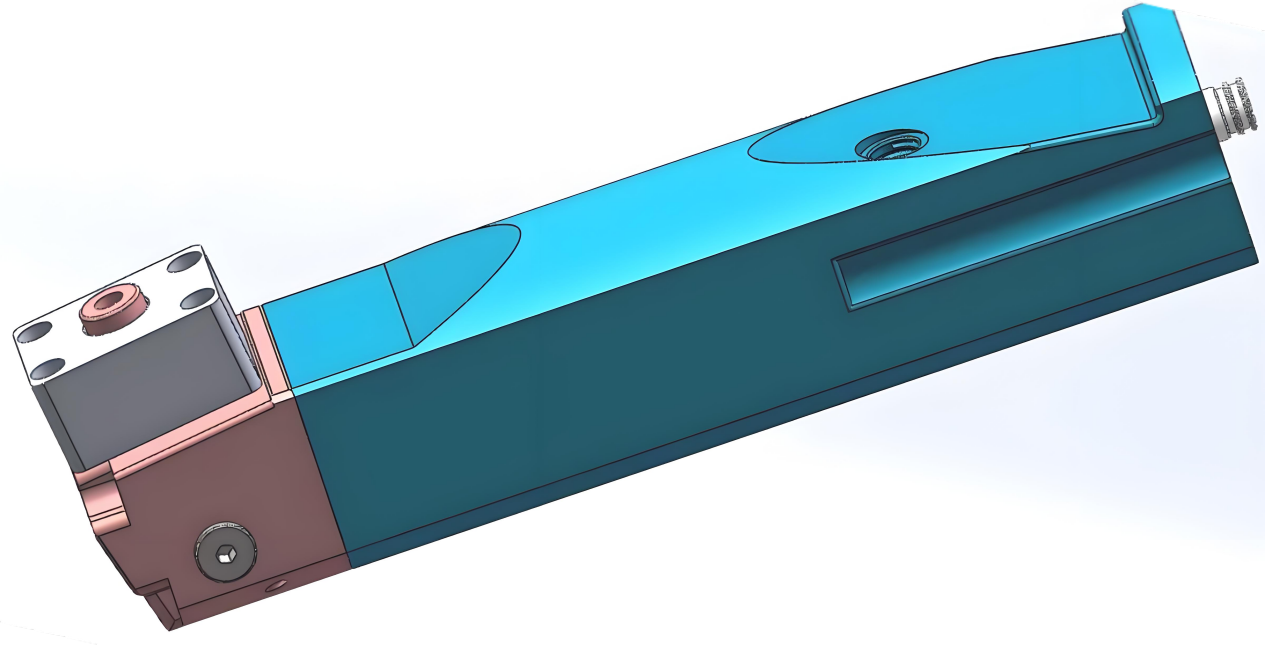

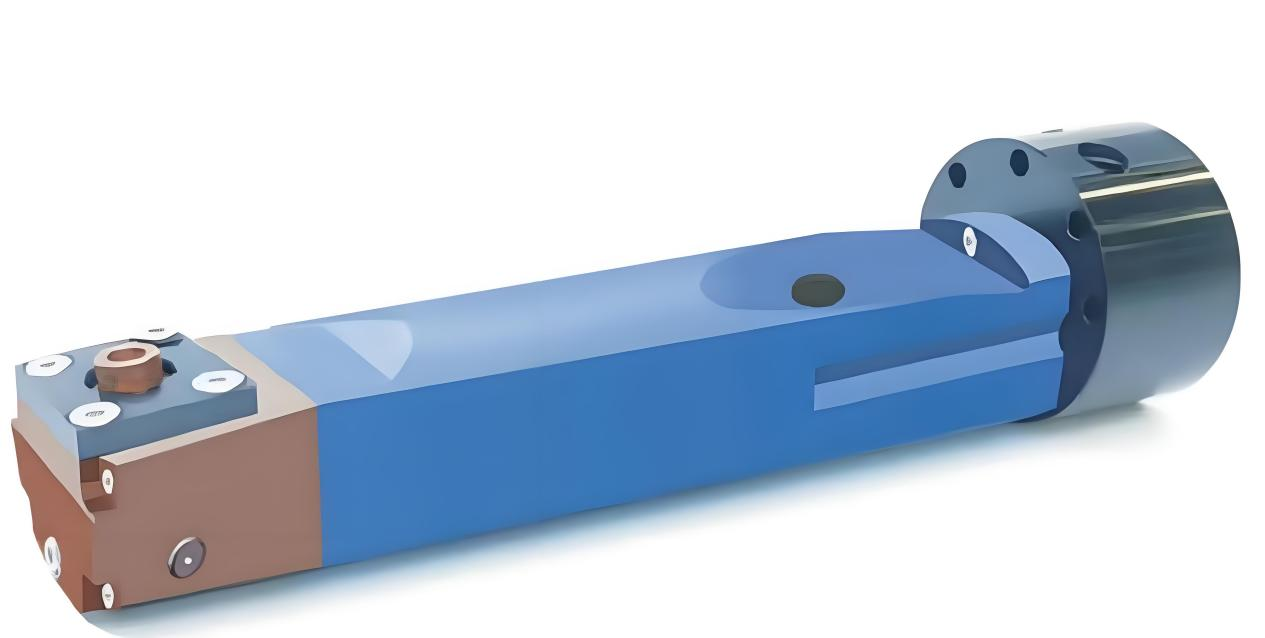

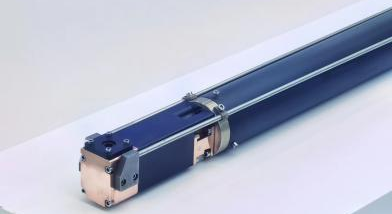

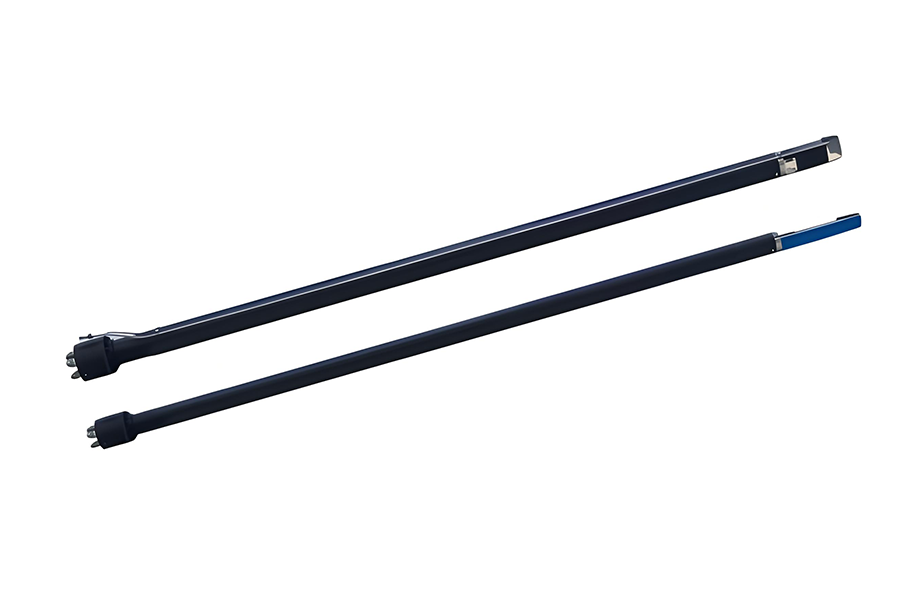

HV-80D/HV-80M kerosene supersonic flame inner hole spraying gun
Kerosene and oxygen as fuel for the spray gun (hydrogen and nitrogen can also be added) are safe and suitable for more powder
The flame direction of the nozzle is designed to be angled, the body of the gun body does not need to be tilted, and the flame of the gun can be directly perpendicular to the internal surface of the workpiece.
The main body of the spray gun can be made of light and high-temperature resistant material as an extension rod, and the extension rod can be customized ranging from 1-3 meters
The spray gun is equipped with a full closed-loop control system and adopts a mass flow controller to ensure the stability of spraying.
Project | Parameter
| |
HV-80D kerosene supersonic flame bore gun
| Recommended spray bore diameter | ≥150mm |
Barrel length | Standard 1000mm, customizable up to 3000mm in | |
Flame speed | 2000m/s | |
Flame temperature | 3000℃ | |
Spray rate | 2-3 kg/h(Tungsten carbide) | |
Coating porosity | ≤1% | |
Coating bond strength | >60Mpa | |
Spray powder particle size | 2~10μm,5-15μm | |
Cooling method | Water cooling | |
Cooling water flow | 1.6m³/h |
The appearance of the spray gun is smaller, suitable for spraying the inner hole with a diameter of more than 90mm, and the fuel used: oxygen, kerosene, hydrogen, nitrogen, carrier gas, the spray gun is innovative, and has obtained invention patents.
The flame direction of the nozzle is designed to be angled, and the flame of the spray gun can be directly perpendicular to the internal surface of the workpiece.
Two rotation modes: (1) the spray gun does not move, the workpiece rotates, (2) the spray gun rotates, the workpiece does not move.
The main body of the spray gun can be made of lightweight high-temperature resistant material as an extension rod, and the extension rod can be customized with a range of 0.6-3 meters
The spray gun is equipped with a full closed-loop control system and adopts a mass flow controller to ensure the stability of spraying.
Project | Parameter
| |
HV-80E kerosene Supersonic flame bore gun
| Recommended spray bore diameter | ≥90mm |
Barrel length | Standard 600mm, customizable up to 3000mm in | |
Flame speed | 2000m/s | |
Flame temperature | 3000℃ | |
Spray rate | 1.2-1.8 kg/h(Tungsten carbide) | |
Coating porosity | ≤1% | |
Coating bond strength | > 60Mpa | |
Spray powder particle size | 2~10μm or 5-15μm | |
Cooling method | Water | |
Cooling water flow | 1.3m³/h |
The appearance of the spray gun is smaller, suitable for spraying the inner hole with a diameter of 60-90mm, the fuel used: oxygen, kerosene, hydrogen, nitrogen, carrier gas, the spray gun is innovative, and has obtained the invention patent.
The flame direction of the nozzle is designed to be angled, and the flame of the spray gun can be directly perpendicular to the internal surface of the workpiece.
Two rotation modes: (1) the spray gun does not move, the workpiece rotates, (2) the spray gun rotates, the workpiece does not move.
The main body of the spray gun can be made of lightweight high-temperature resistant material as an extension rod, and the extension rod can be customized with a range of 0.6-3 meters
The spray gun is equipped with a full closed-loop control system and adopts a mass flow controller to ensure the stability of spraying.
Project | Parameter
| |
HV-80F kerosene supersonic flame inner hole spray gun | Recommended spray inner | 60-90mm |
Gun body length | Standard 600mm, customizable up to 3000mm in length | |
Flame speed | 2000m/s | |
flame temperature | 3000℃ | |
Spray rate | 1.2-1.8 kg/h(tungsten carbide) | |
Coating porosity | ≤1% | |
Coating bonding strength | > 60Mpa | |
Spray powder particle size | 2~10μm or 5-15μm | |
Cooling method | Water-cooling | |
Cooling water flow rate | 1.3m³/h |
The appearance of the spray gun is smaller, suitable for spraying the inner hole with a diameter of 45-60mm, the fuel used: oxygen, kerosene, hydrogen, nitrogen, carrier gas, the spray gun is innovative, and has obtained the invention patent.
The flame direction of the nozzle is designed to be angled, and the flame of the spray gun can be directly perpendicular to the internal surface of the workpiece.
Two rotation modes: (1) the spray gun does not move, the workpiece rotates, (2) the spray gun rotates, the workpiece does not move.
The main body of the spray gun can be made of lightweight high-temperature resistant material as an extension rod, and the extension rod can be customized with a range of 0.6-3 meters
The spray gun is equipped with a full closed-loop control system and adopts a mass flow controller to ensure the stability of spraying.
Project | Parameter
| |
HV-80M kerosene supersonic flame inner hole spray gun
| Recommended spray inner | 45-60mm |
Gun body length | Standard 600mm, can be customized, up to 3000mm | |
Flame speed | 2000m/s | |
Flame temperature | 3000℃ | |
Spray rate | 0.5-1.5kg/h(tungsten carbide) | |
Coating porosity | ≤1% | |
Coating bonding strength | > 60Mpa | |
Spray powder particle size | 1~9μm,2~10μm | |
Cooling method | Water cooling | |
Cooling water flow | 1.3m³/h |

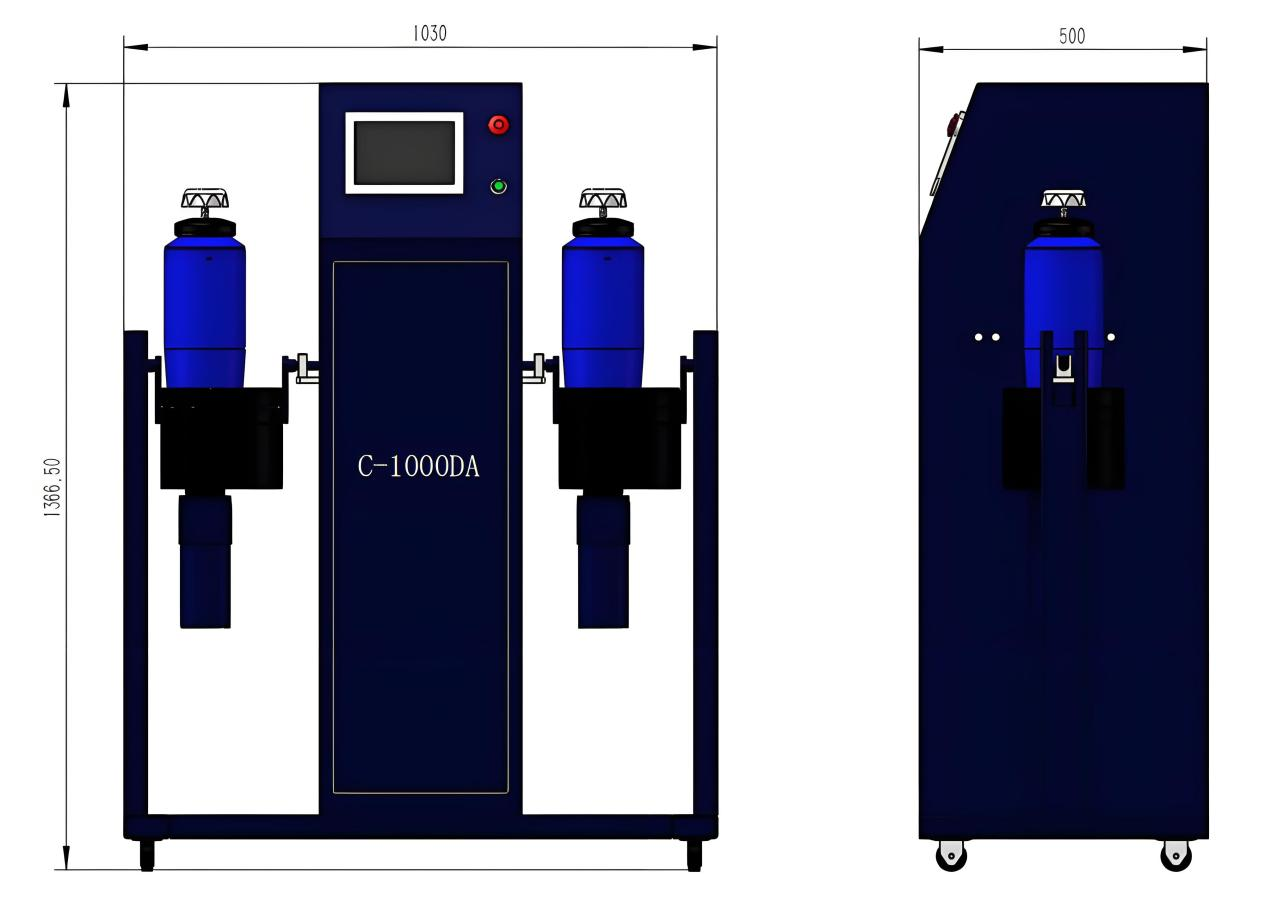

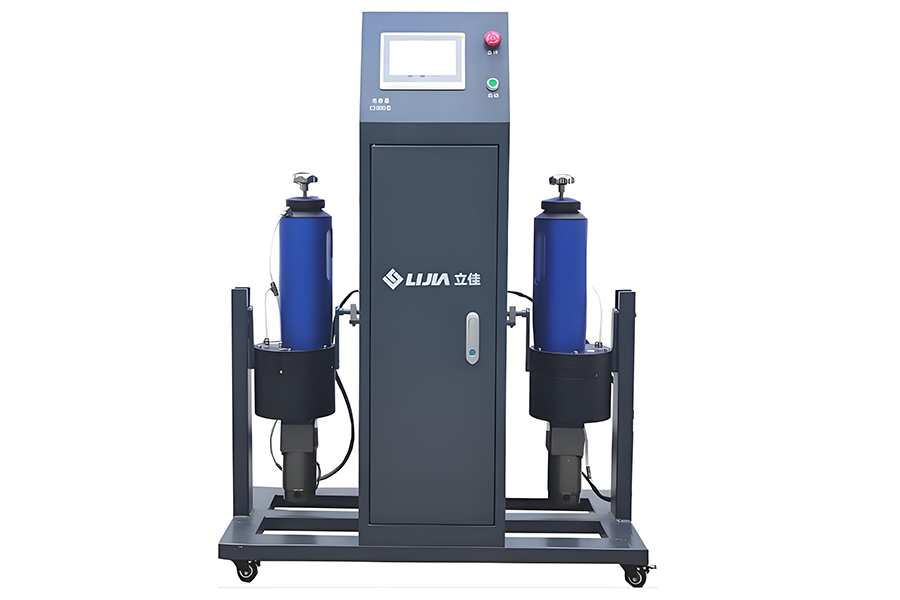

C-1000DA Twin Tube Weighing Powder Feeder
The powder feeder is a high-precision powder feeding mechanism with turntable scraper output, and the powder output is uniform.
The powder feeder is equipped with a touch screen and an imported brand mass flow controller, which makes the carrier gas flow conveying more accurate.
Using small flow of nitrogen or argon as the powder feeding gas, the powder reaches the powder outlet with the rotation of the bottom powder feeding tray, and enters the spray gun together with the powder feeding gas, which saves more gas than the traditional medium and high pressure powder feeder.
Wide range of powder particle sizes.
It adopts the latest inclined structure in the world, which is convenient for cleaning the powder, and it only takes 3 seconds to turn the barrel body and pour out the powder
Project | Parameter
|
Powder delivery method | Scraper disc |
Quantity of powder delivery tubes | 2 units |
Operation method | PLC+touch screen |
Gas control mode | European and American imported quality flow controller |
Powder cleaning method | Bucket body flip type |
Powder cylinder mode | Single tube type |
Self cleaning function | Yes |
Single powder cylinder capacity | 3L |
Sending powder gas | Nitrogen or argon |
Powder delivery air pressure | 0.1-0.6Mpa |
Carrier gas flow rate | 0~30L/min |
Powder delivery speed | 0~220g/min |
Powder delivery accuracy | ±2% |
Powder size | 5~150μm |

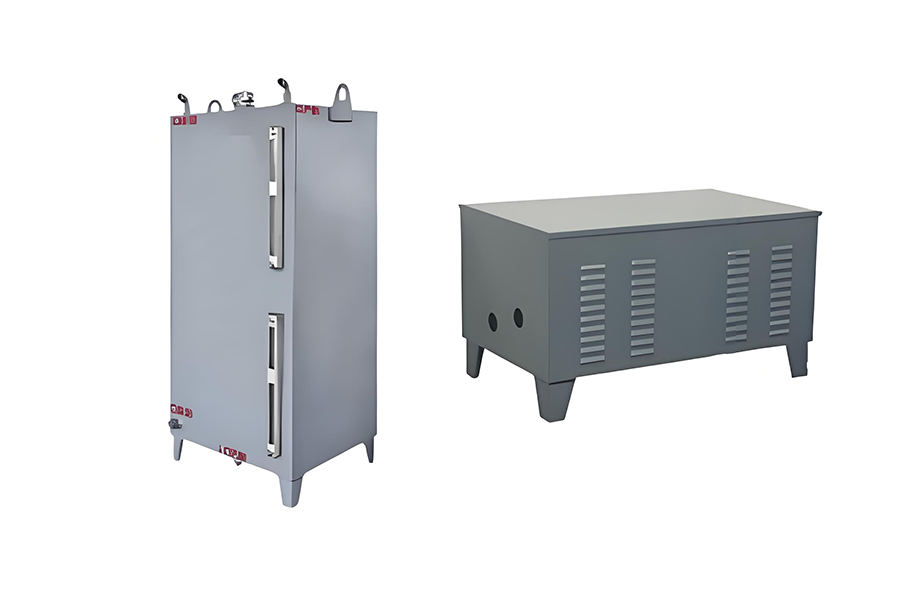

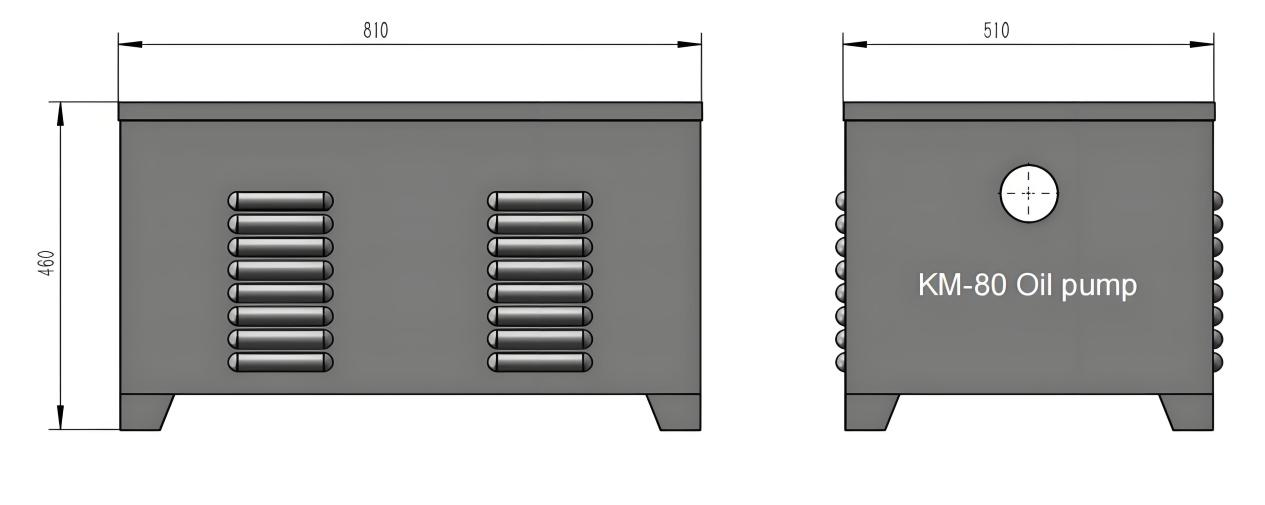

KM-80 Oil Pump Storage System
Regarding the equipment that supports the storage and delivery of aviation kerosene to the main device, it employs a motor imported from South Korea and a constant pressure oil pump from Taiwan. After being verified by hundreds of customers in use, it is stable and reliable. Compared with the pulse diaphragm pumps of other manufacturers, it has more stable pressure and flow, resulting in a very stable flame flow.
Project | Parameter
|
Input power supply | AC380V/3P/50Hz |
Input power | 750W |
Volume | 200L |
Kerosene management | Circulating conveying+stable oil presser(1.3Mpa) |
Supporting components | Oil inlet and outlet pipes |
Oil pump motor and oil pump head | World renowned brands |
Oil pump size/weight | 800*500*450mm, 55kg |

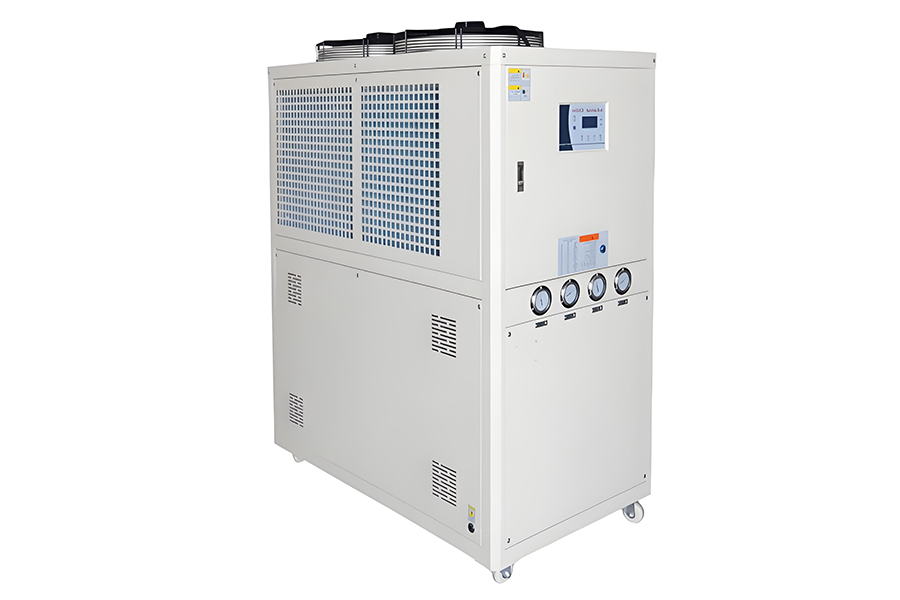

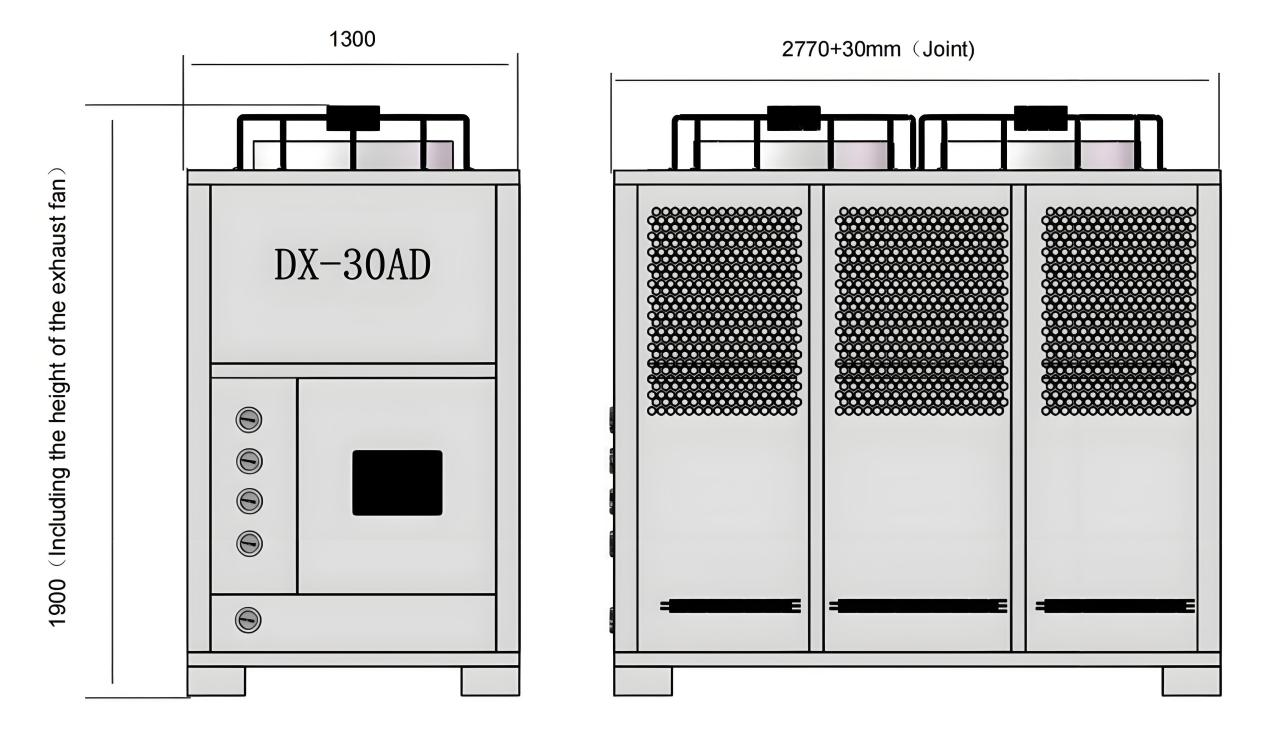

DX-30AD cooling-water machine
Utilizes internationally advanced fully enclosed scroll compressors, featuring an integrated motor and compression chamber design, completely eliminating shaft seal leakage issues.
The compressor design is flexible, ensuring extremely low noise levels during operation.
An integrated design allows for easy connection to power supply and water pipes for immediate operation.
The heat exchanger employs imported high-efficiency heat exchange copper tubes, delivering exceptional heat transfer efficiency.
Temperature control is managed by a digital controller, ensuring a high degree of automation.
The system automatically detects water temperature or return water temperature, controls compressor operation through the controller, and automatically adjusts the cooling capacity of the unit, resulting in more energy-efficient and efficient operation.
Equipped with a fault reminder function, facilitating rapid diagnosis of unit failures by personnel.
Trouble-free operating time of up to 80,000 hours.
Extremely low maintenance costs.
Item | Model/Specification | |||||
DX-30AD | ||||||
Standard cooling capacity | K cal/hr | 77236 | ||||
kw | 89.81 | |||||
Total input power | kw | 33.7 | ||||
Powder | 3N-380V-50HZ | |||||
Refrigerant | Name | R22 | ||||
Control mode | Expansion valves | |||||
Compressor | Type | Fully enclosed scroll type | ||||
Efficiency | kw | 11.3KW*2 | ||||
Condenser | Type | Fin type | ||||
Cooling air volume | m3/h | 30000 | ||||
Evaporator | Type | Stainless steel plate changeable | ||||
Frozen water volume | m3/h | 16 | ||||
Inlet and outlet water pipe diameter | G2-1/2″ | |||||
water pump | power | kw | 2.2 | |||
pressure | Kpa | 220 | ||||
Head | M | 20 | ||||
water pump | power | kw | 2.2 | |||
Flow rate | M3/H | 4 | ||||
pressure | Kpa | 950 | ||||
Head | M | 95 | ||||
Security | Compressor overheat protection, overcurrent protection, high and low pressure protection, over-temperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, anti-freeze protection. | |||||
Temperature control range | Adjustable from 5°C to 25°C | |||||
Dimensions | L | mm | 2770+30mm(Connector) | |||
W | mm | 1280 | ||||
H | mm | 1900 (including exhaust fan height) | ||||
Weight | KG | 930 | ||||
Explanation | 1. The minimum outlet temperature can be adjusted to 5 degrees Celsius | |||||
2. The medium on the freezing side of the unit must be water |
1.Manufacturing: In the automotive manufacturing industry, thermal spraying equipment is utilized to apply wear-resistant and corrosion-resistant coatings, significantly enhancing the lifespan of automotive components such as pistons and synchronizer rings.
2.New Energy Field: Within the solar energy sector, thermal spraying technology prepares high-temperature anti-oxidation coatings, thereby boosting the efficiency of solar energy conversion. In the lithium battery industry, corrosion-resistant coatings improve the safety and durability of lithium batteries.
3.General Mechanical Equipment: Thermal spraying technology is employed for the repair and surface enhancement of mechanical parts, including small shafts, shaft sleeves, and other general components, to improve their wear resistance, corrosion resistance, and other critical properties.
4.Aerospace: Engine turbine blades are coated using thermal spraying to enhance their high-temperature resistance and overall reliability.
5.Heavy Machinery: Various industrial equipment benefits from wear-resistant coatings provided by thermal spraying, enhancing the durability and operational efficiency of the equipment.
6.Petrochemical Industry: For mechanical parts operating in corrosive environments, thermal spraying technology prepares anti-corrosion and wear-resistant coatings, ensuring longer service life and operational integrity.
7.Metallurgical Industry: Metallurgical machinery and equipment parts are coated with special functional coatings, such as high-temperature and wear-resistant coatings, using thermal spraying techniques.
8.Transportation: Key engine components of ships, power locomotives, and other vehicles are treated with thermal spraying technology to effectively resist high-temperature wear and corrosion, ensuring extended operational life and performance.
9.Water Conservancy Engineering: Steel structure bridges, hydropower station sluice gates, and other critical infrastructure are sprayed with zinc, aluminum, or zinc-aluminum alloy as a durable protective coating, providing long-term corrosion protection.
10.Light Industrial Machinery: High-speed textile machinery, printing machinery, and other light industrial equipment benefit from metal coatings prepared by thermal spraying, offering superior wear resistance and extended service life.
11.Medical: implants such as artificial joints, surgical instruments, catheters and stents, diagnostic equipment.
Press the activation button on the touch screen control panel window.
Wait for 5 seconds to allow the pipelines inside the spray gun to circulate. Then click the start button, and the running indicator light will turn on.
The console will automatically initiate the following procedures:
a. Cooling water ON
b. Powder feeding carrier gas ON
c. Ignition system ON
d. Small flow rate oxygen ON
e. Small flow rate fuel ON
f. After a few seconds' delay
g. Standby flow rate oxygen ON
h. Standby flow rate fuel ON
Press the button to switch to the running state, so that the oxygen and fuel flow rates rise to the set values.
Depending on the type of spraying powder, the flow rates of oxygen and fuel can be precisely adjusted on the console to obtain a slender cylindrical supersonic flame with 5 - 12 Mach nodes.
Click the powder feeding button to start the powder feeding and spraying operation.
Shutdown operations:
a. Click the powder feeding button again to turn off the powder feeding. After waiting for 5 seconds, press the stop running button, and the oxygen and fuel flow rates will gradually decrease in a linear proportion until the spray gun flame is extinguished.
b. For emergency shutdown, directly press the emergency stop (total stop) button. Generally, this shutdown method is not recommended.
Q. What sets your ultrasonic thermal spray equipment apart from competitors?
A: Our ultrasonic thermal spray equipment stands out due to its advanced ultrasonic atomization technology, which ensures more uniform and dense coatings with excellent bonding strength. It also offers higher deposition rates and the ability to spray a wider range of materials, making it versatile for various applications across different industries.
Q:Can your equipment handle large-scale industrial projects?
A: Absolutely. Our ultrasonic thermal spray equipment is designed to handle both small-scale and large-scale industrial projects. It features robust construction and high-performance capabilities, ensuring consistent and reliable coating application even on large surfaces and complex geometries.
Q:.How do you ensure the quality and performance of your equipment?
A: Quality and performance are our top priorities. We employ rigorous testing protocols and quality control measures throughout the manufacturing process. Each piece of equipment undergoes extensive testing before shipment to ensure it meets our high standards for reliability, durability, and precision.
