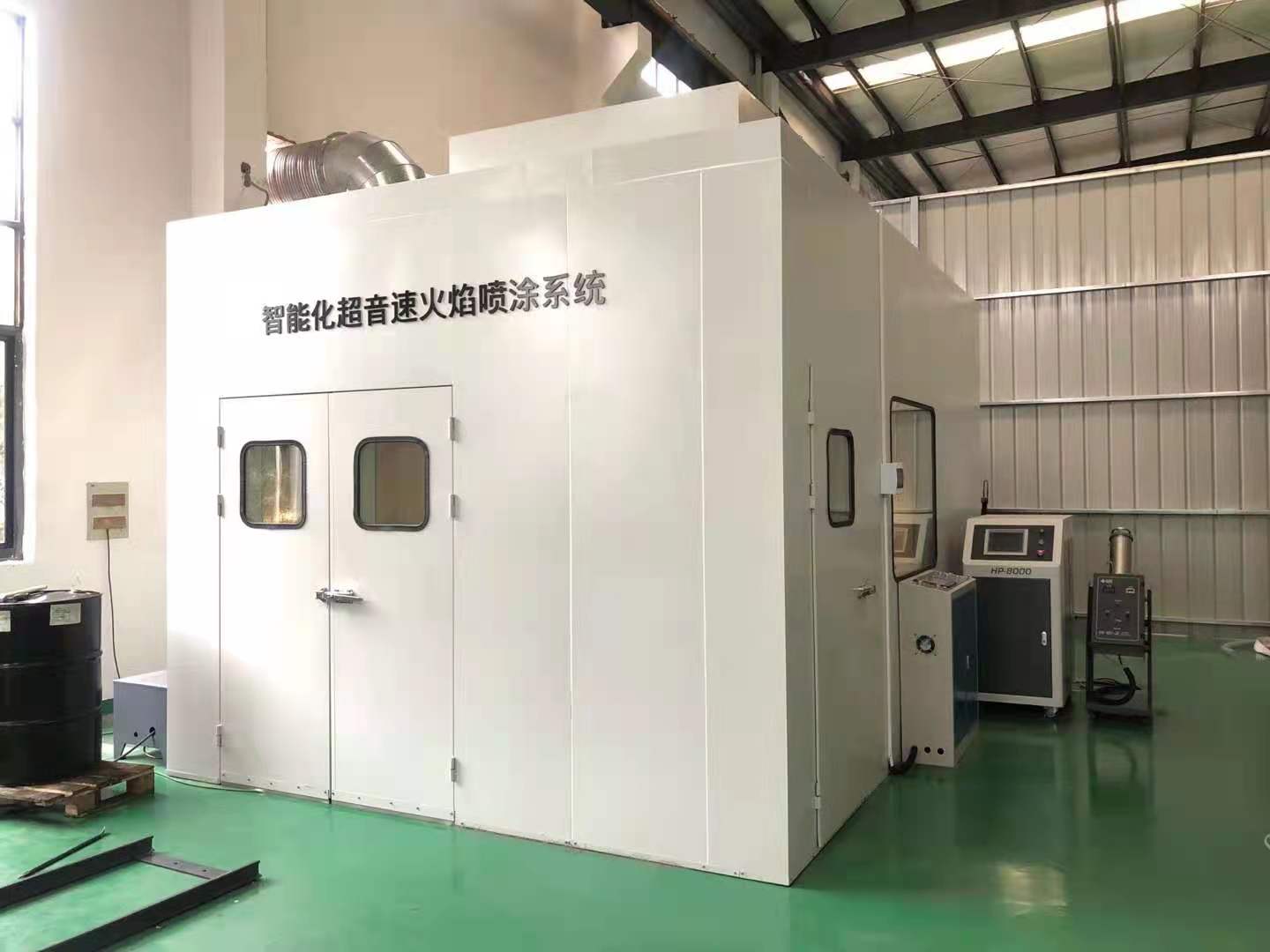

Industrial Upper Open-Top Soundproof Spraying Enclosure

Share to:

Industrial Upper Open-Top Soundproof Spraying Enclosure

Zhengzhou Lijia's top-opening spray booth is designed specifically for spraying applications. The booth features a regular, well-structured design that adapts to various factory layouts; the top-opening design facilitates the entry and exit of large workpieces and simplifies internal maintenance. The spraying technology offers excellent sound insulation and environmental protection, reducing noise and controlling dust to ensure stable and uniform coatings, meeting high-quality production requirements. Customizable dimensions and airflow are available, along with fast response service. Welcome to inquire for solutions and quotations!

Availability:



Inquire

Upper open-top soundproof spraying room

Product Introduction

Product Uses

FAQ

Zhengzhou Lijia Upper Open-Top Spraying Room

As a professional piece of equipment tailored to industrial spraying demands, the Zhengzhou Lijia Upper Open-Top Spraying Room features a regular box-shaped structure, making it ideal for factories and other industrial settings. It adopts an upper open-top design, which facilitates the loading and unloading of large workpieces and the maintenance of internal equipment. Meanwhile, it inherits Zhengzhou Lijia’s technical strengths in spraying equipment, boasting excellent sound insulation and environmental protection performance. This effectively controls noise during the spraying process, creates a stable and eco-friendly environment for spraying operations, and meets the requirements of industrial production for coating quality and production environment. It is widely used in various industrial scenarios that require surface spraying treatment to enhance the wear resistance, corrosion resistance, and other properties of workpieces.

Product Advantages

More Convenient Workpiece Loading and Unloading: The open-top design allows large, ultra-high, or complex workpieces to enter and exit quickly. It solves the issues of limited side door space and difficult loading/unloading in traditional spraying rooms, and is particularly suitable for spraying special workpieces such as large mechanical parts and aerospace special-shaped components.
More Flexible Space Utilization: The top-opening design does not occupy side space, enabling freer workshop layout planning. It makes effective use of vertical space, improves site utilization, and adapts to diversified production environments.
More Efficient Ventilation and Purification: The upper open-top structure simplifies the optimization of airflow organization (e.g., top air intake and exhaust). It enables efficient collection and treatment of exhaust gas, enhances the cleanliness of the spraying environment, reduces pollutant emissions, and delivers superior environmental performance.
Easier Equipment Maintenance: Through the top opening, internal facilities such as pipelines, lighting, and filtration systems can be directly overhauled, eliminating the need for complex side disassembly or space clearance. This reduces maintenance difficulty and time costs.
Better Sealing and Stability: The unique top-opening design strengthens the overall sealing of the spraying room, minimizes interference from external airflow and dust, creates a more stable spraying environment, ensures the uniformity and stability of coating quality, and lowers the defect rate.

Application Scenarios & Operation Guide of Zhengzhou Lijia Upper Open-Top Spraying Room

1. Industry-Specific Application Scenarios

Automobile Manufacturing Industry

Used for painting automobile bodies and large parts. The open-top design facilitates the hoisting, entry, and exit of large components like automobile bodies. Its excellent sealing, clean environment, and efficient paint mist treatment system ensure uniform, high-quality body coatings, meeting the demands for automobile appearance and corrosion resistance.

Machinery and Equipment Manufacturing Industry

Suitable for spraying large machinery and equipment, including heavy mechanical parts, industrial motor housings, and machine tool guides. The top-opening structure eases the loading and unloading of overweight, oversized mechanical parts. The optimized ventilation system controls the spraying environment, improving the effect of wear-resistant and anti-corrosion coatings and extending machinery service life.

Aerospace Industry

Applied to high-precision, large-scale, and complex-shaped workpieces such as aircraft parts and spacecraft structural components. The open-top spraying booth provides a stable, sealed environment, accurately controlling temperature, humidity, and cleanliness. It meets the aerospace field’s strict requirements for high coating adhesion and low porosity, while also facilitating the hoisting and operation of special workpieces.

Metal Products Industry

Used for anti-corrosion coating of large metal structural parts (e.g., bridge steel components, large pipes, outdoor sculptures). The open-top booth accommodates extra-long, oversized metal parts. Its efficient paint mist collection and purification system reduces environmental pollution, ensures uniform coating coverage, and enhances the corrosion resistance of metal products.

Electrical and Electronic Industry

Ideal for coating large electronic enclosures like industrial control cabinets and large server enclosures. The open-top spraying booth delivers a clean spraying environment, preventing dust particles from affecting coating quality. It also simplifies the hoisting and spraying of large enclosures, meeting the appearance and protection needs of electrical and electronic products.

2. Product Operation Guide

Step 1: Equipment Inspection

Before starting the equipment, comprehensively check whether the spraying room’s ventilation system, filtration device, lighting equipment, and electrical components are operating normally. Confirm that the top opening structure is free of faults and that all parts are properly connected and fastened.

Step 2: Environmental Cleaning

Clear debris inside the spraying room to ensure no flammable or explosive materials are present, and keep the working space clean and tidy. Check that the paint mist treatment system is in good condition; replace or clean the filter material in advance if necessary.

Step 3: Workpiece and Coating Preparation

Clean the surface of the workpiece to be sprayed and mount it on a suitable support. Mix the coating in accordance with process requirements, inspect the performance of the spraying equipment, and adjust parameters such as air pressure and spraying distance.

Q: Can the ventilation system effectively exhaust paint mist and harmful gases? Will there be any residue?

A: The ventilation system we equipped is carefully designed. The fans are of high-power and large-air-volume models, the ventilation ducts are reasonably laid out, and high-efficiency filters are installed. Under normal operating conditions, it can exhaust paint mist and harmful gases, such as formaldehyde and benzene, in a timely and thorough manner, ensuring that the concentration of harmful gases in the booth is always kept below the safety standard without obvious residue, safeguarding the health and safety of operators.

Q: What standard specifications are available for selection? If my workpiece has special dimensions, can it be customized?

A: We have a professional design team that can customize the soundproof spraying booth according to the detailed dimensions of your workpiece and spraying process requirements to ensure a perfect fit for your production needs.

Q: Is the subsequent operation cost of using this soundproof spraying booth high?

A: The subsequent operation cost mainly includes aspects such as energy consumption and consumable replacement. In terms of energy consumption, the ventilation system and some temperature control devices are the main energy-consuming parts, but our products use energy-saving equipment, and the power consumption is within a reasonable range during normal operation. In terms of consumables, such as filters and vulnerable parts of spray guns, the replacement cycle is relatively long and the cost is controllable. Overall, compared with the improvement in production efficiency it brings, the subsequent operation cost is not high and can create a good cost performance for your enterprise.
