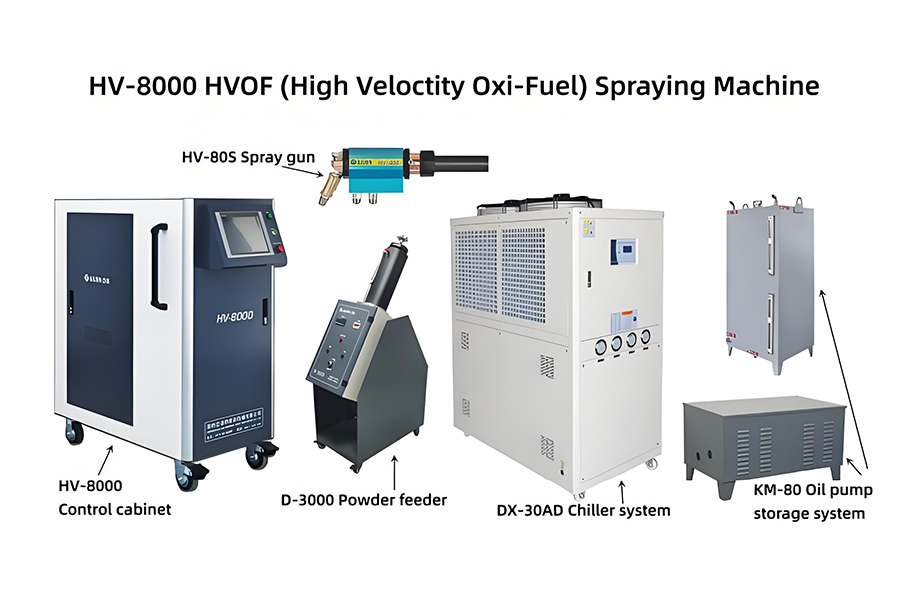

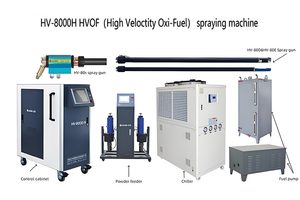

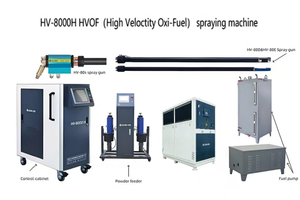

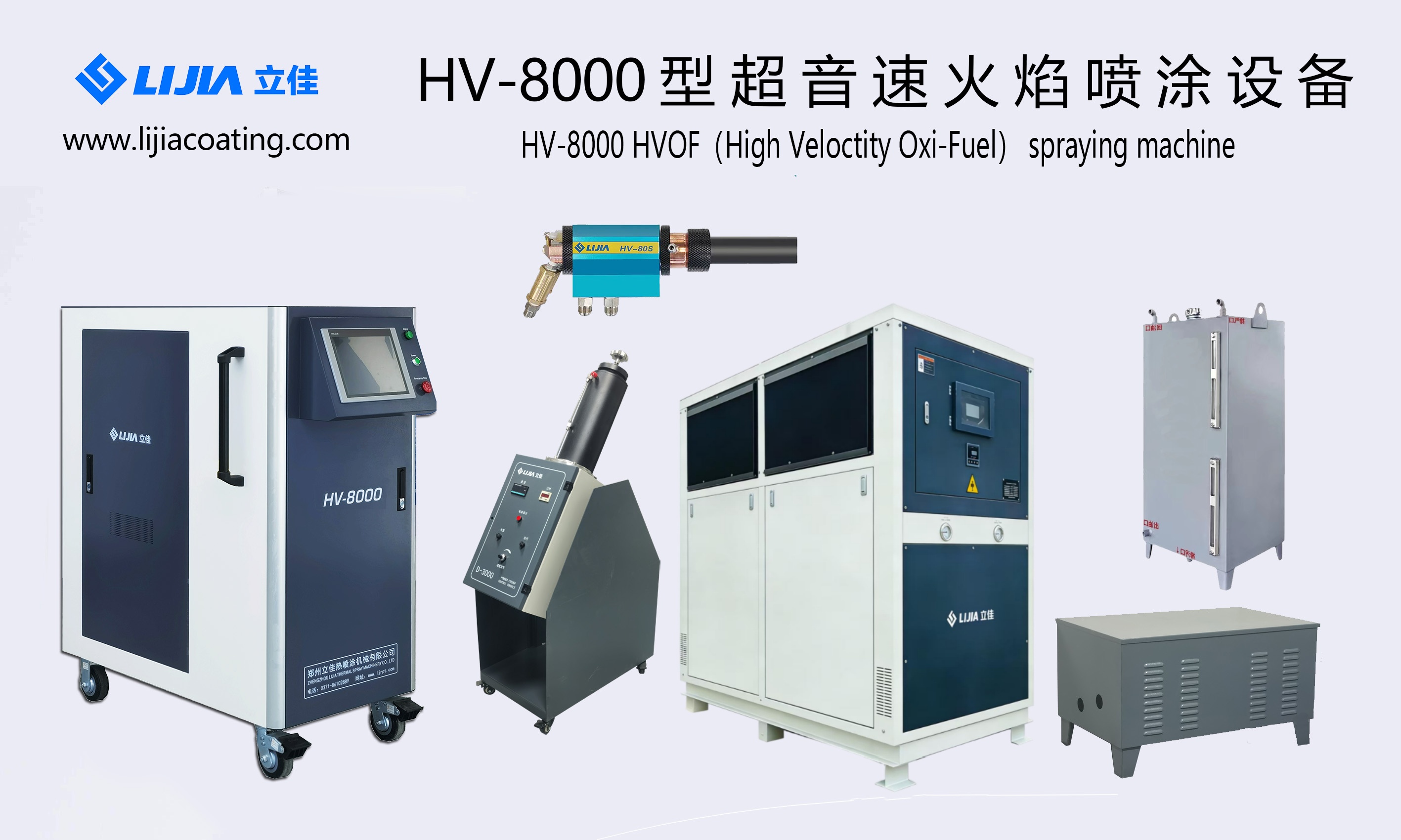

The HV-8000 supersonic flame spraying is a new type of HVOF system. It is a system that uses aviation-grade kerosene as fuel. Currently, it is one of the most popular kerosene-fueled equipment internationally. Since its launch, this equipment has continuously received unanimous praise from customers and has been widely used in the thermal spraying industry at home and abroad. Its basic principle is that the oxygen as the combustion-supporting agent fully atomizes the kerosene through the atomizing nozzle to form a combustible gas mixture that enters the combustion chamber. The ignition system ignites it to form high-temperature and high-pressure combustible gas. After ignition and combustion through the Laval nozzle, a high-temperature and high-pressure supersonic flame flow is formed. The powder feeding system sends powder materials from the low-pressure area into the flame flow. After heating and acceleration, they are sprayed onto the workpiece surface to form a high-quality coating.
The HV-8000 equipment panel settings are all operated through a touch screen. It has eight powerful function modules leading internationally. All kinds of common operations, information display, and fault alarms are all available. It conforms to users' operating habits, is simple and easy to use, and has stable quality.
Top 10 advantages of HV-8000 supersonic flame spraying equipment:
1. Touch screen operation, the equipment design structure adopts a full closed-loop automatic control structure, and the gas is all controlled by the mass flow controller, and the flow can be monitored in real time and automatically reach the process set value.
2. The fuel used is kerosene, and the accelerant is oxygen, which is the safest combustion mode in the current market;

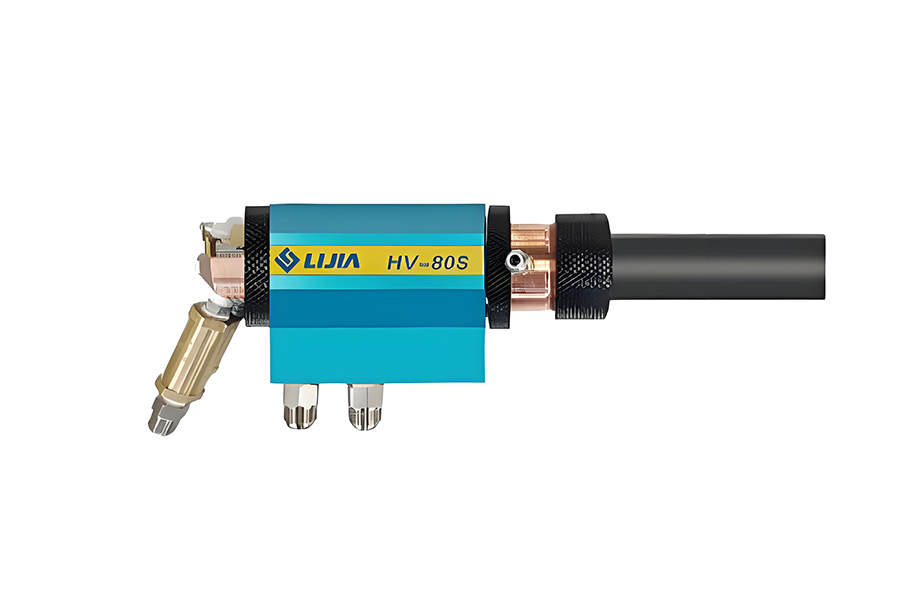

3. The structure of the spray gun is designed according to the principle of rocket generator, the maximum combustion chamber pressure is 150PSI, the flame flow speed is more than 2000m/s, and the output power is large and can be adjusted steplessly;
4. The spray gun adopts radial powder feeding, which makes the powder better dissolved and evenly distributed in the whole flame, which improves the covering efficiency and the quality of the coating;
5. With the function of process formula storage and call, the parameters can be added, modified, and saved up to 8000 sets of process parameters, which can be called at any time.
6. The system design locates the temperature range in a certain range, and takes the speed improvement as the main goal of structural optimization; The coating has high bonding strength, high coating density, and the surface stress is compressive stress;
7. The fuel flow of the system adopts full closed-loop design, modular design, high-performance PLC control, safe and simple operation;
8. Combustion design produces particles up to 1100 m/s (3300 to 3900 feet per second), which is faster than conventional HVOF;
9. The thickness of the spraying coating is greater than 10mm (compressive stress coating), and the microhardness is higher than that of any other HVOF system (HV-80S spraying WC-Co coating microhardness is up to 1450);
10. HV-8000 coating can reach 70MPa binding strength.
l Ensures complete combustion, preventing carbon deposit formation.
l The flame flow speed is stable and exceeds that of other brands, generating a more powerful jet force.
l Utilizes aviation kerosene as fuel and oxygen as combustible gas. With a high combustion temperature, the supersonic flame flow passes through the Laval tube seven times.
l Features a unique dual-channel waterway design for sufficient cooling, enabling continuous operation for 24 hours.
Item | Parameter
|
Flame speed | 2000m/s |
Flame temperature | 3000℃ |
Spray rate | 0-9.6kg/h(WC-CO) |
Powder particle velocity | |
Porosity | ≤1% |
Coating bonding strength | ≥70Mpa |
Spray powder particle size | -30+5μm,-38+10μm,-45+15μm |
Cooling method | Water cooling |
Cooling water flow rate | 2.3m³/h |

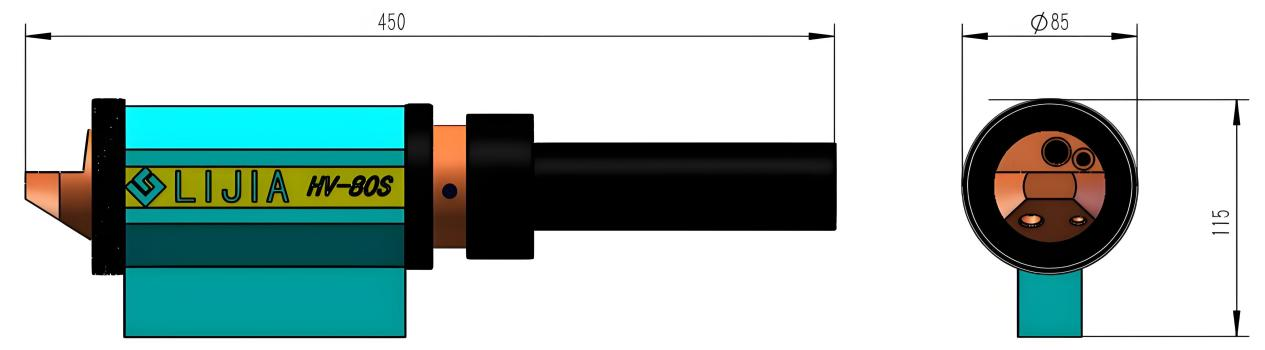

Size/Weight | 450*85*170mm, 4.5kg |

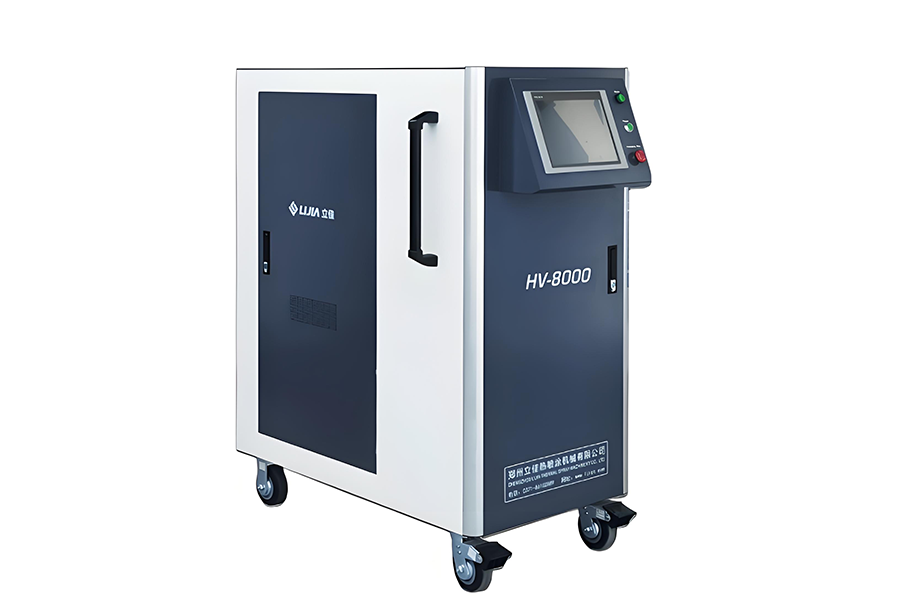

Fully imported core accessories, imported mass flow meter, full closed-loop system, high-performance PLC control;
Sturdy design, all imported valves, pressure switches, flow switches, sensors, quality and European and American equipment;
Touch screen operation, intelligent automatic operation;
Process parameters are clear at a glance on the touch screen panel;
One-button operation, which can realize the automation and real-time detection of the spraying process, 12 alarm prompts, and can respond immediately to system failures.
Item | Parameter
|
Input power supply | AC380/3P/50Hz±5% |
Input power | 5kw |
program control | Full closed-loop PLC control |
Interface control | 12-inch touchscreen |
Flow control | Full closed-loop control, mass flow controller |
Kerosene pressure | 1.2Mpa |
Kerosene flow rate | 0-12 GPH |
Kerosene flow control mode | Full closed-loop control valve imported from Germany |
Oxygen pressure | 1.6Mpa |
Oxygen flow rate | 0-2300 SCFH |
Oxygen flow control mode | Full closed-loop mass flow controller imported from Germany |
Carrier gas pressure | 0.1-0.3Mpa |
Carrier gas flow rate | 0-30L/min |
Carrier gas flow control mode | Full closed-loop mass flow controller imported from Germany |
Origin of main accessories | Germany, United States, Japan, Italy |

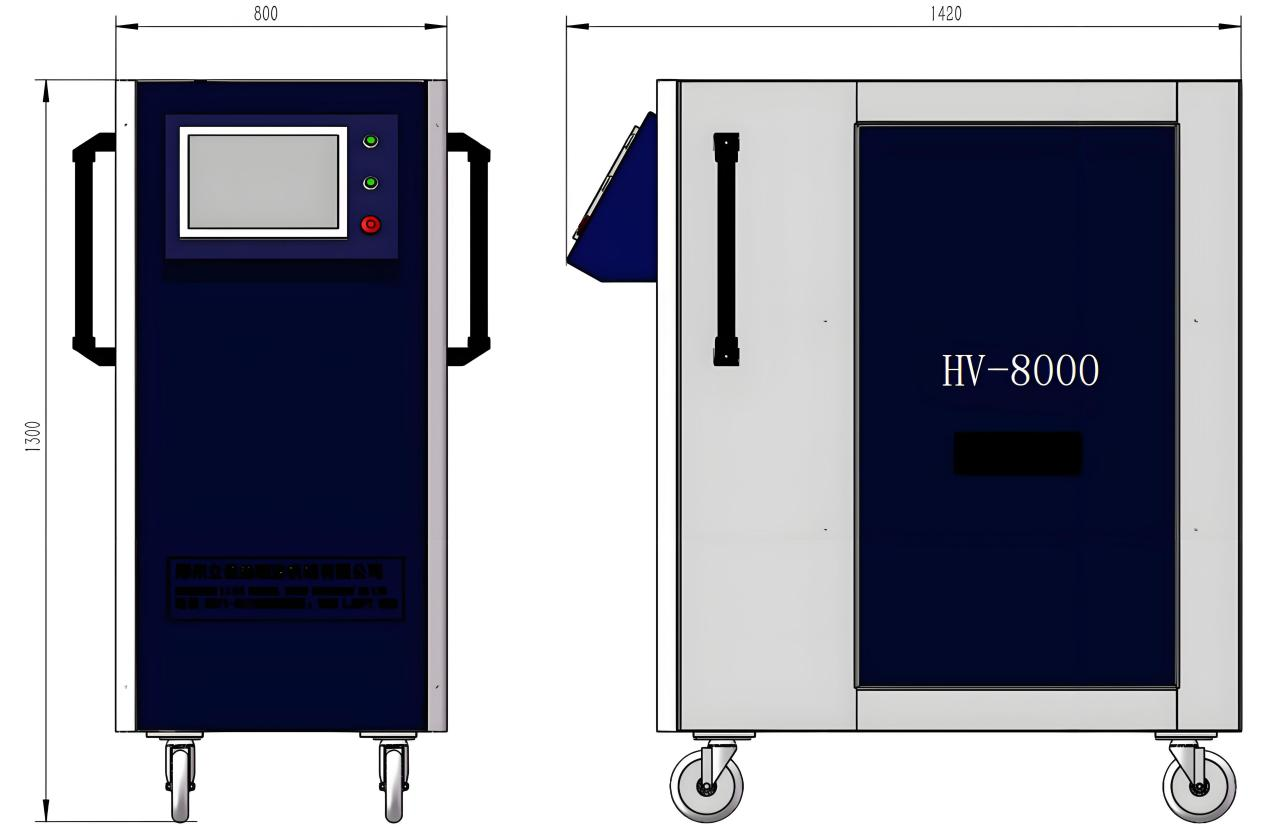

Size/Weight | 1300*800*1420mm, 210kg |

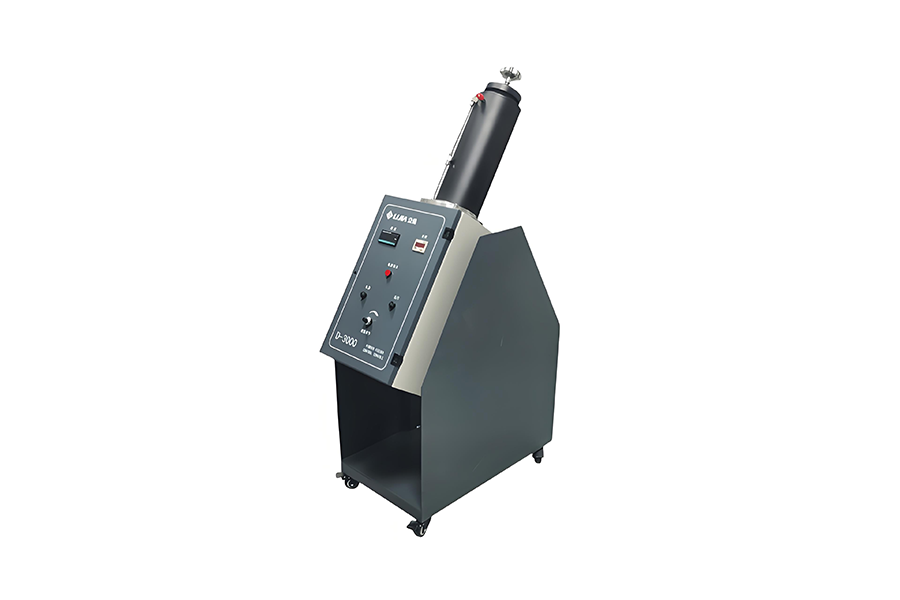

The powder feeder is a high-precision powder feeding mechanism that utilizes a metering disc for powder output. It ensures a uniform powder output and exhibits higher accuracy compared to scraper, screw, and vibrating conveying mechanisms.
By employing a small flow of nitrogen or argon as the powder feeding gas, the powder is transported to the powder outlet through the rotation of the bottom powder feeding tray. Subsequently, it enters the spray gun together with the powder feeding gas, resulting in greater gas savings than traditional high-pressure powder feeders.
The metering disc type powder feeder offers finer performance compared to the traditional double-barrel powder feeder, and it can handle a wider range of powder particle sizes.
This powder feeder adopts the latest inclined structure available worldwide, which facilitates powder cleaning. Additionally, it takes only 3 seconds to turn over the barrel and pour out the powder.
Item | Parameter
|
Input power supply | AC220V/2P/50Hz |
Input power | 0.2kw |
Powder delivery method | Metering discs |
Powder cleaning method | Barrel body flip type |
Powder drying function | Heater (optional) |
Powder cylinder mode | Monotube |
Self cleaning function | Yes |
Volume of powder storage cylinder | 3.5L |
Powder feeding gas | Nitrogen or argon |
Powder feeding pressure | 0.3-0.6Mpa |
Carrier gas flow rate | 3-15L/min |
Powder feeding speed | 0-220g/min |
Powder feeding accuracy | ±2% |
Powder size | 5-150μm |

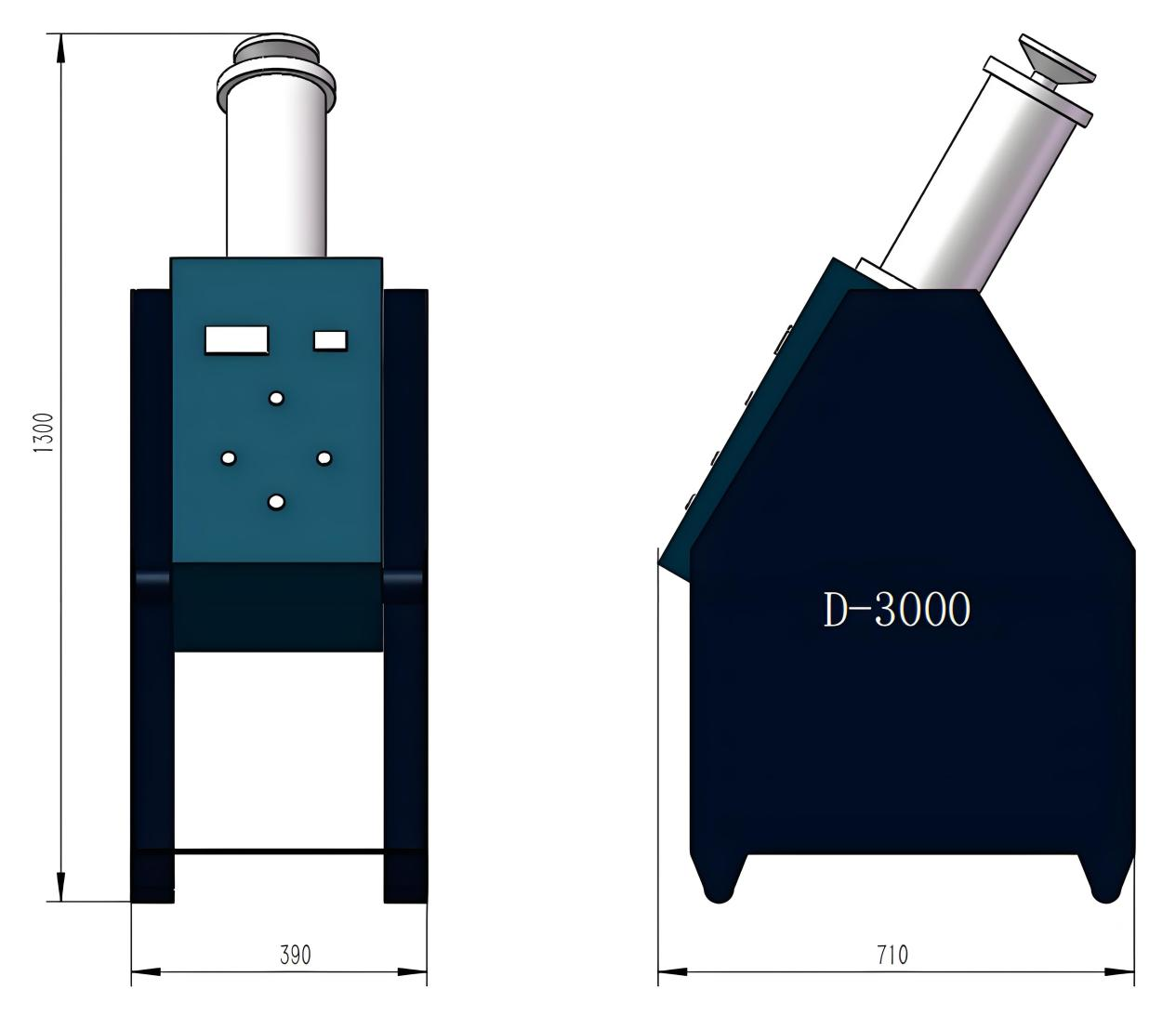

Size/Weight | 710*390*1300mm, 75kg |

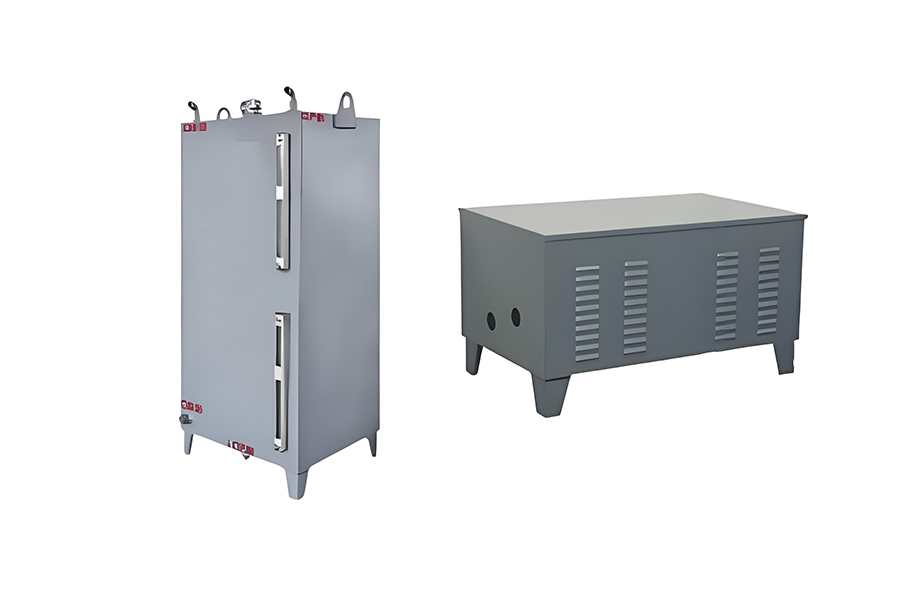

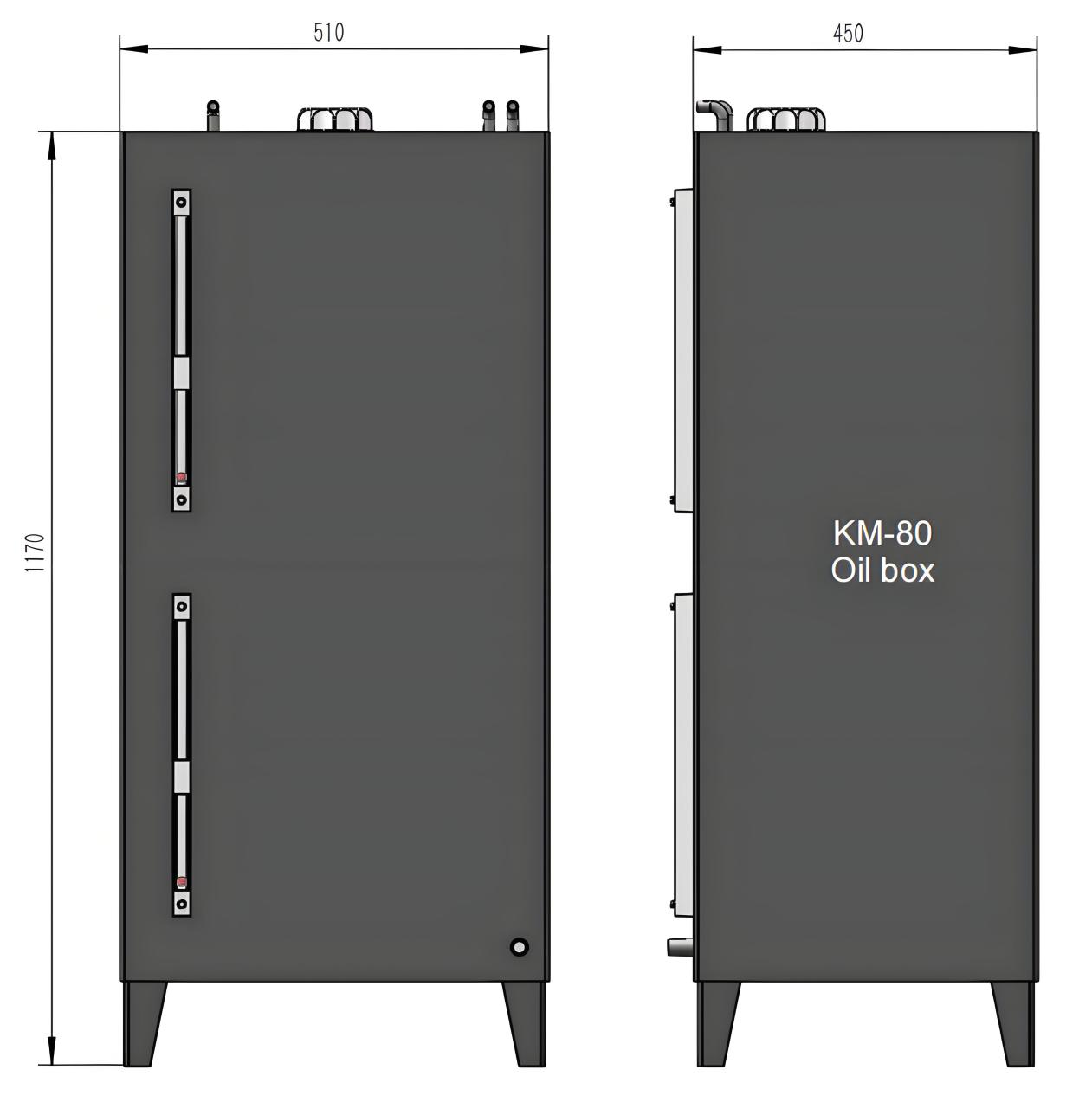

For the equipment supporting the storage and delivery of aviation kerosene to the equipment, the use of South Korean imported motors, Taiwan constant pressure oil pump, after hundreds of customers to verify the use, stable and reliable, than other manufacturers used pulse diaphragm pump has more stable pressure and flow, the flame flow is very stable.
Project | Parameter
|
Input power supply | AC380V/3P/50Hz |
Input power | 750W |
Volume | 200L |
Kerosene management | Circulating conveying+stable oil presser(1.3Mpa) |
Supporting components | Oil inlet and outlet pipes |
Oil pump motor and oil pump head | World renowned brands |
Oil pump size/weight | 800*500*450mm, 55kg |

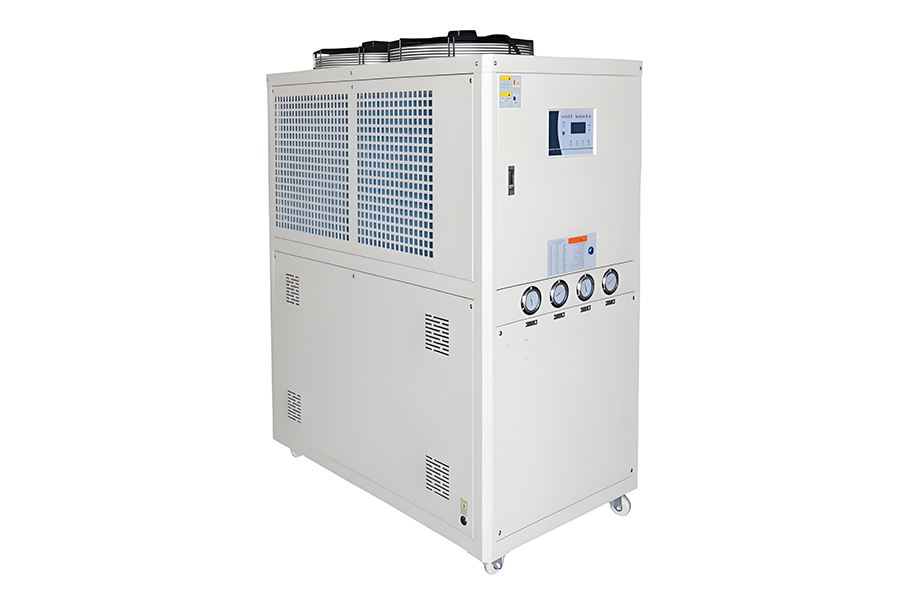

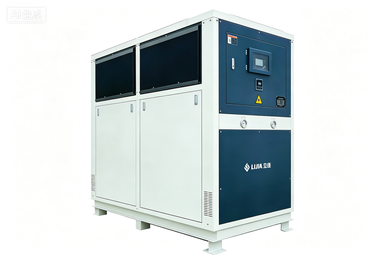

The system employs an internationally advanced fully enclosed scroll compressor, integrating the motor and compression chamber to eliminate shaft seal leakage.
The flexible design of the compressor results in exceptionally low noise levels.
With an integrated design, simply connecting the power supply and water pipe enables the unit to operate.
The heat exchanger utilizes imported high-efficiency heat exchange copper tubes, ensuring high heat exchange efficiency.
Temperature is controlled by a digital controller, providing a high degree of automation.
The unit automatically detects water temperature or return water temperature and controls the compressor switch through the controller. It also automatically adjusts the cooling capacity of the unit, making operation more energy-efficient.
A fault reminder is available, facilitating quick judgment of unit failures by personnel.
The unit offers a trouble-free operation time of 80,000 hours.
Maintenance costs are extremely low.
Item | Model/Specification | |||||
DX-30AD | ||||||
Standard cooling capacity | K cal/hr | 77236 | ||||
kw | 89.81 | |||||
Total input power | kw | 33.7 | ||||
Powder | 3N-380V-50HZ | |||||
Refrigerant | Name | R22 | ||||
Control mode | Expansion valves | |||||
Compressor | Type | Fully enclosed scroll type | ||||
Efficiency | kw | 11.3KW*2 | ||||
Condenser | Type | Fin type | ||||
Cooling air volume | m3/h | 30000 | ||||
Evaporator | Type | Stainless steel plate changeable | ||||
Frozen water volume | m3/h | 16 | ||||
Inlet and outlet water pipe diameter | G2-1/2″ | |||||
water pump | power | kw | 2.2 | |||
pressure | Kpa | 220 | ||||
Head | M | 20 | ||||
water pump | power | kw | 2.2 | |||
Flow rate | M3/H | 4 | ||||
pressure | Kpa | 950 | ||||
Head | M | 95 | ||||
Security | Compressor overheat protection, overcurrent protection, high and low pressure protection, over-temperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, anti-freeze protection. | |||||
Temperature control range | Adjustable from 5°C to 25°C | |||||

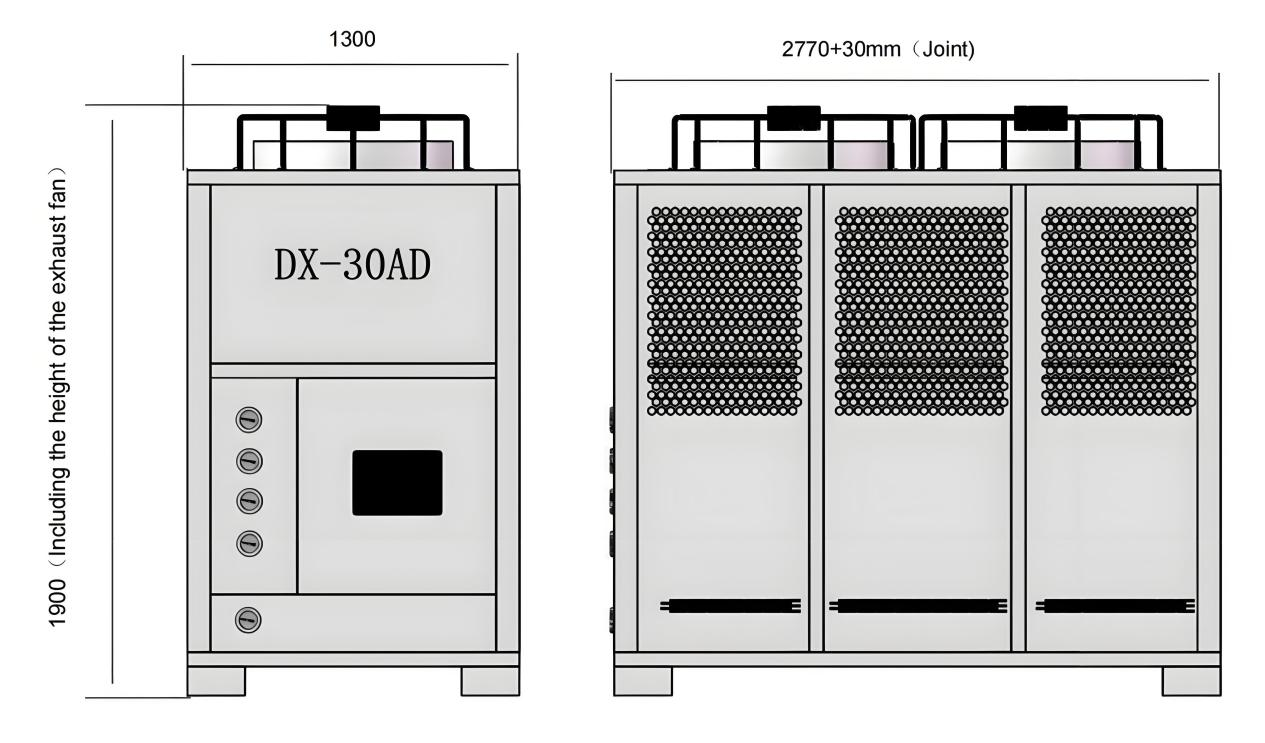

Dimensions | L | mm | 2770+30mm(Connector) | |||
W | mm | 1280 | ||||
H | mm | 1900 (including exhaust fan height) | ||||
Weight | KG | 930 | ||||
Explanation | 1. The minimum outlet temperature can be adjusted to 5 degrees Celsius | |||||
2. The medium on the freezing side of the unit must be water |
Automotive Manufacturing: It can be used to prepare wear - resistant and corrosion - resistant coatings on automotive parts such as pistons and synchronizer rings. This improves the service life and performance of these parts, thus enhancing the reliability and durability of the entire vehicle.
Machinery Manufacturing: Applied to the repair and surface strengthening of general mechanical parts like small shafts and shaft sleeves. It enhances their properties such as wear resistance and corrosion resistance, reduces the frequency of part replacement, and cuts down production costs.
Solar Energy Industry: Used to prepare high - temperature oxidation - resistant coatings, which helps improve the efficiency of solar energy conversion, extend the service life of solar energy equipment, and reduce maintenance costs.
Lithium - battery Industry: By preparing corrosion - resistant coatings, it improves the safety and service life of lithium - batteries, minimizing performance degradation and potential safety hazards caused by corrosion.
Coat the turbine blades of engines to improve the high - temperature resistance and reliability of the blades, ensuring the safe operation of aircraft in harsh environments such as high - temperature and high - pressure conditions.
Provide wear - resistant coatings for various industrial equipment, enhancing the durability and efficiency of the equipment. This reduces downtime for maintenance due to wear, thus improving production efficiency.
For mechanical parts operating in corrosive environments, prepare anti - corrosion and wear - resistant coatings to extend the service life of the equipment and reduce the costs of equipment maintenance and replacement.
Prepare special functional coatings such as high - temperature resistance and wear resistance for parts of metallurgical machinery and equipment, improving their performance and lifespan in high - temperature and high - wear environments.
After thermal spraying treatment, the key engine parts of transportation tools such as ships and electric locomotives can effectively resist high - temperature wear and corrosion, improving the reliability and safety of these vehicles.
For steel - structure bridges, sluice gates of hydropower stations, etc., apply thermal spraying of zinc, aluminum, or zinc - aluminum alloy coatings as long - term protective coatings to prevent the corrosion of steel structures in water, air, and other environments.
In light - industry machinery such as high - speed textile machinery and printing machinery, the metal coatings prepared by the thermal spraying process have better wear resistance and a longer service life, reducing equipment repair and replacement costs.
Applied to the surface treatment of implants such as artificial joints, surgical instruments, catheters, and stents, as well as diagnostic equipment, to improve their biocompatibility, wear resistance, and corrosion resistance.
Press the activation button in the touch - screen control panel window.
Wait for about 5 seconds to allow the pipelines inside the spray gun to circulate. Then click the start button. Once the operation indicator light turns on, the console will automatically start the program as follows:
a. Cooling water ON
b. Powder - feeding carrier gas ON
c. Ignition system ON
d. Small - flow oxygen ON
e. Small - flow fuel ON
f. After a few seconds of delay
g. Stand - by flow oxygen ON
h. Stand - by amount of fuel ON
Press "Rise to Run" to increase the oxygen and fuel flow rates to the set values.
Depending on the type of powder being sprayed, the flow rates of oxygen and fuel can be precisely adjusted on the console to obtain a slender cylindrical supersonic flame with 5 - 12 Mach segments.
Click "Powder Feeding" to start the powder - feeding spraying operation.
Shutdown operations:
a. Click "Powder Feeding" again to turn off powder feeding. After waiting for 5 seconds, press the stop - running button. The oxygen and fuel flow rates will gradually decrease according to a linear proportional relationship until the flame of the spray gun goes out.
b. For emergency shutdown, directly press the emergency stop (total stop) button.
Q: Do you provide installation services?
A: We can offer installation guidance and support. If required, we can also dispatch technicians to your site for installation and commissioning, but this will incur an additional charge.
Q: What are the payment terms?
A: We usually accept payment by Telegraphic Transfer (T/T). We can also discuss other payment methods according to your needs. A certain percentage of the payment may be required as a deposit before production, and the balance should be paid off before shipment.
Q: How about the quality of your coatings?
A: The thickness of our sprayed coatings is greater than 10mm (compressive stress coatings). The microhardness is higher than that of any other HVOF systems. The HV - 8000 coating can achieve a bonding strength of 70MPa.
