Soundproof Room For Thermal Spraying For Plasma Spray

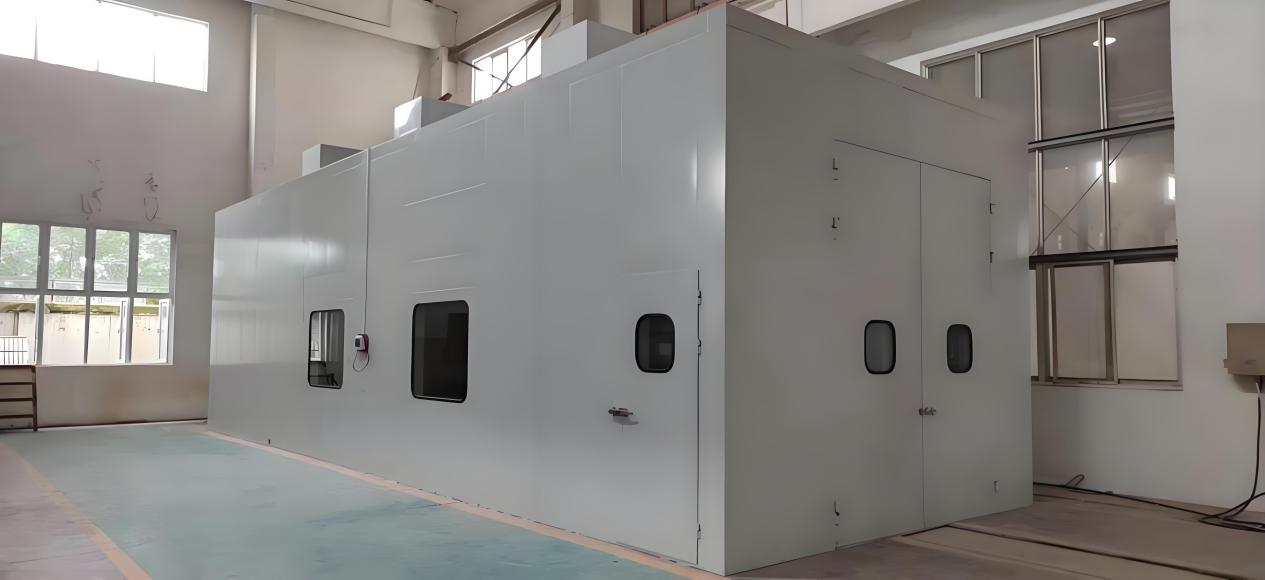

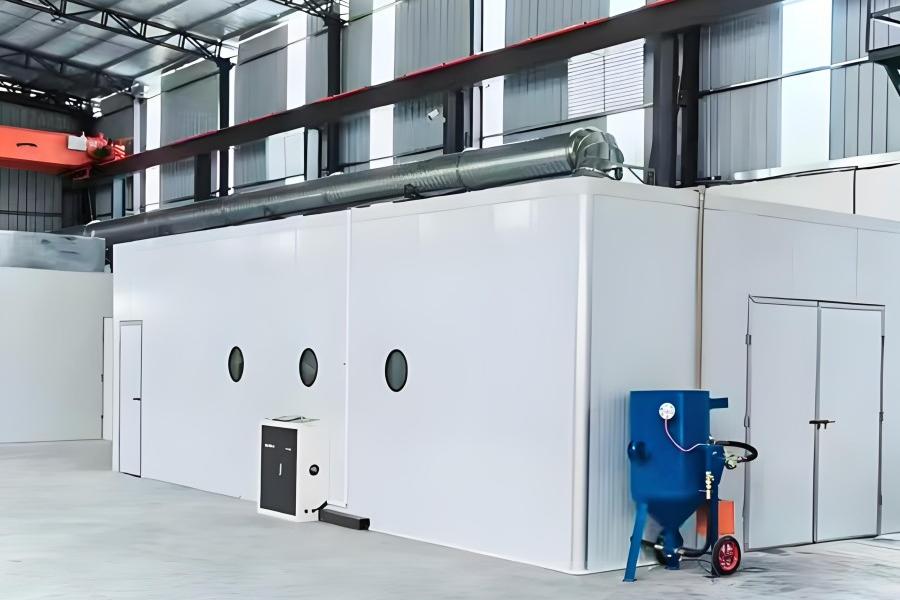

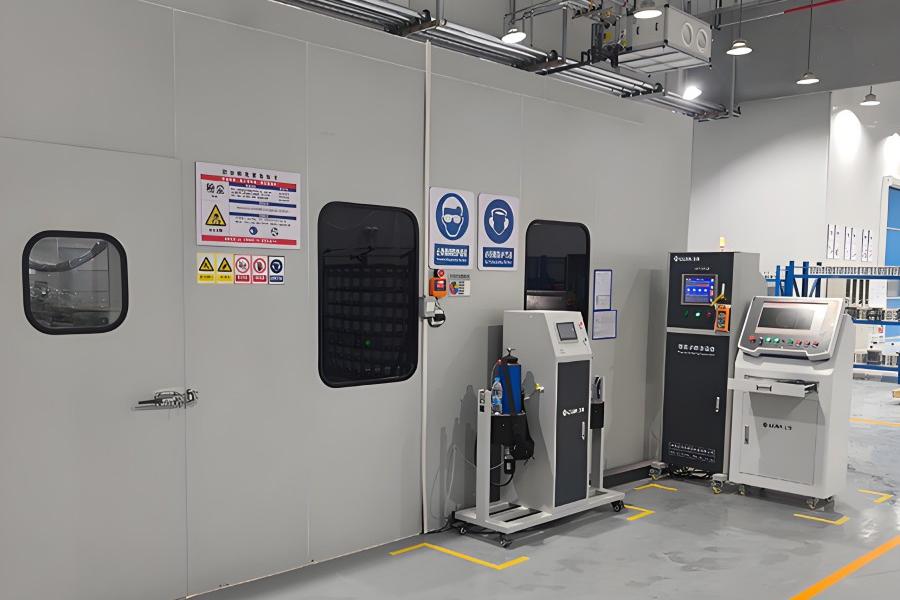

Soundproof spraying room

According to the acoustic principle, the noise generated during spraying is controlled in the room to prevent the staff outside the room from being injured by noise pollution. After the establishment of the soundproof room, the noise emission in the operation area is lower than the "Noise Hygiene Standard for Industrial Enterprises" stipulated by the state.

The soundproof room is composed of four corner steel columns, wall panels, roofs, upper and lower grooves, corners, gap seals, etc., which not only ensures the sound insulation and overall rigidity of the room, but also pays special attention to the beauty of the appearance and thoughtful details.

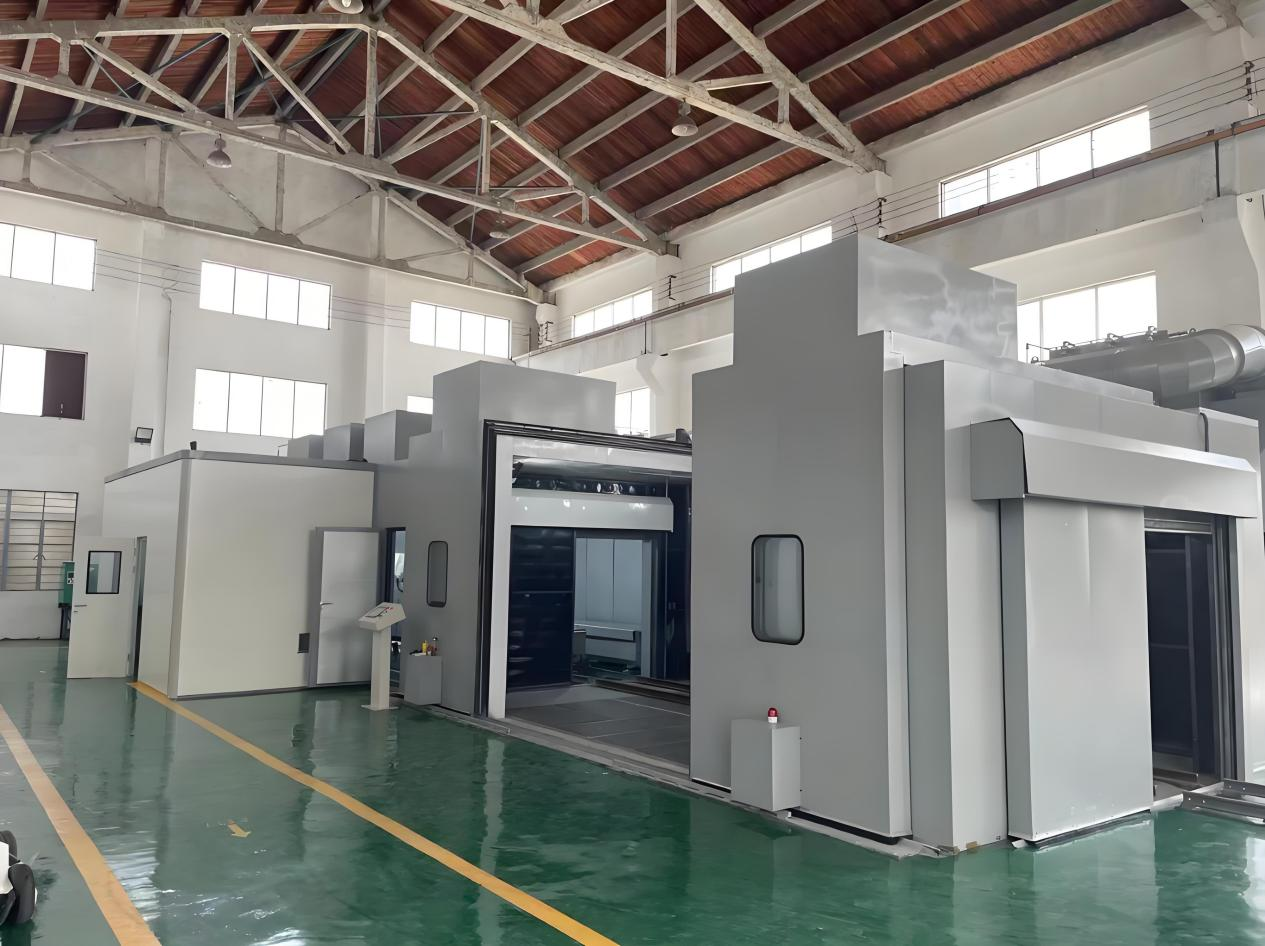

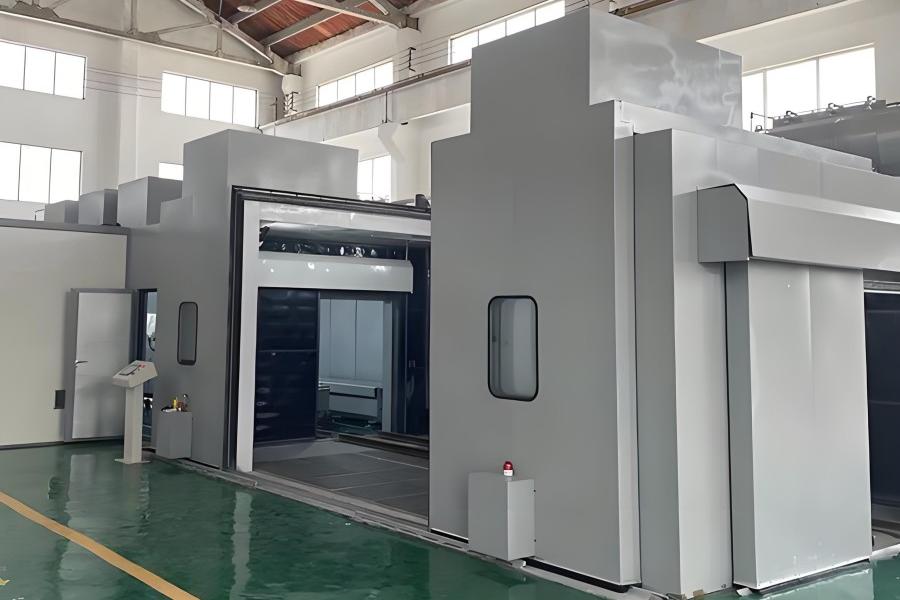

L-shaped spraying soundproof room

The design of this spraying soundproof room project follows the following principles:

1. Strictly implement relevant national industry standards and general technical specifications;

2. The selected technologies are mature and reliable technologies, and have been successfully used, without any test components;

3. Design to meet the actual production process needs of customers;

4. Combined with our company's many years of professional experience and the structural characteristics of the workpiece itself, in line with the purpose of meeting the needs of users, the design and production focus on equipment stability, safety, environmental protection and energy saving;

5. People-oriented, fully from the perspective of the actual operation of operators and maintenance personnel, comprehensively consider the stability of equipment and the convenience of maintenance and maintenance.

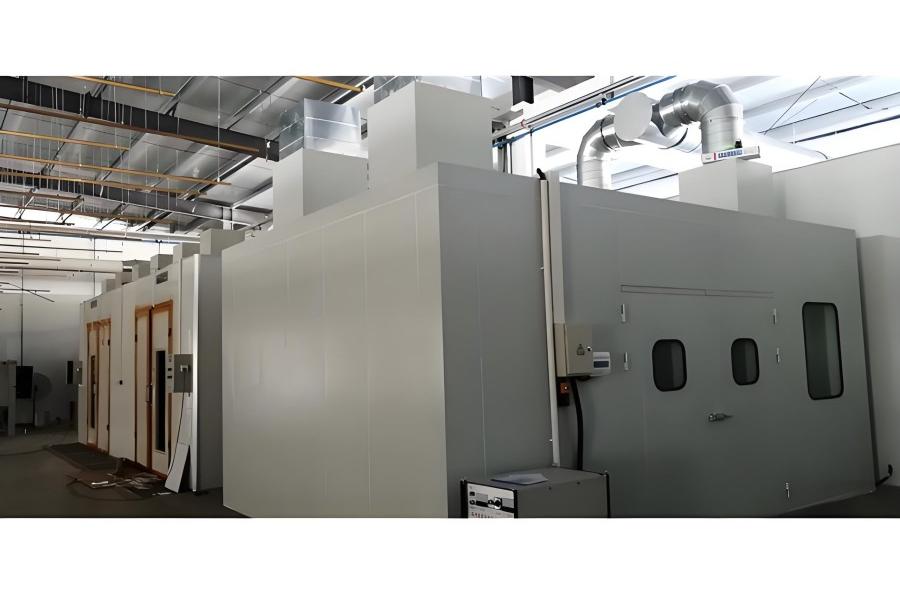

Double-deck spraying booth

Double-layer thickened 380mm sound insulation panel, reduced to less than 75 decibels

The structure of the plate group is: 160mm thickness of the exterior wall panel, 2.0mm thick white sprayed steel plate, middle fill damping layer, asbestos board, double-layer 100Kg/m3 high solubility heavy sound absorbing cotton, waterproof and dustproof sound permeable film, metal porous sound absorbing board (perforation rate 25%), 50-60mm thickness air sound insulation layer in the middle, 160mm thickness of 2.0mm thick steel plate of interior wall panel, middle fill damping layer, asbestos board, double layer 100Kg/m3 high soluble heavy sound absorbing cotton, waterproof and dustproof sound permeable film, Metal porous acoustic absorbing board (perforation rate 25%). The total thickness is 380mm, and the sound insulation board is supported by the strength of the welded and arranged tic-tac-toe steel frame, and then pressed and formed, and the sound insulation board is smooth and scraped inside and outside, and the surface is bright and beautiful.

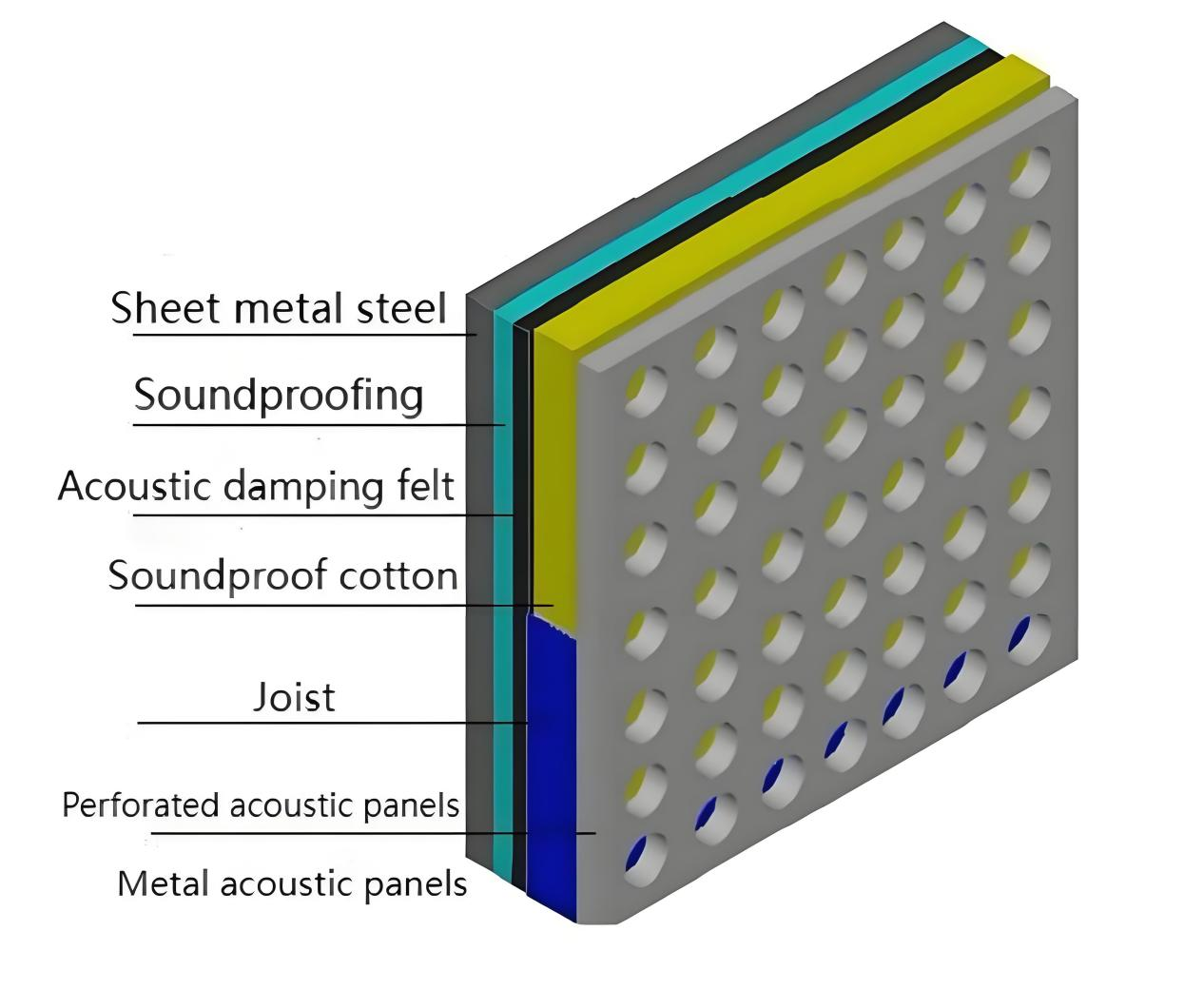

Acoustic panels

The structure of the plate group is: the outer wall is 2.0mm thick white sprayed steel plate, the middle filling damping layer, the asbestos board, the double-layer 100Kg/m3 high-solubility heavy sound-absorbing cotton, waterproof and dustproof sound-permeable film, and the inner wall is a metal porous sound-absorbing board (punching rate of 25%). The sound insulation board is supported by the welded tic-tac-toe steel frame for strength, and then pressed into shape, and the sound insulation board is smooth and scraped inside and outside, and the surface is bright and beautiful.

The standard panel is 970mm wide and 140mm thick, and the length can be determined by the required height of the room. The sound insulation board has been tested by noise (the tested sample does not put gypsum board), and the air sound insulation in the sound frequency range of 125~4000Hz is 42dB (A). At present, the sound insulation of the sound insulation board after adding PDF glass fiber board is larger, and the sound insulation board is assembled by a special thickened steel plate, and the cement is plugged to prevent sound leakage in the gap;

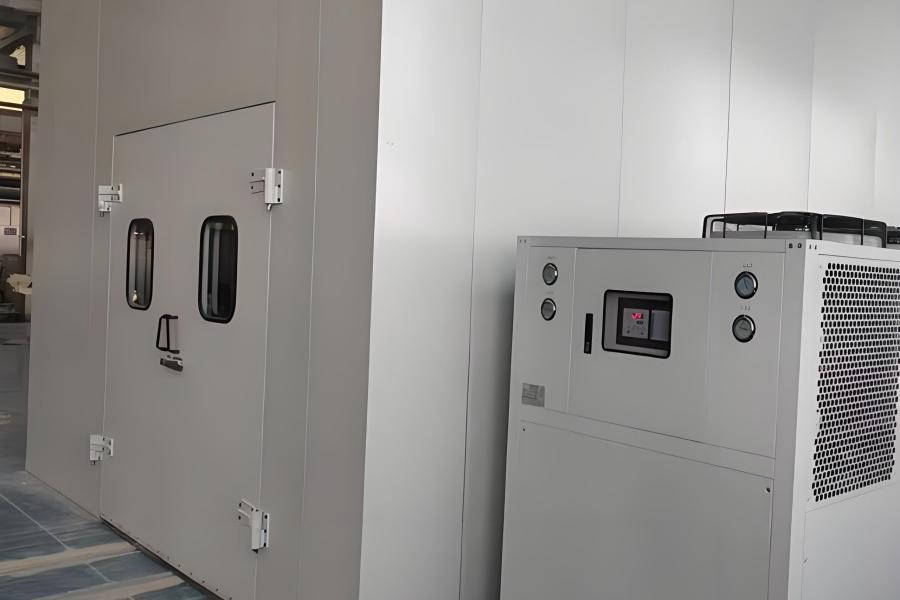

Acoustic doors

We design the soundproof door for the workpiece to enter and exit with a stepped sealing structure, the sound goes through the stepped structure to achieve the purpose of noise reduction, and the door is sealed with a sealing strip, which plays a sealing role when the door is opened and closed, reducing the leakage of sound.

Soundproof windows

Observation windows are provided on the soundproof wall panels and soundproof doors, and the observation windows are made of transparent tempered glass, and the number of observation windows on the soundproof panels is specified by the owner. The specification of the observation window is: 700*1000 (H)mm, which is a two-channel double tempered glass structure; The specification of the observation window on the soundproof door is: 400*400 (H)mm, and its sound insulation is basically equivalent to that of the wallboard.

Intake and exhaust mufflers

In order to meet the needs of indoor dust extraction and air suction, the spraying room is equipped with air inlet muffler and exhaust muffler to keep the indoor negative pressure balanced. While the airflow passes through the muffler, the indoor noise is absorbed by the muffler. Prevent noise from spreading outward through the air intake.

Automotive manufacturing industry

Automobile body and parts spraying: Ensures the appearance quality and coating uniformity, reduces noise pollution and the harm of harmful substances.

Machinery manufacturing field

Spraying of large - scale mechanical equipment casings and precision parts: Guarantees the coating quality, adhesion and durability, controls noise, and provides a fine spraying environment.

Aerospace industry

Spraying of aircraft fuselages, components and engine blades: Ensures high - quality coating adhesion, meets environmental protection and safety requirements, and improves the service life and reliability of the blades.

Shipbuilding industry

Spraying of ship hulls and internal facilities: Ensures the coating quality, extends the service life, reduces environmental pollution, and safeguards the health of crew members.

Furniture manufacturing industry

Spraying of wooden and metal furniture: Restricts paint mist and harmful gases, handles ventilation, reduces noise, and ensures the coating quality.

Electronic equipment manufacturing industry

Spraying of electronic product casings: Ensures uniform and smooth coatings, reduces noise interference, and maintains a clean and quiet environment.

Product Operate Guide

I. Pre - operation Preparation

(1) Before entering the spraying booth, check if there is any damage to the booth structure (walls, doors, and windows). Repair any damaged parts promptly. Examine the connection and sealing of the spraying equipment (spray guns, pipelines, pressure tanks), and confirm that the equipment parameters are suitable for the task. Check the operation, blockage, cleanliness, and noise - reduction conditions of the ventilation system (fans, pipelines, filters, mufflers).

(2) Clean the inside and outside of the spraying booth, removing dust and debris. Keep the surrounding passages unobstructed and avoid piling up miscellaneous items.

(3) Select the coating according to the workpiece requirements, check its quality, and process it as needed. Prepare auxiliary materials such as diluents and mix them in proportion. Operate in a well - ventilated area and make proper markings.

(4) Operators should wear protective work clothes, gas masks, gloves, and earplugs.

II. Spraying Operation Procedures

Move the workpiece into the booth and fix it with a clamping device to prevent surface damage and ensure that all spraying surfaces can be covered.

Adjust the parameters of the spraying equipment (pressure, flow rate, distance between the spray gun and the workpiece, angle) and the ventilation system (ventilation volume, time) according to the coating and workpiece conditions.

Turn on the coating delivery system to circulate the coating. Hold the spray gun and spray according to the preset route and parameters. Keep the moving speed and distance of the spray gun stable. Pay attention to the interval between multiple - layer spraying, observe the effect, and adjust the parameters in a timely manner.

III. Post - operation Handling

After spraying, first turn off the coating delivery system to let the remaining coating in the spray gun flow back, and then turn off the power source. Shut down the ventilation system and close the door for a while to allow harmful gases to disperse naturally.

Disassemble and clean the spray gun and pipelines, and use solvents to remove the coating residues. Clean the paint on the floor, walls, and clamping devices inside the booth, properly dispose of waste, check, and replace the filters of the ventilation system as needed.

Remove the workpiece, dry and cure it according to the coating requirements. Inspect the appearance of the workpiece coating (flatness, presence of bubbles, sagging, color) and its physical properties (adhesion, hardness).

Record the spraying date, time, workpiece and coating information, equipment parameters, problems, and solutions.

Q: Can the ventilation system effectively exhaust paint mist and harmful gases? Will there be any residue?

A: The ventilation system we equipped is carefully designed. The fans are of high-power and large-air-volume models, the ventilation ducts are reasonably laid out, and high-efficiency filters are installed. Under normal operating conditions, it can exhaust paint mist and harmful gases, such as formaldehyde and benzene, in a timely and thorough manner, ensuring that the concentration of harmful gases in the booth is always kept below the safety standard without obvious residue, safeguarding the health and safety of operators.

Q: What standard specifications are available for selection? If my workpiece has special dimensions, can it be customized?

A: We have a professional design team that can customize the soundproof spraying booth according to the detailed dimensions of your workpiece and spraying process requirements to ensure a perfect fit for your production needs.

Q: Is the subsequent operation cost of using this soundproof spraying booth high?

A: The subsequent operation cost mainly includes aspects such as energy consumption and consumable replacement. In terms of energy consumption, the ventilation system and some temperature control devices are the main energy-consuming parts, but our products use energy-saving equipment, and the power consumption is within a reasonable range during normal operation. In terms of consumables, such as filters and vulnerable parts of spray guns, the replacement cycle is relatively long and the cost is controllable. Overall, compared with the improvement in production efficiency it brings, the subsequent operation cost is not high and can create a good cost performance for your enterprise.
