Thermal spray technology has revolutionized surface engineering, offering solutions for wear resistance, corrosion protection, and thermal insulation. By applying coatings to substrates, it enhances the performance and lifespan of critical industrial components. The choice of feedstock material plays a crucial role in this process, influencing coating properties and quality.
In this article, we will explore the different feedstock materials used in thermal spray, how they affect coating performance, and the factors to consider when selecting them. You’ll learn how these materials contribute to the success of thermal spray in various industries.
Thermal spray is a process where feedstock materials (such as powders, wires, rods, or liquids) are heated to a molten state and sprayed onto a surface at high speed, forming a coating. The materials used can vary from metals and alloys to ceramics and polymers, each offering unique properties.
Thermal spray allows coatings to be applied without changing the base material’s properties. It’s versatile, suitable for different component shapes and sizes. For example, turbine blades use thermal spray to resist high temperatures and wear, while medical implants use biocompatible materials for better body integration. This process also minimizes material waste, making it ideal for modern manufacturing.
Thermal spray coatings provide several key benefits that enhance the performance and longevity of industrial components. Below is a table summarizing these benefits:
Benefit Type | Material Examples | Applications | Detail |
Wear Resistance | Tungsten Carbide | Aerospace, Automotive | Protects surfaces from wear, increasing the longevity of components. |
Corrosion Protection | Zinc, Aluminum | Construction, Marine | Protects metals from rust and corrosion, particularly in harsh environments. |
Thermal Insulation | Yttria-Stabilized Zirconia (YSZ) | Gas Turbines, Jet Engines | Used for thermal barrier coatings, insulating components from extreme temperatures. |
Feedstock materials are the starting materials used in thermal spraying. They can be in the form of powders, wires, rods, or liquids and are made from metals, alloys, ceramics, polymers, or composites. The choice of material depends on the required coating properties, the application, and environmental conditions.
Feedstock materials are selected to improve the durability of surfaces exposed to wear, heat, or corrosion. For example, nickel-based alloys are used for wear-resistant coatings, while ceramics are ideal for thermal barrier coatings in high-temperature environments.
Thermal spray materials can be classified into several categories:
● Metals and Alloys: Common examples include zinc, aluminum, and nickel alloys. These are frequently used for corrosion protection and wear resistance. For instance, aluminum coatings are widely used for corrosion protection on steel.
● Ceramics: Ceramics like alumina, zirconia, and chromium oxide are known for their high-temperature resistance and wear resistance. Yttria-stabilized zirconia is a popular material for thermal barrier coatings, often used in turbines and jet engines where high heat resistance is critical.
● Polymers & Composites: Used in applications requiring flexibility and chemical resistance, such as coatings for medical implants and food processing equipment. Polymers provide an additional layer of protection against environmental factors while maintaining the integrity of sensitive substrates.
● Carbides & Cermets: Tungsten carbide and chromium carbide are key materials for wear-resistant coatings, often used in harsh industrial environments such as mining and aerospace. These materials combine the hardness of ceramics with the toughness of metals, making them ideal for applications where both durability and strength are needed.
Each material is chosen based on the specific application requirements, such as thermal resistance, mechanical strength, and chemical compatibility.
The size and shape of feedstock particles affect coating quality. Smaller particles result in finer coatings with better adhesion, while larger particles may lead to thicker, more porous coatings. Spherical powders are often preferred for uniform coatings, while angular powders offer higher packing density but may result in rougher surfaces.
The melting point of feedstock materials must align with the spray process. High-melting-point ceramics require processes like plasma spraying, while metals with lower melting points are suited for flame spraying. Choosing the right process ensures optimal melting and adhesion.
Materials prone to oxidation, such as titanium and nickel alloys, need careful handling. Processes like vacuum plasma spraying or cold spraying are used to prevent oxidation, maintaining the integrity of materials and ensuring coating performance.
Factor | Impact |
Particle Size | Smaller particles create finer coatings with better adhesion. |
Melting Point | High melting point materials require high-temperature processes. |
Oxidation Sensitivity | Materials prone to oxidation need careful handling during spraying. |
For wear and corrosion applications, materials like tungsten carbide (WC) and chromium oxide are ideal. These materials offer excellent resistance to abrasion and corrosion, making them perfect for harsh environments such as mining and marine settings. Tungsten carbide coatings are commonly used on cutting tools and machinery to protect against wear and erosion.
In high-temperature environments like jet engines and gas turbines, coatings must withstand extreme heat. Yttria-stabilized zirconia (YSZ) is commonly used for thermal barrier coatings due to its low thermal conductivity. Nickel-based alloys also perform well, providing resistance to oxidation and thermal fatigue, particularly in aerospace components.
For medical applications like implants and prosthetics, biocompatible materials such as hydroxyapatite, zirconia, and titanium are essential. These materials promote better integration with the body and can also reduce the risk of infection by preventing bacterial growth. Titanium, for example, is widely used in dental implants and joint replacements due to its strength and compatibility with human tissue.
Application | Preferred Materials | Key Benefits |
Wear and Corrosion Resistance | Tungsten Carbide, Chromium Oxide | Excellent abrasion and corrosion resistance |
High-Temperature Coatings | Yttria-Stabilized Zirconia (YSZ), Nickel Alloys | Low thermal conductivity, oxidation resistance |
Biocompatibility | Hydroxyapatite, Zirconia, Titanium | Promotes body integration, prevents infection |
There are several thermal spray processes, each with its own strengths and weaknesses. Below is a summary of the most common processes:
Process Type | Description | Advantages | Disadvantages |
Flame Spray | Cost-effective, used for corrosion protection and dimensional restoration. | Cost-effective, suitable for less critical applications. | Higher porosity and lower bond strength compared to other processes. |

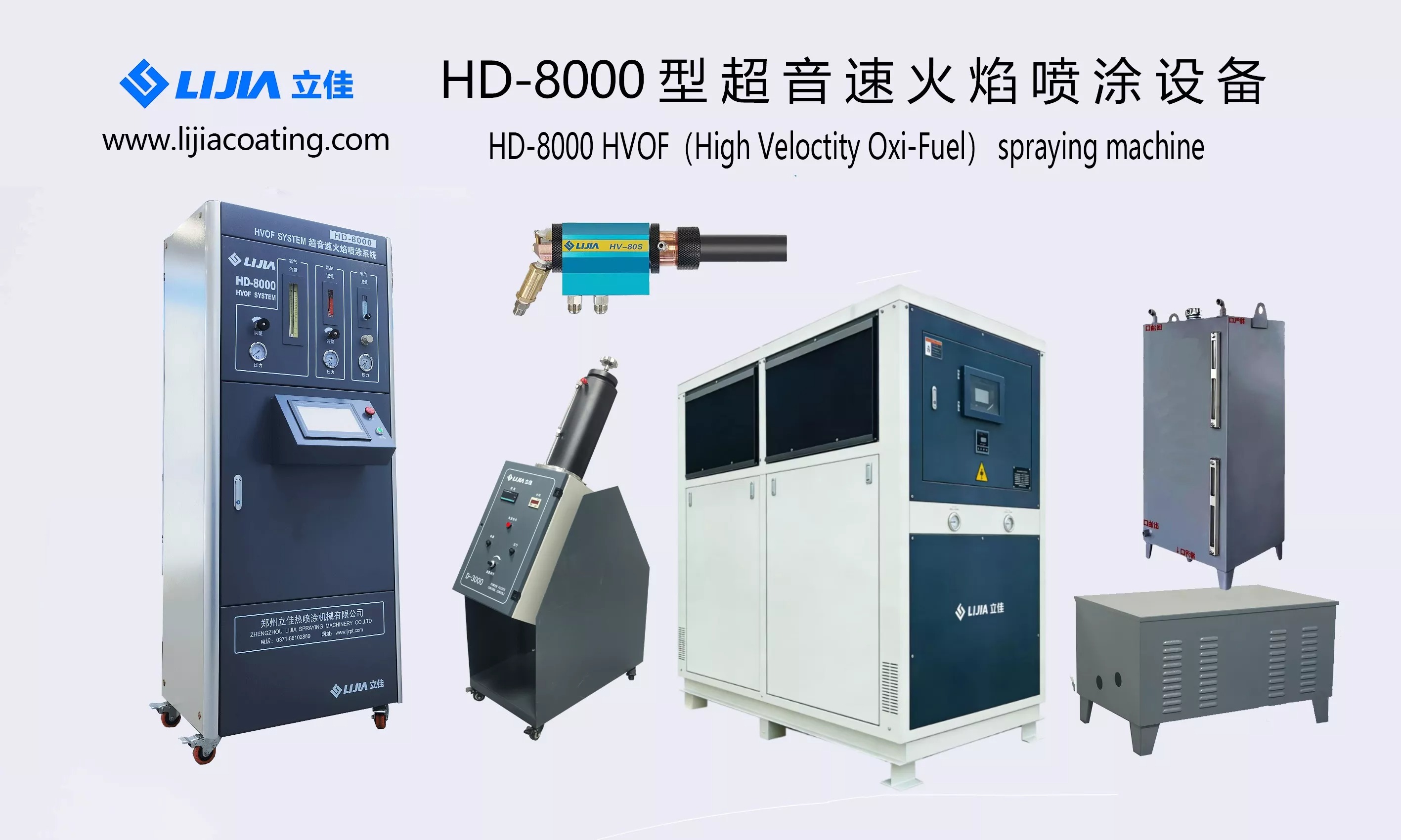

HVOF (High-Velocity Oxygen Fuel) | Generates high particle velocity, ideal for wear-resistant coatings. | High bond strength and density, ideal for durability. | Requires high particle velocity, which may not be suitable for all materials. |

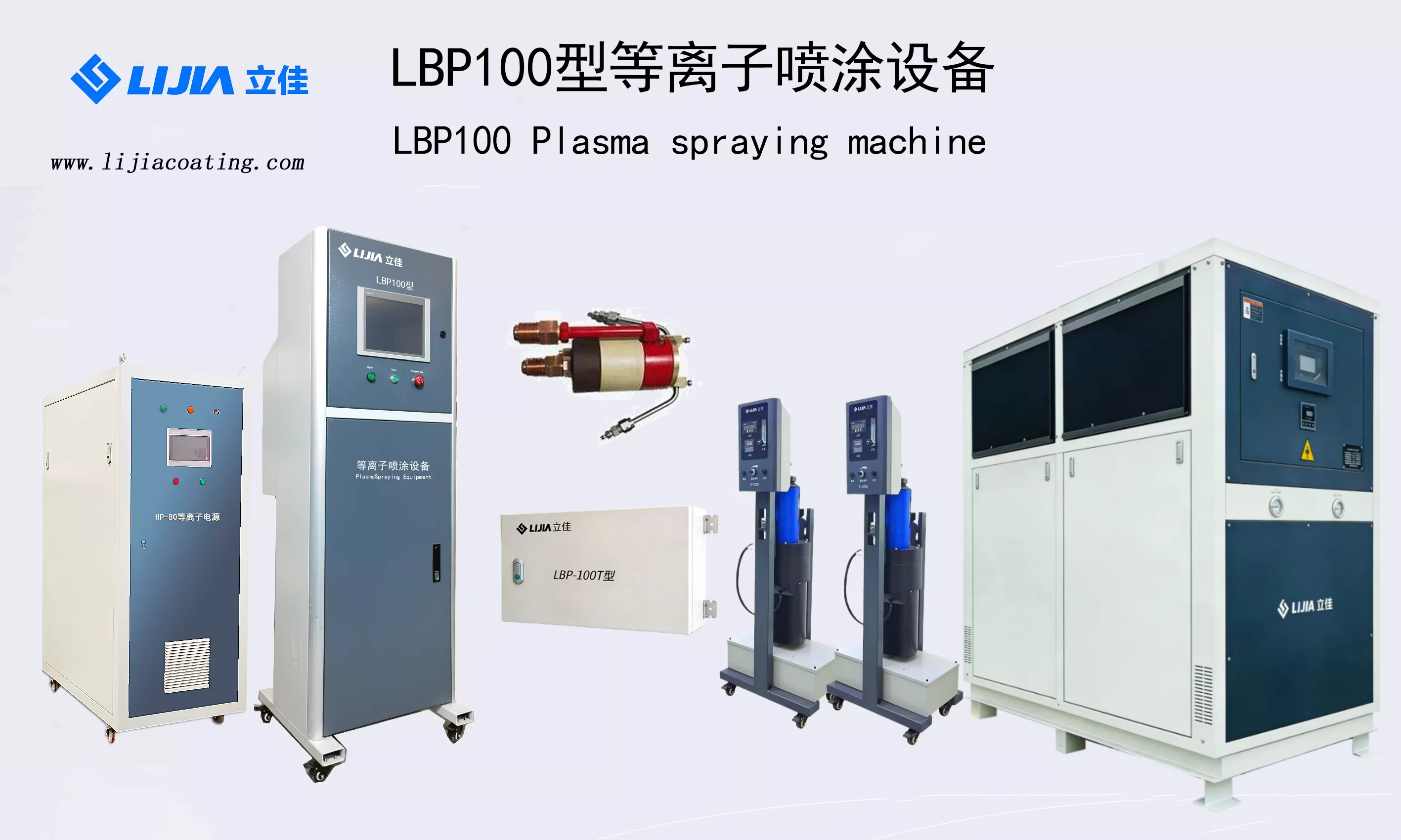

Plasma Spray | Can spray almost any material, including high-melting-point ceramics. | Ensures complete melting of hard-to-melt materials. | Requires high temperature, limiting material options. |
Cold Spray | Uses lower temperatures, useful for materials sensitive to high heat. | Can repair components without damaging heat-sensitive materials. | Limited to materials that do not require high heat for spraying. |
Each thermal spray process is best suited to specific types of feedstock materials. For example, metals like aluminum and zinc work well with flame spraying, while high-temperature-resistant ceramics like alumina and zirconia are better suited for plasma spraying. The selection of the appropriate process ensures that the coating achieves the desired properties, such as high adhesion strength, uniformity, and resistance to environmental factors.
The optimal thermal spray process depends on several factors, including:
● Temperature and Velocity: High-temperature processes like plasma spraying are used for high-melting-point materials, while flame spraying is suitable for lower melting points. The velocity at which particles are propelled also affects the coating's bond strength and density.
● Coating Quality: The desired coating quality, such as density, bond strength, and porosity, will guide the choice of material and process.
● Substrate Compatibility: The spray process must be compatible with the substrate material to ensure strong adhesion and performance of the coating. For example, coatings on delicate substrates may require a low-temperature process to avoid damaging the underlying material.
Recent advancements in nanotechnology have led to the development of nanostructured coatings. These coatings offer superior hardness and wear resistance, increasing the lifespan of coated components. Nanostructured coatings are expected to play a significant role in industries like aerospace and automotive, where performance is critical.
Nanostructured coatings can also offer enhanced corrosion resistance and fatigue strength, making them ideal for applications where durability is a primary concern. These coatings have the potential to revolutionize how components are protected from environmental and mechanical stress.
High-entropy alloys (HEAs) are gaining attention for their excellent resistance to oxidation, wear, and corrosion. These alloys, made of multiple elements in nearly equal proportions, are especially useful in high-stress environments like turbine engines and power plants, where they perform better than conventional materials.
Sustainability is becoming a key focus in thermal spray technology. Practices like powder feedstock recycling and low-energy processes, such as cold spray, help reduce waste and energy consumption. These eco-friendly approaches make thermal spray more attractive to industries aiming for sustainable manufacturing.
In the aerospace industry, thermal spray coatings are used extensively for components like turbines, jet engines, and gas turbine blades. These coatings provide thermal insulation, wear resistance, and corrosion protection, which are essential for components exposed to extreme conditions. By preventing damage caused by high temperatures and friction, thermal spray coatings help improve the performance and lifespan of these critical parts.
Thermal spray coatings are applied to automotive parts such as engine components, exhaust systems, and brake discs. These coatings improve wear resistance, reduce friction, and extend the lifespan of critical automotive components. With the growing demand for more efficient and durable vehicles, thermal spray coatings play a key role in enhancing the performance of modern automotive technologies.
In the oil and gas industry, equipment like pumps, valves, and drilling tools are coated with thermal spray materials to protect them from corrosion and wear. These coatings help improve the reliability and efficiency of operations in harsh environments. Coatings also extend the life of equipment, reducing downtime and maintenance costs in offshore and onshore oil rigs.
Mining equipment faces extreme wear and tear due to abrasive materials. Thermal spray coatings, such as tungsten carbide coatings, are used to protect mining machinery, improving their durability and reducing downtime. These coatings ensure that mining operations can continue efficiently without costly interruptions.
Thermal spray is also used in manufacturing to enhance the performance of industrial machinery. By applying wear-resistant coatings to components like gears, bearings, and molds, manufacturers can extend the life of their equipment and reduce maintenance costs. This leads to more efficient production processes and a reduction in unplanned downtime.
In the biomedical field, thermal spray coatings are used to improve the performance and longevity of implants and prosthetics. Materials like titanium and hydroxyapatite promote better integration with the body, enhancing the overall functionality of medical devices. These coatings can also prevent bacterial growth, reducing the risk of infection.
Industry | Applications | Benefits |
Aerospace | Turbines, jet engines, gas turbine blades | Thermal insulation, wear resistance, corrosion protection |
Automotive | Engine parts, exhaust systems, brake discs | Wear resistance, reduced friction, extended lifespan |
Oil & Gas | Pumps, valves, drilling tools | Corrosion protection, improved reliability and efficiency |
Mining | Mining machinery | Durability, wear resistance, reduced downtime |
Manufacturing | Gears, bearings, molds | Extended equipment life, reduced maintenance costs |
Biomedical | Implants, prosthetics | Better integration, reduced infection risk |
Thermal spray coatings are crucial for improving the performance and longevity of industrial components. The proper selection of feedstock materials ensures optimal properties like wear resistance, corrosion protection, and thermal insulation. As industries grow, the need for high-performance coatings will continue to increase, highlighting the importance of thermal spray technology. Looking forward, innovations in materials such as high-entropy alloys and nanostructured coatings will drive growth. These advances will keep thermal spray technology at the forefront of surface engineering.
Zhengzhou Lijia Thermal Spray Machinery Co., LTD offers cutting-edge equipment designed to enhance coating quality and performance, supporting industries in their pursuit of sustainable manufacturing solutions.
A: Thermal spray materials are substances like metals, alloys, ceramics, and polymers that are used to create protective coatings through the thermal spray process. These materials enhance the surface properties of industrial components.
A: Thermal spray works by heating feedstock materials (powders, wires, or rods) to a molten state and propelling them onto a surface, forming a coating that improves wear resistance, corrosion protection, and thermal insulation.
A: The right selection of thermal spray materials ensures optimal coating properties. Choosing materials like alloys or ceramics can significantly enhance surface durability, protect against corrosion, and improve performance in harsh environments.
A: Common thermal spray materials include metals like zinc and aluminum, ceramics such as alumina and zirconia, and carbides like tungsten carbide, each chosen based on the desired coating properties like wear resistance or heat resistance.
A: Thermal spray coatings provide several benefits, including enhanced wear resistance, corrosion protection, and the ability to withstand high temperatures, making them ideal for applications in industries like aerospace and automotive.
A: Particle size plays a key role in thermal spray coatings. Smaller particles generally result in finer coatings with better adhesion and uniformity, while larger particles may produce thicker coatings with more porosity.
