Microscopic voids dictate the lifespan of thermal sprayed components. When these voids exceed critical thresholds, mechanical integrity collapses, leading to premature component failure in severe operational environments. High porosity carries heavy operational impacts. Interconnected voids create direct pathways for galvanic corrosion, reduce coating hardness, and diminish wear resistance. This ultimately causes costly rework or catastrophic field failures in aggressive settings. We must shift our focus from diagnosing failure to proactive mitigation. Engineers can achieve sub-1% porosity and build dense, impenetrable surface barriers. Success requires precise parameter control, careful material selection, and rigorous equipment evaluation. By mastering oxygen flow rates, spray distances, and powder morphology, you can eliminate structural defects. This guide details the exact steps to optimize your process, lock down your parameters, and consistently produce high-density surface barriers that withstand the harshest industrial conditions.
Parameter Dominance: Oxygen flow rate and spray distance are the most critical controllable variables for optimizing supersonic particle velocity (400–800 m/s) and kinetic energy upon impact.
Material Dependency: Powder morphology and particle size distribution (PSD) strictly dictate melting behavior; improper selection guarantees high porosity regardless of equipment settings.
Post-Treatment Viability: Impregnation with special organic or inorganic sealants is a valid secondary defense for interconnected porosity but should not replace primary process optimization.
Equipment Limitations: Legacy HVOF systems may lack the combustion pressure necessary to achieve ultra-dense coatings, necessitating an ROI evaluation between process tuning and equipment upgrades.
Table of Contents
HVOF coating quality is evaluated through metallographic testing to measure coating density and porosity levels. High-performance applications typically require very low porosity, while general industrial applications may allow slightly higher levels. Clear acceptance criteria should be defined before production to ensure consistent coating performance.
ASTM E2109 provides a standard method for measuring coating porosity through optical microscopy and image analysis. Accurate sample preparation is essential, as poor grinding or polishing can create false porosity readings. Vacuum impregnation with epoxy and proper polishing procedures help preserve the coating structure and provide reliable test results.
Proper porosity measurement helps verify coating quality, avoid unnecessary part rejection, and ensure components meet performance requirements before entering service.
Industry Sector | Typical Application | Maximum Acceptable Porosity | Primary Failure Risk if Exceeded |
|---|---|---|---|
Aerospace | Landing Gear Cylinders | < 0.5% | Fatigue cracking and hydraulic seal failure |
Oil & Gas | Downhole Mud Rotors | < 1.0% | Severe galvanic corrosion from drilling fluids |
Power Generation | Boiler Tubes | < 1.5% | High-temperature oxidation and erosion |
General Manufacturing | Pump Housings | < 2.0% | Abrasive wear and dimensional loss |

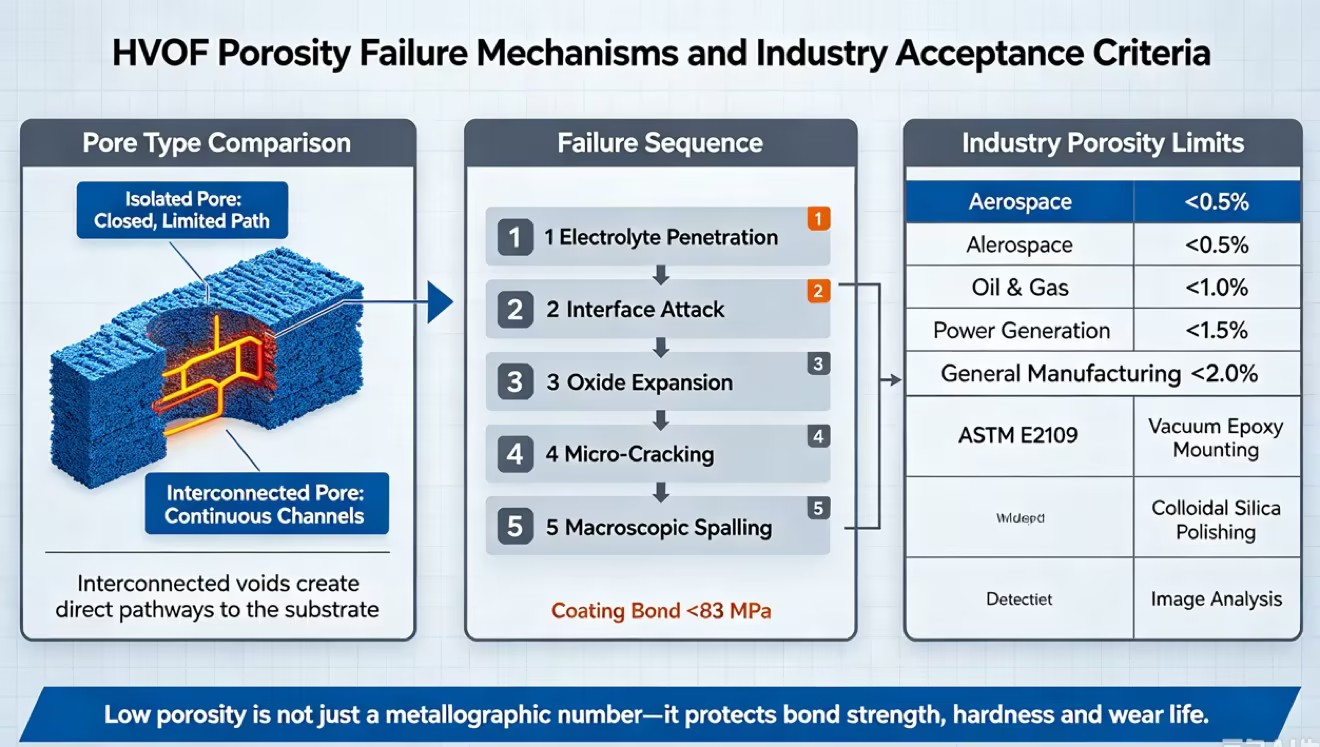

Not all pores have the same impact on HVOF coating performance. Isolated pores are trapped inside the coating and usually have limited influence on protection. Interconnected porosity creates continuous pathways that allow moisture and corrosive substances to reach the substrate, increasing the risk of corrosion and coating failure.
Higher porosity also reduces coating strength and hardness. A less dense coating has lower resistance to wear, erosion, and mechanical stress. Controlling porosity levels is therefore essential for maintaining strong bonding, long service life, and reliable performance in demanding applications.
Electrolyte Penetration: Corrosive fluids enter the interconnected surface voids and travel downward through the matrix.
Interface Attack: The fluids reach the substrate, initiating a galvanic cell between the coating material and the base metal.
Oxide Expansion: Corrosion products form at the interface, expanding in volume and creating localized tensile stress.
Micro-cracking: The outward pressure forces micro-cracks to propagate through the weakest, most porous sections of the coating.
Macroscopic Spalling: The micro-cracks link together, causing large sections of the protective layer to detach from the substrate.
Combustion balance is essential for achieving stable HVOF coating quality. The oxygen-to-fuel ratio affects flame temperature, pressure, and the amount of heat transferred to the powder. Accurate control of gas flow rates helps maintain consistent particle heating and coating structure.
Excess oxygen can increase powder oxidation, making particles more brittle and reducing their ability to deform during impact. Too little oxygen lowers combustion temperature and may result in incomplete powder melting. Maintaining the correct fuel ratio helps particles reach the proper state before deposition, improving coating density and reducing defects. Regular monitoring of flame behavior and system parameters ensures stable operation and consistent coating performance.
Spray distance is a critical parameter that affects particle velocity, temperature, and coating density in HVOF processes. The correct distance allows particles to maintain sufficient speed and plasticity before impact, helping them flatten and form a dense coating layer.
A distance that is too short can increase heat transfer to the substrate, causing thermal stress and possible micro-cracking. A distance that is too long allows particles to cool and lose velocity, reducing their ability to deform and bond effectively. Maintaining a consistent spray distance, especially on complex geometries, helps achieve uniform coating thickness and minimize porous areas.
Program robotic paths to maintain a strict 90-degree spray angle to maximize impact energy.
Adjust standoff distance dynamically when spraying complex geometries like internal bores or sharp radii.
Monitor substrate temperature continuously using infrared pyrometers to prevent overheating at shorter standoffs.
Conduct regular footprint tests to verify the focal point of the particle stream before spraying production parts.
Carrier gas pressure and powder feed rate are critical factors in HVOF coating quality. The carrier gas must deliver powder steadily into the combustion jet to ensure proper heating and deposition. Insufficient pressure may cause unstable powder injection, while excessive pressure can reduce particle heating efficiency and increase unmelted particles.
Powder feed rate must be balanced with the available thermal energy of the flame. Excessive powder loading reduces heat available for each particle, leading to incomplete melting and coating defects. Optimizing the relationship between feed rate and combustion power helps achieve consistent powder melting, uniform coating structure, and reliable performance.
Particle size distribution (PSD) has a direct impact on HVOF coating quality. A narrow PSD helps ensure more consistent heating, melting, and particle acceleration, resulting in a denser and more uniform coating structure. In contrast, a wide PSD may cause fine particles to overheat while larger particles remain partially melted, increasing the risk of coating defects.
Proper powder selection is essential for reducing porosity. Unmelted particles can create gaps within the coating layer and reduce overall density. Manufacturers should provide powder analysis reports to verify particle size consistency. Controlled classification and sieving processes help maintain stable powder performance during HVOF spraying.
Powder morphology affects HVOF powder flow, melting behavior, and final coating quality. Spherical gas-atomized powders generally provide better flowability and more consistent feeding, helping create dense coatings with stable performance. Agglomerated or irregular powders may require different heat inputs and handling conditions to achieve proper melting. The powder type should be matched with the HVOF fuel system to ensure efficient melting, uniform deposition, and reduced coating defects.
Manufacturing Method | Particle Morphology | Flowability | Melting Characteristics |
|---|---|---|---|
Gas Atomized | Spherical | Excellent | Requires high heat, yields very dense coatings |
Agglomerated & Sintered | Porous / Sponge-like | Good | Melts rapidly, prone to crushing in feeders |
Cast & Crushed | Blocky / Irregular | Poor | Requires high thermal energy, can cause pulsing |
Water Atomized | Irregular Spherical | Fair | Higher oxygen content, moderate melting speed |
Equipment performance directly affects HVOF coating density and quality. Older systems with lower combustion pressure may produce lower particle velocity, making it difficult to achieve highly dense coatings. Modern HVOF systems use advanced combustion chambers and nozzle designs to increase particle speed and impact energy, helping particles flatten and form a more compact coating structure with reduced porosity.
Engineers must perform a strict ROI evaluation. You must weigh the cost of process tuning against equipment upgrades. Upgrading to a modern high-pressure system often eliminates void issues instantly. It reduces rework and extends component lifespan. HVOF technology continues to evolve rapidly. Staying current ensures you meet stringent industry standards and maintain a competitive edge in severe service applications.
When evaluating new equipment, focus on the mass flow control architecture. Digital mass flow controllers provide superior response times compared to analog rotameters. They compensate for backpressure fluctuations in real-time. This ensures the stoichiometry remains perfectly locked throughout long spray runs. Consistent combustion is the foundation of a zero-defect microstructure.
Process optimization remains your primary defense against voids. However, post-treatment offers a valid secondary defense layer. Impregnation with special organic or inorganic sealants blocks interconnected pathways. This prevents corrosive media from reaching the substrate. It dramatically extends the lifespan of components in severe environments where absolute zero porosity is impossible to guarantee.
Vacuum impregnation provides the most effective sealing method. Technicians place the coated component inside a vacuum chamber. The vacuum removes all air from the interconnected voids. The chamber is then flooded with a low-viscosity sealant. Atmospheric pressure forces the sealant deep into the microscopic channels, filling them completely from the substrate up to the surface.
Sealant selection depends entirely on the operating environment. Epoxy and phenolic resins work well for low-temperature applications. They offer excellent chemical resistance against acids and alkalis. High-temperature environments require inorganic sealants like aluminum phosphates or silicone-based resins. Sealants cure and harden, permanently blocking the interconnected networks. Impregnation should never replace primary process optimization.
Clean the coated component thoroughly using ultrasonic degreasing to remove all surface contaminants.
Place the component in the vacuum chamber and draw a hard vacuum to evacuate air from the pores.
Introduce the catalyzed sealant into the chamber while maintaining the vacuum.
Release the vacuum, allowing atmospheric pressure to drive the sealant into the void network.
Cure the component in an oven according to the specific thermal profile required by the sealant manufacturer.
Audit your mass flow controllers immediately to ensure precise oxygen-to-fuel stoichiometry and prevent combustion drift.
Upgrade your powder specifications to demand narrow particle size distributions and eliminate unmelted inclusions.
Implement automated robotic controls to maintain an exact, unwavering standoff distance during application.
Evaluate your current combustion chamber pressure against modern high-velocity standards to determine if an equipment upgrade is necessary.
Establish strict metallographic preparation protocols using vacuum epoxy mounting to prevent false porosity readings during quality control.
A: Premium industrial applications typically require less than 1% porosity. Standard applications may tolerate up to 2%. Anything above 2% significantly increases the risk of galvanic corrosion, reduced hardness, and premature mechanical failure in severe operating environments.
A: Oxygen flow controls the combustion temperature and flame velocity. Too much oxygen oxidizes the powder, making it brittle. Too little oxygen reduces the flame temperature, leaving particles unmelted. Both extremes create massive microscopic voids upon impact.
A: Wide distributions contain both very fine and very coarse particles. Fines vaporize or oxidize in the flame. Coarse particles fail to melt completely. These unmelted particles embed in the coating, creating shadowed regions and large interstitial voids.
A: Sealants can block interconnected voids and improve corrosion resistance. However, they cannot restore lost mechanical strength or hardness. Impregnation is a secondary defense layer and must never replace proper parameter optimization and equipment calibration.
A: Aggressive grinding or using the wrong polishing suspensions can rip particles out of the coating matrix. Image analysis software cannot distinguish between true voids and these pull-out cavities, leading to falsely high porosity readings and rejected parts.
A: Standoff distance dictates when particles strike the substrate. If the distance is too long, particles exit the supersonic jet core, decelerate rapidly, and cool down. They lose the kinetic energy required to flatten and form a dense matrix.
