Industrial component failure from severe abrasion, erosion, and corrosion causes massive downtime and heavy maintenance costs in demanding environments. Engineering and procurement teams face a specific challenge. You must specify surface treatments that drastically extend component lifespan without altering the metallurgical properties of the underlying substrate or violating modern environmental compliance standards. When standard hardening or plating fails, you need a surface that can take a beating. An HVOF tungsten carbide coating has emerged as the standard engineering solution for severe wear environments. We see this applied daily on pump rotors, gate valves, and hydraulic rods that operate in the harshest conditions. This guide details the technical properties, matrix selection criteria, and implementation realities of specifying this coating for industrial applications. We will look at how the process works, what binder matrix to choose, and how to avoid common application defects.
Superior Mechanical Bond: The HVOF process applies tungsten carbide at high kinetic velocities and relatively low substrate temperatures (typically under 300°F), preventing thermal distortion and metallurgical degradation of the base part.
Unmatched Wear Resistance: Coating performance—specifically hardness, surface finish, and wear resistance—is highly customizable based on the precise grain size, volume fraction of the tungsten carbide, and the chosen metallic binder (Cobalt, Nickel, or Chrome).
The Hard Chrome Alternative: Driven by REACH compliance and superior performance metrics, HVOF tungsten carbide has become the industry-standard replacement for hard chrome plating in aerospace, oil & gas, and manufacturing.
Precision Implementation: Successful application requires rigorous vendor evaluation, focusing on substrate preparation, powder quality control, geometric limitations, and specialized post-coating diamond grinding capabilities.
Table of Contents
High Velocity Oxy-Fuel thermal spraying represents a major shift in surface engineering. The process begins inside a specialized combustion chamber. Operators mix specific liquid or gaseous fuels, such as kerosene, hydrogen, or propylene, with high-purity oxygen. This mixture ignites, creating a high-pressure combustion gas stream. The system forces this expanding gas through a converging-diverging nozzle. The nozzle design accelerates the gas stream to supersonic velocities, often exceeding Mach 2. Equipment then injects fine tungsten carbide powder into this exhaust stream. The intense gas flow rapidly heats the powder to a semi-molten state and propels it toward the target substrate at extreme speeds.

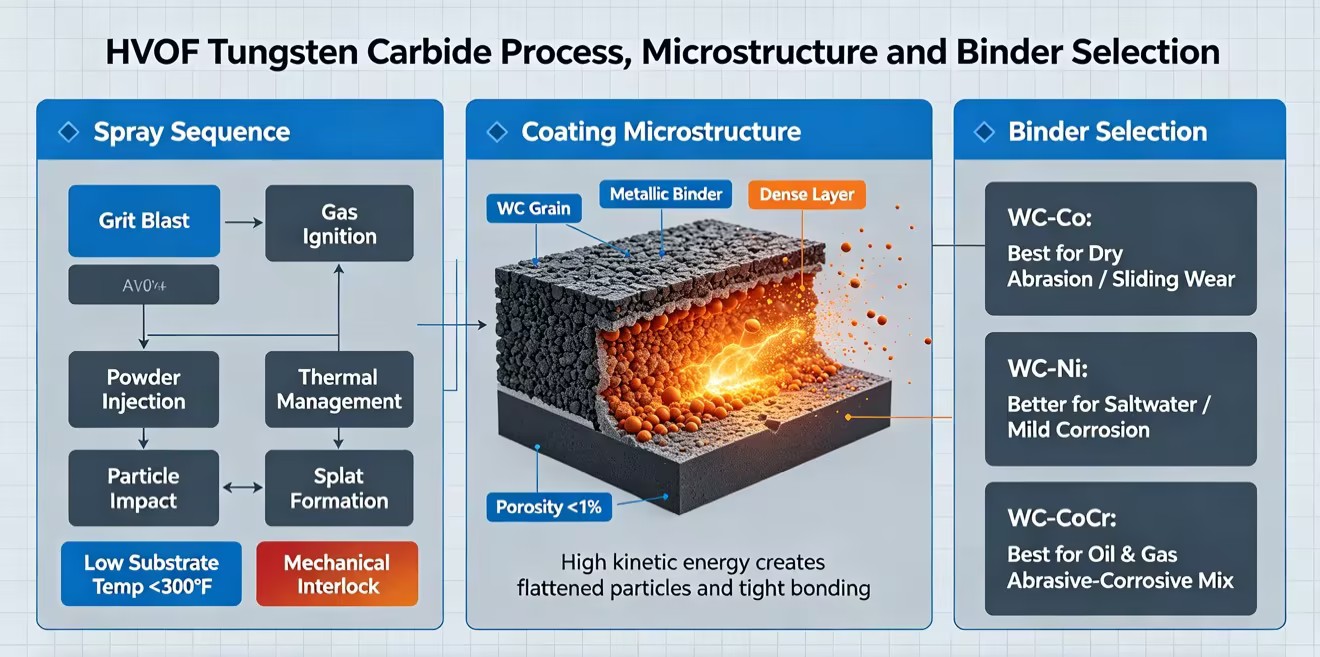

To understand the application on the shop floor, we can break down the standard spray sequence into distinct operational phases:
Surface Profiling: Technicians blast the component with sharp, angular aluminum oxide grit to create a rough anchor pattern.
Gas Ignition: The automated control console ignites the oxygen and fuel mixture, stabilizing the supersonic flame.
Powder Injection: A carrier gas feeds the carbide powder into the combustion stream at a highly controlled feed rate.
Particle Impact: The semi-molten particles strike the substrate, flattening out into splats that mechanically interlock with the roughened surface.
Thermal Management: Auxiliary cooling jets direct compressed air or liquid carbon dioxide onto the part to keep the bulk temperature low during the spray passes.
Unlike traditional plasma spray, which relies on extreme temperatures to melt materials, HVOF relies heavily on kinetic energy. The tungsten carbide particles do not fully melt during transit. Instead, they reach a plasticized, semi-molten state. When these high-velocity particles strike the substrate, the massive kinetic energy forces them to flatten upon impact. This kinetic flattening creates interlocking mechanical bonds. Because the particles do not reach their full melting point, the tungsten carbide grains avoid thermal degradation and decarburization. The result is an exceptionally dense, tightly bonded coating structure with minimal porosity and preserved carbide integrity.
One of the most practical advantages of this thermal spray method is substrate preservation. The application process maintains relatively low bulk substrate temperatures, typically remaining well under 300°F (150°C). Operators utilize continuous compressed air or carbon dioxide cooling jets during the spraying sequence to manage heat buildup. This low-temperature application eliminates the risk of thermal warping in precision components. It also prevents the formation of heat-affected zones within the base metal. Consequently, high-strength steel alloys retain their original temper, yield strength, and mechanical properties after the coating process is complete.
The primary function of this surface treatment is to combat severe mechanical wear. Typical microhardness values range from 1000 to 1400 HV0.3, depending entirely on the selected metallic matrix and carbide grain size. The extremely hard tungsten carbide particles act as a shield against abrasive forces. The dense, interlocking structure effectively resists sliding wear, fretting fatigue, and hard particle abrasion. When abrasive media, such as sand or metal shavings, drag across the surface, the hard carbide grains deflect the particles, preventing them from gouging the softer underlying substrate.
Coating density directly dictates corrosion resistance and structural integrity. The supersonic impact velocity flattens the semi-molten particles so aggressively that the resulting layer exhibits less than 1% porosity. This ultra-low porosity is a defining characteristic of the process. Traditional thermal sprays often leave interconnected porous networks that allow moisture and chemicals to reach the substrate. The high-density structure of this specific application creates an impermeable barrier. It provides superior protection against corrosive media, preventing galvanic corrosion at the interface between the coating and the base metal.
Mechanical bond strength determines whether a coating will survive under high-stress operational loads. The kinetic impact drives the particles into the microscopic asperities of the grit-blasted substrate. This creates a mechanical bond strength that routinely exceeds 10,000 PSI (70 MPa). In standard ASTM C633 bond strength testing, the high-strength epoxy used to adhere the test blocks often fails before the coating separates from the substrate. This massive bond strength prevents delamination, flaking, and spalling, even when the component experiences heavy impact or high-pressure point loading.
Technical Property | Typical HVOF Tungsten Carbide Range | Engineering Benefit |
|---|---|---|
Microhardness | 1000 - 1400 HV0.3 | Deflects hard particles and prevents gouging. |
Porosity | < 1.0% | Creates an impermeable barrier against corrosive fluids. |
Bond Strength | > 10,000 PSI (70 MPa) | Prevents spalling under heavy mechanical loads. |
Applied Thickness | 0.002" - 0.020" (50 - 500 µm) | Allows for dimensional restoration and wear allowance. |
Industrial components frequently operate in environments with rapid temperature fluctuations. The coating exhibits excellent thermal stability and thermal shock resistance. The metallic binder matrix provides enough ductility to absorb the stress of rapid heating and cooling cycles without developing micro-cracks. Furthermore, the material possesses specific thermal conductivity characteristics that help dissipate heat generated by continuous high friction. This prevents localized heat buildup that could otherwise lead to thermal fatigue or premature wear of mating seals and bearings.
Engineers must set realistic expectations for the final surface finish. The as-sprayed surface roughness typically measures between 150 and 300 Ra microinches, presenting a matte, sandpaper-like texture. Because the material is exceptionally hard, traditional single-point turning methods cannot machine it. Achieving tight dimensional tolerances and mirror finishes requires specialized post-coating diamond grinding and lapping. Skilled machinists use resin-bonded diamond wheels and precise coolant management to grind the surface down to finishes as fine as 2 to 4 Ra microinches, suitable for dynamic sealing applications.
Tungsten carbide in its pure form is a ceramic material. It is incredibly hard but inherently brittle. It requires a metallic binder matrix to hold the hard grains together and provide fracture toughness. The binder acts as a ductile shock absorber. Selecting the wrong matrix material inevitably leads to premature failure in specific chemical or thermal environments. Engineering teams must evaluate the exact operational environment—including temperature, pH levels, and abrasive media—before specifying the binder composition.
Binder Matrix | Primary Composition | Best Application Environment | Known Limitations |
|---|---|---|---|
WC-Co | Tungsten Carbide + Cobalt | Dry abrasion, severe sliding wear, fretting. | Poor resistance to aqueous corrosion and acids. |
WC-Ni | Tungsten Carbide + Nickel | Saltwater exposure, mild chemical processing. | Slightly lower absolute hardness than Cobalt. |
WC-CoCr | Tungsten Carbide + Cobalt + Chrome | Oil & Gas, harsh corrosive and abrasive hybrids. | Requires highly controlled spray parameters. |
The Tungsten Carbide Cobalt matrix is the traditional standard for pure mechanical wear environments. The cobalt binder provides excellent toughness and adhesion for the carbide grains. It is the best choice for dry abrasion, sliding wear, and environments with heavy particulate friction. However, cobalt possesses significant chemical limitations. It performs poorly in corrosive environments. Exposure to acidic solutions or continuous moisture causes the cobalt binder to leach out, leaving the carbide grains unsupported. This leads to rapid coating degradation and failure.
When components face a combination of mechanical wear and mild corrosion, Tungsten Carbide Nickel provides the necessary balance. Nickel offers vastly superior corrosion resistance compared to cobalt. It is highly effective in environments involving saltwater exposure, high humidity, and specific chemical processing applications. While the nickel matrix is slightly softer than cobalt, resulting in a marginal decrease in absolute abrasion resistance, the trade-off is necessary to prevent chemical attack and subsequent binder depletion.
The Tungsten Carbide Cobalt Chrome matrix represents the ultimate hybrid solution. The addition of chromium to the cobalt binder creates a passivating oxide layer that dramatically enhances chemical resistance. This composition provides exceptional resistance to both severe abrasive wear and aggressive aqueous corrosion. It is the standard specification for critical components in the oil and gas industry, including gate valves, pump rotors, and hydraulic rods operating in harsh, corrosive environments.
The upstream and downstream oil and gas sectors rely heavily on advanced surface engineering to maintain production. Common applications include gate valves, ball valves, pump rotors, mud motor rotors, and downhole drilling tools. The success criteria in these environments are extreme. Components must withstand high-pressure, high-temperature environments, exposure to sour gas, and the continuous scouring action of abrasive drilling muds. A properly specified coating prevents premature seal failure, maintains pressure boundaries, and extends the operational life of drilling assets in remote locations.
Aerospace and defense applications demand uncompromising reliability and strict adherence to aviation safety standards. Manufacturers apply these coatings to landing gear cylinders, hydraulic actuator rods, and critical rotorcraft components. The success criteria revolve around high fatigue resistance, the ability to hold strict dimensional tolerances, and resistance to hydraulic fluid corrosion. The dense, crack-free structure provides a superior sealing surface for dynamic hydraulic seals, preventing fluid leaks and ensuring consistent mechanical actuation under extreme flight loads.
In power generation and heavy manufacturing, continuous operation is required. Applications include hydroelectric turbine blades, steam turbine valves, corrugating rolls for cardboard manufacturing, and wire drawing capstans. The success criteria focus on long-term resistance to cavitation, high-velocity particle erosion, and continuous operational friction. For hydroelectric turbines, the coating prevents silt erosion from destroying the blade profiles. In wire drawing, it maintains the precise geometry of the capstans, ensuring consistent wire diameter and preventing surface defects on the manufactured product.
For decades, hard chrome plating served as the default surface treatment for wear resistance. However, comparative performance metrics heavily favor thermal spray alternatives. Hard chrome typically exhibits a micro-cracked structure, which allows corrosive media to penetrate to the substrate. In contrast, the thermal spray process produces a dense, impermeable barrier. Regarding microhardness and wear rates, the carbide solution vastly outperforms chrome. In severe abrasive environments, components treated with the carbide process typically outlast hard chrome plated parts by a factor of 3 to 5, drastically reducing replacement frequency.
Feature | Hard Chrome Plating | HVOF Tungsten Carbide |
|---|---|---|
Microhardness | 800 - 1000 HV | 1000 - 1400 HV |
Porosity Structure | Micro-cracked network | Dense, < 1% porosity |
Environmental Impact | High (Hexavalent Chromium) | Low (Solid-state powders) |
Fatigue Impact on Base Metal | Induces tensile stress (reduces fatigue life) | Induces compressive stress (improves fatigue life) |
Environmental and regulatory pressures are actively driving the industry away from hard chrome plating. The electroplating process relies on hexavalent chromium, a known human carcinogen. Regulatory bodies, including OSHA, the EPA, and the European REACH directive, are strictly limiting or phasing out the use of hexavalent chromium due to its severe toxicity and environmental impact. The thermal spray process utilizes safe, solid-state powders and produces no hazardous liquid waste. It positions manufacturers with a compliant, future-proof alternative that eliminates the massive hazardous waste disposal liabilities associated with chemical electroplating.
Procurement teams must evaluate the cost-to-value ratio accurately. The initial application cost of the thermal spray process is undeniably higher than traditional chrome plating. The equipment is expensive, the powders are costly, and the required diamond grinding adds significant machining time. However, the true value emerges through lifecycle return on investment. By extending the mean time between failures, facilities drastically reduce downtime, eliminate frequent part replacement, and lower overall lifecycle maintenance costs. The initial premium pays for itself rapidly in high-stakes operational environments.
Successful implementation requires strict quality assurance regarding powder metallurgy. Vendor inconsistency in powder morphology drastically alters the final coating performance. Powders come in various structures, including agglomerated and sintered, or cast and crushed. Furthermore, the grain size of the carbide dictates the balance between hardness and toughness. Fine grains offer higher hardness and better surface finishes, while coarser grains provide better resistance to severe gouging abrasion. Vendors must maintain strict lot-to-lot powder quality control to ensure consistent wear resistance.
To verify vendor quality, engineering teams should request the following documentation:
Powder certification showing exact chemical composition and particle size distribution.
Metallurgical cross-section reports verifying porosity levels under 1%.
Bond strength test results conforming to ASTM C633 standards.
Microhardness test reports taken directly from a sample coupon sprayed alongside the production parts.
Engineering teams must understand the geometric limitations of the process. This thermal spray method is strictly a line-of-sight process. The spray gun must maintain a specific standoff distance and a perpendicular angle to the substrate. Consequently, coating deep grooves, narrow trenches, and complex undercuts is highly problematic. Applying the material to internal diameters requires specialized ID gun extensions. Even with extensions, there are strict minimum diameter requirements to accommodate the spray plume and prevent the powder from bouncing off the internal walls and creating a porous, poorly bonded layer.
Mechanical adhesion relies entirely on proper substrate preparation. The base metal requires precise grit blasting using sharp, angular aluminum oxide to create a specific surface anchor profile. If the grit blasting is inconsistent, the coating will inevitably delaminate under stress. Additionally, masking complex geometries presents a significant challenge. Operators must use specialized high-temperature masking tapes, silicone plugs, and custom metal shadowing fixtures to protect threaded holes, delicate seal areas, and non-coated zones from the supersonic abrasive blast and overspray.
The final implementation risk involves post-coating machining. Because the applied material is incredibly hard and brittle, improper grinding techniques will induce thermal damage. Aggressive grinding feeds or inadequate coolant application will cause localized heat buildup, leading to micro-cracking across the surface. These micro-cracks compromise corrosion resistance and structural integrity. Engineering teams must ensure that their chosen vendor possesses specialized diamond grinding expertise, utilizes appropriate resin-bonded diamond wheels, and employs high-volume flood coolant management to achieve precise dimensional tolerances safely.
Audit your current component failure logs to identify parts suffering from severe abrasion or chemical attack that currently rely on hard chrome plating.
Consult with a surface engineering specialist to review component blueprints and identify potential line-of-sight geometric limitations before drafting the final specification.
Determine the optimal tungsten carbide matrix composition based on the specific abrasive media, operating temperature, and chemical exposure of the application.
Request metallurgical cross-section reports from potential vendors to verify coating density, porosity levels, and interface bond integrity before moving to full-scale production.
A: Typical application thicknesses range from 0.002 to 0.020 inches. Applying thickness beyond 0.020 inches increases the risk of internal residual tensile stress. Excessive stress can lead to micro-cracking, delamination, or spalling of the coating under operational loads.
A: The maximum operating temperature is typically around 900°F (480°C). Above this threshold, the tungsten carbide begins to oxidize, and the metallic binder matrix degrades. This thermal degradation causes a rapid loss of hardness, structural integrity, and wear resistance.
A: Yes. Components can be salvaged and remanufactured. The coating is typically stripped using specialized chemical baths that dissolve the binder without attacking the base metal, or through precision mechanical grinding. Once stripped, the part is re-prepped and re-coated to original OEM dimensions.
A: The process generally has a neutral or beneficial effect on fatigue life. The high-velocity kinetic impact induces compressive residual stresses on the substrate surface. Unlike the tensile stresses induced by hard chrome plating, these compressive stresses help inhibit crack propagation and improve fatigue resistance.
A: HVOF is vastly superior for tungsten carbide. Plasma spray operates at extreme temperatures that melt and decarburize the carbide grains, creating brittle phases. HVOF uses high velocity and lower temperatures, preserving the carbide structure and creating a denser, harder, and better-bonded coating.
A: Yes, but with strict limitations due to the line-of-sight nature of the process. Specialized ID spray gun extensions are required. Typically, the internal diameter must be at least 3 to 4 inches wide to accommodate the spray angle and prevent porous, low-quality deposits.
