The structural integrity and operational lifespan of High-Velocity Oxygen Fuel coatings rely entirely on precise calibration. Misaligned variables cause high porosity, poor substrate adhesion, and excessive residual stress. This leads to premature component failure in harsh environments. Engineering teams must move beyond basic material selection. You need to scrutinize process control and documentation to ensure reliability. This guide deconstructs the core HVOF spray parameters. We cover fuel-to-oxygen ratios, stand-off distances, and powder characteristics. You will learn how to evaluate process reliability, mitigate implementation risks, and ensure coatings meet stringent performance specifications.
Kinetic vs. Thermal Dominance: HVOF relies on high kinetic energy—achieving particle velocities of 400–800 m/s (1,300–2,600 ft/s)—rather than extreme thermal energy. Optimizing the fuel-to-oxygen ratio is critical to prevent unwanted powder oxidation or phase transformations.
Distance Dictates Density: Stand-off distance (typically 150–300 mm) directly influences particle impact velocity and temperature, serving as the primary lever for controlling coating porosity, hot corrosion resistance, and oxidation performance.
Powder Morphology Matters: Powder size distribution and shape dictate flowability and melting behavior, requiring precise alignment with carrier gas flow rates to prevent unmelted inclusions in critical applications like tungsten carbide (WC-Co) or chromium carbide (Cr3C2-NiCr) coatings.
Efficiency Trade-Offs: Maximizing deposition efficiency often competes with achieving maximum coating density and hardness; process qualification must define acceptable thresholds for both.
Table of Contents
You must establish baseline metallurgical requirements before touching the equipment console. Target specific metrics based on the operating environment. Standard benchmarks for severe wear applications often demand less than one percent porosity. You also need specific microhardness values, such as 1100 to 1300 HV0.3 for tungsten carbide coatings. Bond strength must routinely exceed 10,000 psi per ASTM C633 testing standards. Hot corrosion resistance dictates success in chemical processing and offshore applications. Defining these targets prevents arbitrary adjustments on the shop floor. Every parameter change must map directly back to these core metallurgical goals.
Surface preparation acts as the foundation for these metrics. Parameters mean nothing if the substrate is contaminated or improperly profiled. Operators must grit blast components using angular aluminum oxide to achieve a specific surface roughness, typically Ra 3 to 4 micrometers. This mechanical profile provides the necessary anchor pattern for the high-velocity particles. Failing to control the blasting pressure, grit size, or standoff distance during preparation will result in catastrophic delamination, regardless of how perfectly you tune the spray gun.

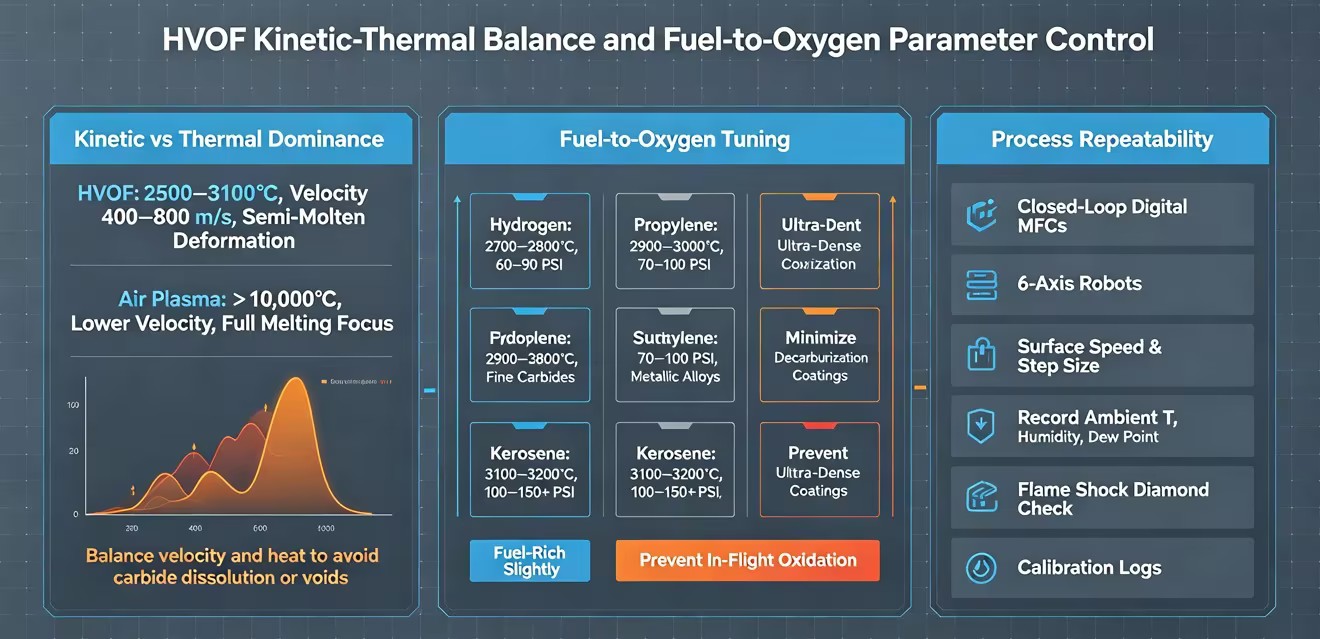

The HVOF process differentiates itself from traditional plasma spray by prioritizing particle velocity over extreme temperature. Air plasma systems melt particles completely using extreme heat, often exceeding 10,000 degrees Celsius. This high-velocity method operates at much lower temperatures, typically between 2,500 and 3,100 degrees Celsius. It softens particles just enough to deform upon impact. You maintain a delicate kinetic-thermal balance to prevent material degradation. Excessive heat causes carbide dissolution, turning tough coatings into brittle failure points. Insufficient heat prevents proper splat formation, leaving voids. You must tune parameters to keep particles in this optimal semi-molten state.
Batch-to-batch consistency requires automated parameter control. Manual adjustments introduce unacceptable variance in industrial applications. You need digital mass flow controllers to regulate gas inputs precisely. Rotameters and manual valves belong in the past. Robotic kinematics ensure consistent torch movement, surface speed, and step sizes. Rigorous Standard Operating Procedures dictate every step of the process, from grit blasting profiles to final dimensional grinding. Documenting these variables ensures traceability for every coated component. Process repeatability separates reliable vendors from inconsistent operators.
Implement closed-loop digital mass flow controllers for all fuel, oxygen, and carrier gas lines.
Utilize six-axis robotic arms to maintain exact surface speeds and step increments.
Record ambient temperature, humidity, and compressed air dew points during spray sessions.
Maintain strict calibration logs for all monitoring equipment and powder feeders.
Conduct regular flame diagnostics to verify shock diamond patterns and jet stability.
The combustion stoichiometry dictates the energy available in the spray plume. Variations in oxygen flow directly influence the flame temperature. This changes the kinetic energy transferred to the powder. It ultimately determines the coating's oxidation resistance and phase composition. You must control this ratio to achieve the desired particle state. Small deviations alter the combustion dynamics significantly. This impacts both the velocity and the thermal profile of the supersonic jet.
Oxygen flow acts as the primary driver for combustion efficiency. Increasing oxygen raises the flame temperature up to the stoichiometric point. Excess oxygen beyond this point cools the flame slightly. However, unburnt oxygen reacts rapidly with heated powder particles in flight. This in-flight oxidation degrades the final coating properties. You must balance oxygen flow to maximize velocity without causing excessive oxidation. Precise mass flow control prevents these unwanted chemical reactions. Operators often run slightly fuel-rich mixtures when spraying sensitive carbides to scavenge free oxygen and protect the powder.
Fuel selection changes the fundamental characteristics of the spray plume. Traditional gas-fueled systems use hydrogen, propylene, or ethylene. These gases provide clean combustion and straightforward parameter tuning. Hydrogen produces a very high-velocity, lower-temperature flame ideal for fine powders. Propylene offers higher heat output for melting coarser particles. High-Velocity Oxy-Liquid Fuel systems use aviation-grade kerosene. Liquid fuels generate significantly higher combustion chamber pressures. This results in higher particle velocities and denser coatings. However, liquid systems require more complex atomization hardware and rigorous maintenance of injection nozzles. You must evaluate operational targets when choosing a fuel type.
Fuel Type | Typical Flame Temperature (°C) | Combustion Chamber Pressure (PSI) | Primary Application Strengths |
|---|---|---|---|
Hydrogen (Gas) | 2,700 - 2,800 | 60 - 90 | High velocity, low oxidation, excellent for fine carbide powders. |
Propylene (Gas) | 2,900 - 3,000 | 70 - 100 | Higher thermal output, good for metallic alloys and coarser cuts. |
Kerosene (Liquid) | 3,100 - 3,200 | 100 - 150+ | Maximum kinetic energy, ultra-dense coatings, high deposition rates. |
The fuel-to-oxygen ratio directly affects in-flight phase transformations. We analyze how fuel-rich versus oxygen-rich flames impact carbide matrices. Tungsten carbide and chromium carbide are highly sensitive to oxidation. An oxygen-rich flame causes severe decarburization of these materials. The primary tungsten carbide phase transforms into brittle secondary phases or even metallic tungsten. These secondary phases lack the necessary wear resistance and thermal stability. A slightly fuel-rich flame minimizes this decarburization. It helps retain the primary carbide phases for maximum performance in abrasive environments.

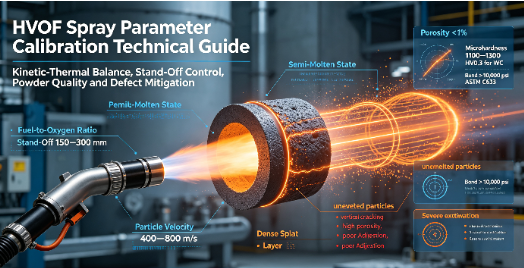

Stand-off distance dictates the exact moment particles strike the substrate. The standard operational window typically falls between 150 and 300 millimeters. This distance aligns with the supersonic flame shock diamonds. Particles accelerate through these pressure waves to reach maximum velocity. Strict line-of-sight constraints govern this process. The torch must remain perpendicular to the surface. Deviating from this optimal window compromises the kinetic energy required for dense coatings.
Spray distance has a major impact on HVOF coating quality. If the torch is too close to the substrate, excessive heat can increase thermal stress, causing coating cracks, spallation, or substrate deformation. Proper cooling methods may be required to control component temperature during spraying.
If the torch is too far away, particles lose velocity and cool before reaching the surface. This reduces their ability to deform and bond properly, leading to higher porosity, weaker coating adhesion, and lower deposition efficiency. Maintaining the correct spray distance helps achieve a dense, uniform coating structure.
Precise distance control ensures optimal particle deformation. We call this splat formation. High-velocity impact forces the semi-molten particles to flatten completely against the roughened substrate. This mechanical interlocking builds a dense, cohesive structure. It effectively seals interconnected pores within the coating. Eliminating these pathways provides excellent hot corrosion resistance. It protects the underlying substrate from aggressive chemical media, saltwater, and high-temperature oxidation. Optimal stand-off distance is your primary defense against corrosive failure in offshore and petrochemical applications.
Equipment settings only work if the feedstock material behaves predictably. Powder morphology and size distribution dictate flowability through the feed lines. They also determine how heat transfers into the individual particles during their microsecond flight time. You must align powder characteristics with your chosen flame parameters. Mismatched powders cause inconsistent melting, pulsing in the flame, and poor coating density.
Powder type and particle size have a direct impact on HVOF coating quality. Different powder morphologies, including agglomerated, sintered, cast, crushed, and gas-atomized powders, show different melting and flow behaviors during spraying. Particle size must be matched with the flame temperature to achieve proper melting and reduce defects. Fine powders provide smoother finishes but may overheat, while larger particles are more resistant to overheating but may not melt completely.
Proper powder storage is also essential for stable coating performance. Moisture absorption can cause powder clumping, unstable feeding, and flame fluctuations. Climate-controlled storage and proper handling procedures help maintain consistent powder flow and coating quality.

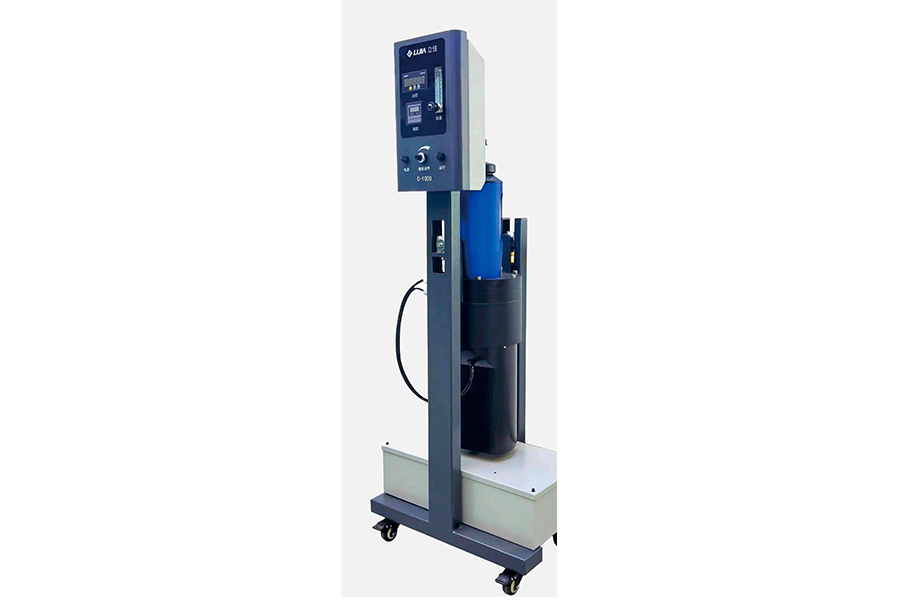

You need a carrier gas to transport powder from the hopper into the combustion chamber. Operators usually use nitrogen or argon for this task. The carrier gas must overcome the high pressure inside the gun. It injects the powder directly into the center of the flame plume. Too much carrier gas disrupts the combustion dynamics, cools the flame, and scatters the powder trajectory. Too little carrier gas fails to penetrate the pressure barrier. This causes powder to build up inside the nozzle, leading to spitting or catastrophic nozzle failure. Precise injection dynamics ensure uniform heating and acceleration.
Balancing powder feed rates requires careful observation and empirical testing. High feed rates seem attractive for faster production cycles and lower labor costs. However, injecting too much cold powder quenches the flame. This lowers the overall temperature and leaves particles unmelted. Unmelted inclusions create weak points in the coating structure, acting as initiation sites for fatigue cracks. Low feed rates ensure thorough heating but increase processing time and gas consumption. You must optimize the feed rate to maximize throughput without sacrificing metallurgical quality. Typical feed rates range from 30 to 80 grams per minute, depending on the hardware and material density.
Optimizing a coating process involves balancing competing variables. You cannot maximize every metric simultaneously. Understanding these trade-offs helps you establish realistic production parameters. It also prepares you to troubleshoot defects when they arise on the spray booth floor.
A fundamental economic trade-off exists between speed and quality. Spraying faster increases deposition efficiency and lowers immediate production costs. However, pushing feed rates too high compromises the coating structure. Severe service environments demand the densest possible coating. You must prioritize structural integrity over raw application speed. Process qualification must define acceptable thresholds for both efficiency and hardness. Do not sacrifice long-term performance for short-term production gains. A failed component in the field costs exponentially more than an extra hour of spray time.
Complex geometries can make HVOF coating more challenging because the process requires a clear line of sight and proper spray angles. Incorrect angles reduce particle impact velocity and may increase porosity. Components with complex shapes or internal surfaces often require custom tooling, robotic path programming, or specialized extension equipment to achieve uniform coating thickness.
Masking is also an important consideration during HVOF spraying. Standard tapes may not withstand the high-velocity spray stream, so manufacturers often use custom metal fixtures or heat-resistant masking materials to protect non-coated areas. Proper masking helps reduce overspray and avoids additional finishing work after coating.
Identifying root causes allows you to correct parameter deviations quickly. You must map specific defects back to their operational triggers.
Defect Type | Visual / Metallurgical Indicator | Common Root Cause | Parameter Adjustment Strategy |
|---|---|---|---|
Unmelted Particles | Large, undeformed spherical inclusions in cross-section. | Excessive powder feed rate or low flame temperature. | Reduce powder feed rate; optimize fuel-to-oxygen ratio for higher heat output. |
Vertical Cracking | Cracks running perpendicular to the substrate. | Excessive residual tensile stress from overheating. | Increase stand-off distance; enhance component cooling air; increase surface speed. |
High Porosity | Excessive voids and interconnected pathways. | Low impact velocity or premature particle cooling. | Decrease stand-off distance; check combustion chamber pressure; verify carrier gas flow. |
Poor Adhesion | Coating delamination at the substrate interface. | Inadequate surface preparation or cold substrate. | Verify grit blasting profile (angular grit); apply a brief pre-heating pass to remove moisture. |
Severe Oxidation | Dark oxide stringers visible at splat boundaries. | Oxygen-rich flame chemistry or excessive stand-off. | Reduce oxygen flow to achieve a slightly fuel-rich mixture; shorten spray distance. |
Take these actionable steps to implement a reliable process on your shop floor:
Define strict metallurgical acceptance criteria, including porosity limits and microhardness targets, before spraying any production parts.
Request test coupons sprayed at varying parameter matrices to evaluate inter-splat cohesion and phase retention.
Conduct hot corrosion and bond strength testing on these initial samples to validate the chosen gas flows and distances.
Lock down the exact mass flow rates, stand-off distances, and robotic paths into a formal Standard Operating Procedure.
Implement routine destructive testing on sample tabs run alongside production batches to verify ongoing consistency.
A: The most critical variables include the fuel-to-oxygen ratio, stand-off distance, powder feed rate, and carrier gas flow. These factors control the flame temperature, particle velocity, and impact energy. Balancing them ensures optimal coating density, minimal porosity, and high bond strength.
A: Stand-off distance determines the exact velocity and temperature of particles upon impact. An optimal distance ensures particles deform completely, sealing interconnected pores. This dense structure blocks chemical media, directly improving hot corrosion resistance and preventing substrate attack.
A: The ideal ratio depends on the specific powder material. For carbide coatings like WC-Co, a slightly fuel-rich ratio is preferred. This prevents excessive in-flight oxidation and minimizes the decarburization of the primary carbide phases, retaining maximum wear resistance.
A: Gas-fueled systems use hydrogen or propylene, offering straightforward parameter tuning and lower chamber pressures. Liquid-fueled systems use kerosene, generating significantly higher combustion pressures and particle velocities. Liquid systems produce denser coatings but require more complex atomization controls and maintenance.
A: Morphology dictates flowability and melting behavior. Agglomerated and sintered powders melt more easily due to their porous nature, offering high deposition rates. Cast and crushed powders require higher thermal energy. You must match morphology to flame parameters to prevent unmelted inclusions.
A: The process requires a perpendicular impact angle to transfer maximum kinetic energy. Spraying off-angle reduces impact force, leading to poor particle deformation, higher porosity, and weaker adhesion. Strict line-of-sight ensures uniform coating integrity across complex geometries.
