Thermal spray coatings extend component lifespans in high-wear and corrosive environments. Selecting the right application technology remains a high-stakes engineering decision. Procuring the wrong thermal spray system leads to inconsistent coating density, frequent nozzle degradation, and significant facility compliance issues. Navigating the procurement of HVOF spray equipment requires a rigorous evaluation of fuel types, automation capabilities, and powder feed precision. This guide provides a framework for evaluating and shortlisting industrial HVOF systems. You will learn how to align substrate compatibility, production volume, and facility readiness to ensure optimal coating performance. We focus strictly on operational parameters, equipment architecture, and facility integration to help you make an informed engineering choice.
Fuel Architecture Dictates Performance: The choice between gas-fuel and liquid-fuel HVOF systems directly impacts kinetic energy, coating density, and ongoing consumable costs.
Automation is a Prerequisite for Scale: While hand-held systems exist for specialized repairs, robotic integration is mandatory for achieving the repeatable precision required in aerospace, oil and gas, and heavy manufacturing.
Facility Readiness is Non-Negotiable: Implementation requires significant infrastructure investments, including acoustic enclosures (noise abatement) and advanced dust extraction systems to meet safety and environmental regulations.
Table of Contents
Equipment selection begins with the substrate and the coating material. Different feedstock powders require specific thermal and kinetic profiles to bond correctly. You must identify your primary feedstock materials early in the process. Common materials include tungsten carbide-cobalt, chromium carbide-nickel chromium, and various superalloys like Inconel or Hastelloy. Each material behaves differently under high-velocity combustion. Tungsten carbide requires precise temperature control to prevent the decarburization of the carbide matrix during flight.
Evaluate the required melting points for your selected powders. You must determine the kinetic energy needed to achieve optimal particle deformation upon impact. HVOF spray equipment propels materials in a semi-molten state. This specific thermal dynamic prevents carbide degradation. It retains original powder properties far better than higher-temperature thermal spray processes. If you overheat tungsten carbide, it transforms into brittle phases like W2C, which drastically reduces the wear resistance of the final component. The right equipment maintains the delicate balance between particle velocity and temperature.
Substrate preparation dictates the success of the mechanical bond. Before spraying, components require aggressive grit blasting. Operators typically use aluminum oxide grit to achieve a white metal blast finish with a specific surface profile, usually between 3 to 5 mils. The spray equipment must have the thermal capacity to pre-heat the substrate to approximately 200°F. This pre-heating step drives off surface moisture and expands the substrate slightly, which helps manage residual stresses as the coating builds up and cools.
Production requirements affect the spray rate, cooling capacity, powder feeder, and automation level of an HVOF system. Continuous high-volume production may require higher-capacity cooling and powder feeding systems, while batch production benefits from easy material changeovers and flexible operation. Equipment capacity should therefore match the actual production volume, component size, and operating schedule to avoid unnecessary costs or frequent maintenance.
Coating quality metrics serve as the ultimate benchmark for equipment performance. Establish baseline requirements for extreme corrosion and wear resistance. These baselines dictate the necessary particle velocity. Define acceptable porosity levels for your specific application. Aerospace and oil-and-gas sectors typically demand porosity levels below one percent. HVOF systems excel at achieving these dense microstructures because the kinetic energy forces the semi-molten particles to flatten completely upon impact, leaving virtually no voids.
Specify the required bond strength and micro-hardness. Standard testing methods like ASTM C633 measure the adhesion strength, which routinely exceeds 10,000 PSI for high-velocity applied carbides. You must also consider the surface finish prior to grinding. Denser coatings require less grinding time. This reduces downstream processing bottlenecks and diamond wheel wear. High compressive stresses within the coating allow for thicker application without delamination. Map these metallurgical targets directly to the equipment specifications you request from vendors.

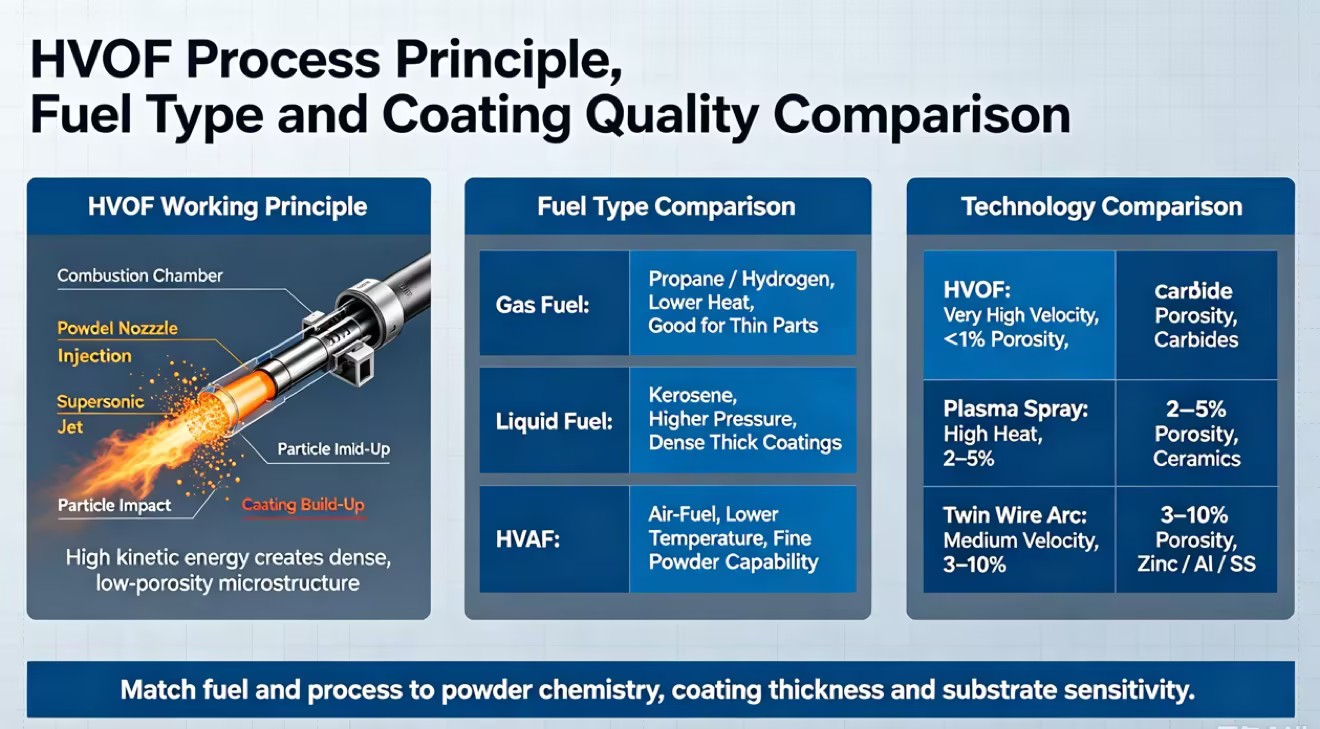

HVOF, plasma spray, and twin wire arc spray are suited to different coating materials and applications. HVOF provides high particle velocity and relatively lower heat input, making it well suited for dense, wear-resistant carbide coatings. Plasma spray uses much higher temperatures and is commonly used for ceramic coatings such as zirconia and alumina. Twin wire arc spray offers high deposition rates and is often used with zinc, aluminum, and stainless steel for corrosion protection and surface restoration. The right process should be selected based on the coating material, required density, wear resistance, and application.
Technology | Primary Energy Source | Kinetic Energy (Velocity) | Typical Porosity | Best Application |
|---|---|---|---|---|
High-Velocity Oxy-Fuel | Chemical Combustion | Very High (Supersonic) | < 1% | Tungsten/Chromium Carbides, Wear Resistance |
Plasma Spray | Electrical (Plasma Arc) | Low to Medium | 2% - 5% | Thermal Barrier Coatings, Pure Ceramics |
Twin Wire Arc Spray | Electrical (Short Circuit) | Medium | 3% - 10% | Dimensional Restoration, Corrosion Protection |
The core architecture of any high-velocity system revolves around its combustion chemistry. The fuel choice dictates the internal geometry of the spray gun, the cooling requirements, and the resulting coating density. You must choose between gas-fuel, liquid-fuel, or air-fuel configurations based on your specific metallurgical goals. Each fuel type produces a different combustion pressure and flame temperature, directly altering the flight characteristics of the injected powder.
Gas-fuel HVOF systems use fuels such as propane, propylene, hydrogen, or natural gas mixed with oxygen to generate high-velocity particles. Compared with liquid-fuel systems, they generally provide lower heat input and good operating flexibility, making them suitable for thinner coatings, complex geometries, and heat-sensitive components. Proper gas storage, handling, and safety controls are important for reliable operation.
Liquid-fuel HVOF systems typically use kerosene and oxygen to generate high combustion pressure and particle velocity, making them suitable for dense, wear-resistant coatings and demanding industrial applications. These systems produce more heat than many gas-fuel systems, so effective water cooling and regular maintenance of the spray gun, nozzle, combustion chamber, and fuel system are important for maintaining stable spraying and consistent coating quality.
HVAF is an alternative to HVOF for applications such as carbide coatings. Instead of pure oxygen, HVAF uses compressed air mixed with fuel gas, producing a lower combustion temperature that can help reduce powder oxidation and carbide degradation. This makes HVAF suitable for producing thin, dense, and smooth coatings, while the choice between HVOF and HVAF should depend on the coating material, required thickness, spray rate, and final surface requirements.
The method of manipulating the spray gun heavily influences coating consistency. Thermal spray is highly sensitive to standoff distance, traverse speed, and spray angle. Variations in these parameters lead to uneven thickness, varying porosity, and inconsistent bond strength. You must decide between manual operation and robotic automation based on your production environment and quality control requirements.
Manual HVOF systems are mainly used for field repairs, low-volume work, and components that are difficult to handle with robotic systems. They provide greater flexibility for confined spaces and large fixed equipment, but coating consistency depends more heavily on operator control of standoff distance, spray angle, and movement speed. Proper protective equipment and safety controls are also important because the process generates high noise, heat, and metal dust.
Robotic HVOF systems are widely used for high-volume production where consistent coating quality is important. Robots can precisely control standoff distance, spray angle, and traverse speed, helping maintain uniform coating thickness and improve powder deposition efficiency. They can also work with lathes, turntables, and other part-handling equipment while allowing operators to monitor the spraying process from a safer control area.
When shortlisting vendors, you must evaluate the internal mechanics of the equipment. Surface-level specifications often hide critical engineering differences. Focus your evaluation on powder feeding, gun thermodynamics, and software integration. These three areas dictate the daily reliability of the system and the consistency of the applied coating.

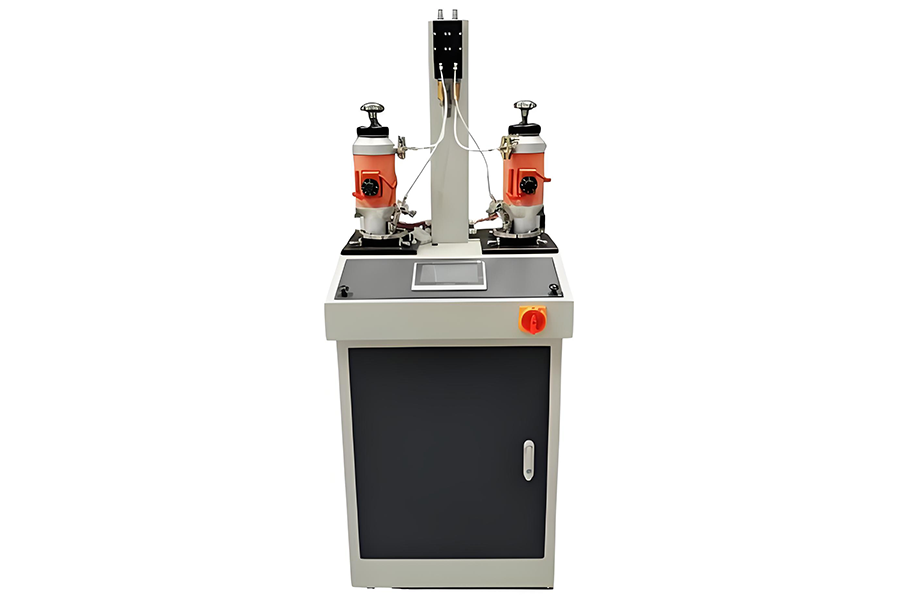

The powder feeder acts as the heart of the spray system. Inconsistent powder delivery causes pulsing in the spray plume. This pulsing creates layered defects in the final coating. Assess the accuracy of the mass-flow control systems. Modern feeders use closed-loop weight-loss scales to monitor and adjust powder flow in real-time. This ensures a constant feed rate regardless of hopper volume or powder density variations.
Evaluate the feeder's ability to handle varying powder morphologies. Thermal spray powders come in different forms, including agglomerated and sintered, cast and crushed, or spheroidal. Some powders flow like water, while others tend to clump due to static or moisture. The feeder must handle these variations without clogging. Look for systems with mechanical agitators, fluidizing gas inputs, and easily replaceable carrier gas lines. The carrier gas, usually argon or nitrogen, must be precisely metered to inject the powder into the combustion chamber at the exact right pressure.
High-velocity combustion generates extreme internal temperatures. The gun design must manage this heat to prevent catastrophic failure. Analyze the efficiency of the water-cooling jacket design. The cooling channels must wrap closely around the combustion chamber and nozzle. Poor cooling leads to powder melting and adhering to the nozzle walls, a condition known as "spitting." Spitting ejects large, unmelted globs of material into the coating, ruining the surface finish and requiring immediate rework.
Evaluate the expected lifespan of critical consumables. Ask vendors for data on nozzle, combustion chamber, and O-ring longevity under continuous operation. Liquid-fuel guns typically require more frequent consumable changes than gas-fuel guns due to the higher combustion pressures. Review the maintenance procedures for replacing these parts. A gun designed for quick, tool-less consumable changes significantly reduces production downtime. Robust cooling and durable consumables ensure consistent particle velocity over long production runs.
The control console serves as the brain of the operation. Legacy systems used manual rotameters and pressure dials, which relied heavily on operator intuition. Modern industrial systems require PLC-based, closed-loop control. These systems automatically monitor and adjust gas flows, pressures, and cooling water temperatures in real-time using mass flow controllers. If a parameter drifts out of tolerance, the system automatically corrects it or safely shuts down the process before coating quality degrades.
Ensure the software allows precise programming of all variables. The interface should be intuitive for operators but secure enough to lock down validated spray recipes. Assess the data logging capabilities. Aerospace and defense contracts require complete traceability. The system must log every parameter for every second of the spray run, exporting the data to CSV files for quality assurance records. This data is vital for predictive maintenance. By analyzing trends in gas pressure or cooling water temperature, you can replace consumables before they fail mid-run.
Installing high-velocity thermal spray equipment requires extensive facility preparation. You cannot simply place these machines on an open shop floor. The process generates extreme noise, hazardous dust, and massive heat loads. Failing to prepare your facility leads to safety violations, equipment failure, and production delays. Engineering controls must be established before the equipment arrives on site.
Supersonic combustion generates severe acoustic hazards. The process routinely produces noise levels exceeding 120 to 130 decibels. This level of noise causes immediate and permanent hearing damage. It disrupts all other operations within the facility. Open-air spraying is strictly prohibited in modern manufacturing environments. You must isolate the process entirely.
Install engineered soundproof spray booths. These enclosures utilize specialized acoustic panels filled with mineral wool, heavy-duty interlocking doors, and sound-baffled ventilation intakes. The booth must reduce the external noise to acceptable OSHA levels, typically below 80 decibels. The enclosure must integrate seamlessly with your automated part-handling equipment. Consider material flow when designing the booth layout. Parts must enter and exit the acoustic chamber efficiently without compromising the sound seal. Viewing windows must utilize multi-pane, acoustically rated welding glass.
Thermal spray generates microscopic metal dust. When spraying materials like chromium carbide or superalloys, this dust contains hazardous compounds. Hexavalent chromium and cobalt exposure present severe health risks. You must capture and filter this dust at the source to ensure OSHA and EPA compliance. The extraction system must pull sufficient air volume through the acoustic enclosure to maintain negative pressure.
Implement high-capacity, ATEX-rated dust collection systems. You must choose between wet scrubbers and dry cartridge collectors. Wet systems are safer for reactive metals like aluminum or titanium, which pose explosion risks. Dry systems are highly efficient for carbides but require strict grounding, explosion venting protocols, and HEPA secondary filters. Never underestimate the required capacity of your extraction system. A standard robotic cell often requires extraction rates exceeding 5,000 CFM to maintain clear visibility and safe breathing air inside the booth.
The spray gun relies entirely on continuous, high-pressure water cooling. Inadequate cooling leads to immediate O-ring failure, internal melting, and potential safety hazards. You cannot rely on standard municipal water pressure or shared facility cooling loops. The system requires dedicated, precision temperature control to maintain the gun's internal geometry during hours of continuous combustion.
Size and install dedicated industrial chillers. The chiller must handle the specific BTU output of the chosen gun architecture. Liquid-fuel guns demand significantly larger chillers than gas-fuel guns. The cooling water must be treated or deionized to prevent scale buildup inside the gun's micro-channels. Scale acts as an insulator, reducing cooling efficiency and destroying the gun. Install flow switches, conductivity meters, and temperature sensors on the return lines to trigger automatic system shutdowns if cooling is compromised.
Conduct a comprehensive facility audit to assess your current power, cooling, and exhaust readiness against the strict requirements of industrial spray systems.
Request physical sample coatings applied to your specific substrate materials from your shortlisted equipment vendors to verify density and bond strength.
Submit these coated samples to an independent metallurgical laboratory for porosity, adhesion, and micro-hardness testing.
Require detailed, itemized engineering drawings that explicitly separate the core system, robotic integration, acoustic enclosures, and dust extraction ductwork.
A: Coating quality depends on particle velocity and temperature. These are controlled by the fuel-to-oxygen ratio, combustion chamber pressure, powder feed rate, and carrier gas flow. External variables include the gun's standoff distance from the part, the traverse speed of the robot, and the angle of impingement. Strict control over these parameters ensures consistent density and bond strength.
A: Nozzle lifespan varies heavily based on fuel type, operating pressure, and powder morphology. Gas-fuel nozzles can last between 40 to 100 hours of continuous spray time. Liquid-fuel nozzles typically experience higher wear and require replacement every 20 to 50 hours. Aggressive, crushed powders accelerate internal wear faster than smooth, agglomerated powders.
A: Liquid fuel systems generate higher combustion pressures and gas velocities. This results in higher particle kinetic energy. Consequently, liquid systems produce denser coatings with lower porosity and higher compressive stresses. This makes them ideal for thick coatings. Gas systems apply less heat, making them better suited for thin-walled components prone to thermal distortion.
A: Yes, manual systems can be integrated with robotics. The control console must support external PLC communication. The robot needs to interface with the spray controller to trigger the gas flows and powder feed simultaneously with its motion program. Upgrading to a fully closed-loop automated console is recommended during a robotic retrofit.
A: Installations require a soundproof acoustic enclosure to manage 130 dB noise levels. You need a high-capacity, ATEX-rated dust extraction system to handle hazardous metal fumes. Dedicated industrial chillers are mandatory for gun cooling. You must install secure, high-pressure gas manifolds and bulk liquid fuel storage according to local fire codes.
A: Deposit efficiency is the ratio of powder that successfully adheres to the part versus the total powder consumed. You measure it by weighing the component before and after spraying, then dividing that weight gain by the total weight of powder fed through the hopper during the run. Higher kinetic energy and optimized standoff distances improve this efficiency.
