Applying dense, wear-resistant, and corrosion-resistant coatings inside confined cylindrical geometries presents a severe engineering challenge. Standard line-of-sight thermal spray processes fail in these environments. Conventional equipment cannot operate within tight internal diameters due to physical size constraints, extreme heat accumulation, and improper spray angles. When operators force standard external torches into confined spaces, the supersonic exhaust plume rebounds off opposing walls, creating violent turbulence that disrupts particle trajectory. This inevitably leads to compromised coating integrity or catastrophic equipment failure. Solving this requires highly specialized approaches tailored specifically for internal geometries. Successful implementation demands a rigorous evaluation of miniaturized torches, modified process parameters, advanced thermal management systems, and precise robotic manipulation. By engineering these variables, facilities achieve OEM or repair specifications even in the most restrictive bores. Understanding how to properly deploy HVOF internal diameter coating technology ensures optimal component lifespan and performance in critical industrial applications.

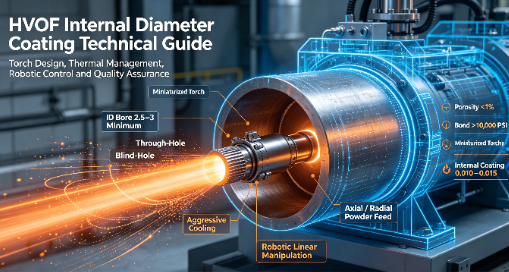

Minimum ID Constraints Dictate Equipment: The physical internal diameter of the component (often starting at 2.5 to 3 inches) strictly limits torch selection, dictating the use of specialized radial or axial miniaturized ID guns.
Thermal Management is the Primary Failure Point: Confined spaces trap heat; without aggressive, engineered cooling strategies (both torch and substrate), coatings will spall and substrates will warp.
Spray Angle Compromises Require Parameter Shifts: Because a perfect 90-degree impingement angle is rarely achievable in deep bores, kinetic energy and powder characteristics must be optimized to compensate for shallow impact angles.
Operational Maintenance is Heavy: ID HVOF torches experience faster nozzle wear and require more frequent consumable replacement than external torches, directly impacting production scalability.
Table of Contents
Bore depth and internal diameter dictate the entire application strategy from the outset. A shallow bore allows for standard angled extensions, while deep bores require dedicated miniaturized torches. We define deep bores as those where the depth exceeds the diameter by a ratio of 2:1 or greater. These deeper profiles necessitate robotic manipulation over fixed-lathe setups to maintain strict tolerances. As the torch travels deeper into the cylinder, the extraction of exhaust gases becomes exponentially more difficult. The length-to-diameter (L/D) ratio determines the required rigidity of the torch extension lance. A high L/D ratio requires a heavy-duty, vibration-dampened lance to prevent the torch head from oscillating during application. Any vibration alters the stand-off distance rapidly, resulting in inconsistent coating density and localized overheating.
Blind holes present a drastically different challenge compared to through-holes. Through-holes allow exhaust gases to escape naturally out the opposite end, provided you install sufficient vacuum extraction. Blind holes trap supersonic gases and un-melted particles at the bottom of the bore. This creates a high-pressure zone that pushes back against the torch plume. This backpressure disrupts the flame dynamics and makes evacuation highly complex. Operators often have to insert secondary extraction tubes down the bore alongside the torch to pull the turbulent gases out, which further limits the available space and restricts the minimum coatable diameter.
Measure the exact minimum internal diameter, accounting for any internal steps, threading, or retaining ring grooves that might obstruct torch access.
Calculate the L/D ratio to determine the required rigidity of the torch extension and the necessary stroke length of the linear actuator.
Identify whether the bore is a through-hole or a blind hole to engineer the appropriate exhaust extraction and airflow management system.
Determine the maximum allowable substrate temperature based on the specific base metal alloy to establish cooling requirements.
Internal applications demand strict adherence to baseline coating properties to ensure long-term performance in harsh environments. Porosity must remain below 1% for high-velocity oxygen fuel applications. If porosity exceeds this threshold, corrosive media—such as drilling muds or hydraulic fluids—will penetrate the coating, attack the base metal, and cause massive spallation. Bond strength typically needs to exceed 10,000 psi (tested via ASTM C633 standards) to prevent delamination under heavy mechanical load. We verify these metrics using companion coupons coated simultaneously under identical conditions, as you cannot easily perform destructive testing on the actual production cylinder.
Internal coatings often face harsher localized environments than external surfaces. Components like downhole pump barrels, hydraulic cylinders, and extrusion dies endure extreme friction, high pressures, and highly corrosive fluids simultaneously. Meeting strict microhardness specifications (often exceeding 1000 HV0.3 for tungsten carbide matrices) ensures these internal surfaces survive operational stresses. The coating must exhibit exceptional cohesive strength to withstand the shear forces generated by pistons or seals moving rapidly within the bore. Achieving these properties requires precise control over particle melting states and impact velocities, which is inherently more difficult in confined spaces where standard parameters do not apply.

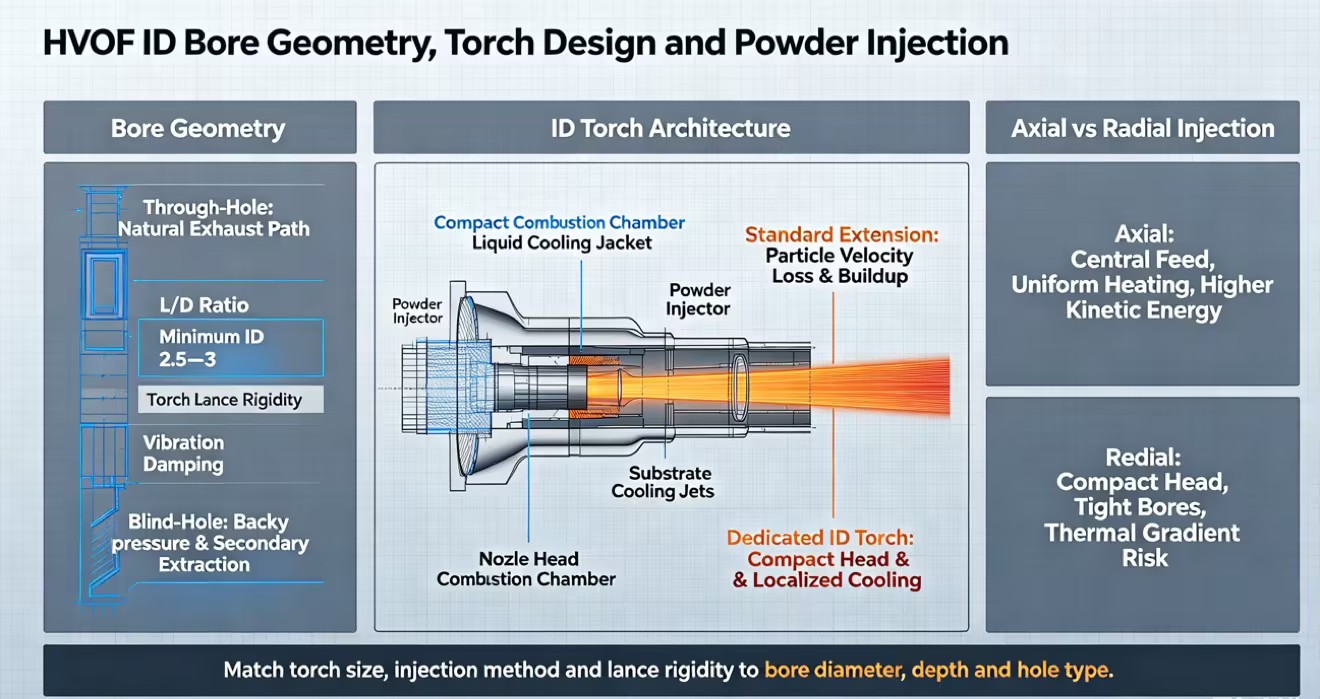

Dedicated ID torches feature a fundamentally different physical architecture than standard guns fitted with extension nozzles. A standard external torch might generate 100 to 150 kW of thermal energy, which is impossible to manage inside a 4-inch pipe. Miniaturized torches scale this down, integrating a compact combustion chamber directly into a low-profile head. This allows the actual flame generation to occur deep within the bore. Standard extensions simply route the exhaust plume from a larger external gun through a long, angled tube. Dedicated ID torches offer superior maneuverability and localized cooling capabilities, as the cooling water circulates directly around the combustion zone.
Extensions often suffer from severe kinetic energy loss. As the heated particles travel down the long extension tube, they lose velocity and thermal mass. By the time they exit the nozzle, they lack the kinetic energy required to form a dense, high-bond coating. Furthermore, extensions are highly prone to powder buildup inside the barrel. Un-melted particles stick to the inner walls of the extension tube, accumulating until a large chunk breaks loose. This chunk then embeds itself into the applied coating, causing a massive structural defect that requires stripping and recoating the entire part.
Powder injection design heavily influences coating quality and particle heating efficiency in confined spaces. You must choose between axial and radial injection based on the specific geometric constraints of the bore.
Radial powder injection introduces the feedstock from the side of the nozzle, injecting it perpendicularly into the gas stream. This works exceptionally well for ultra-tight spaces because it reduces the overall length of the torch head. However, radial injection carries risks of uneven heating and particle trajectory deviation. The powder must penetrate the high-velocity gas stream at an angle, meaning particles on the far side of the plume receive less heat than those on the near side.
Axial powder injection feeds the material directly down the center of the combustion chamber. This delivers superior particle velocity and highly uniform heating, resulting in denser coatings with tighter microstructures. The particles spend more time in the hottest part of the flame. The trade-off is that axial torches typically require a slightly larger physical footprint, which may restrict their use in the absolute smallest bore diameters.
Feature | Axial Powder Injection | Radial Powder Injection |
|---|---|---|
Heating Uniformity | Excellent. Particles travel through the core of the flame. | Moderate. Particles enter from the side, causing thermal gradients. |
Particle Velocity | Maximum kinetic energy transfer. | Slightly reduced due to perpendicular entry angle. |
Torch Profile Size | Larger footprint, requires more axial clearance. | Highly compact, ideal for the tightest internal diameters. |
Clogging Risk | Lower risk with proper carrier gas regulation. | Higher risk of buildup on the opposing nozzle wall. |
Confined spaces trap massive amounts of thermal energy, making thermal management a primary equipment selection factor. Liquid-cooled torches are absolutely mandatory for deep bore applications. Air-cooled designs simply cannot dissipate heat fast enough in these environments, leading to rapid torch degradation, melted O-rings, and catastrophic failure of internal torch components. You must utilize a closed-loop water chiller capable of handling high heat loads. The water passages in an ID torch are exceptionally narrow. Using poor quality water leads to scale buildup, which blocks the flow and causes the torch to melt in seconds. We strictly use distilled water treated with industrial corrosion inhibitors.
Integrated air jets are necessary for simultaneous substrate cooling and exhaust gas purging. These jets mount directly on the torch head, blasting compressed air (typically at 90-100 PSI) onto the newly coated surface immediately behind the torch plume. This active cooling prevents localized overheating and metallurgical degradation in the bore. It ensures the base metal retains its original mechanical properties and prevents the coating from spalling due to thermal expansion mismatches.
Manual operation is completely impossible for internal applications due to severe safety hazards and extreme precision requirements. Operators cannot physically see inside the bore during spraying, nor can they maintain the exact stand-off distance required by hand. Integrating rigid, programmable linear actuators or 6-axis industrial robots is essential for success. You mount the ID torch on the robotic arm or linear slide, while the cylindrical part rotates in a precision lathe.
These automated systems maintain strict stand-off distances and consistent traverse speeds deep within the bore. You program the exact step size (e.g., 3 mm of linear travel per revolution of the lathe). Any slight hesitation or deviation in movement will cause an immediate heat spike, potentially ruining the part. If the lathe stops spinning while the torch is firing, the intense heat will melt a hole through the substrate in under two seconds. Hardware interlocks between the lathe, the robot, and the torch controller are mandatory to prevent this.
Off-angle spraying fundamentally alters the physics of particle impact and coating formation. In internal applications, achieving a perfect 90-degree impingement angle is rarely possible due to the physical size of the torch head relative to the bore diameter. Operators often must spray at 45 to 70 degrees. This off-angle trajectory reduces the normal component of velocity—the perpendicular impact force necessary for achieving high density and optimal bond strength. We refer to this as the cosine effect on kinetic energy.
To compensate for this loss of impact force, you must adjust gas pressures and carrier gas flow to maximize the kinetic energy of the particles. Increasing the total gas flows (adjusting the oxygen-to-fuel ratio) boosts the combustion chamber pressure. This drives the particles harder into the substrate, compensating for the shallow impact angle and maintaining the required coating density. You also adjust the carrier gas flow to narrow the plume, ensuring the particles remain tightly focused as they strike the angled surface.
The operational window for stand-off distance shrinks significantly in internal applications compared to external spraying. External applications typically use an 8 to 12-inch stand-off. Internal applications reduce this to just 2 to 4 inches (50-100 mm), depending on the specific torch design. This extremely close proximity transfers intense, concentrated heat directly to the substrate. The dwell time of the particle in the flame is cut in half, requiring rapid melting.
Higher traverse speeds and rotational speeds are absolutely necessary to prevent substrate overheating. The part must rotate rapidly (often 100 to 300 RPM), and the torch must move swiftly along the linear axis to distribute the thermal load evenly. This rapid movement directly impacts the deposition rate per pass. Because you are moving faster, you deposit less material per pass, requiring significantly more passes to achieve the final target thickness. You must program the robot to execute these high-speed passes flawlessly without inducing vibration.
Particle Size Distribution (PSD) plays a critical role in the success of internal applications. Because the stand-off distance is so short, the particles have very little time to absorb heat from the flame. If you use standard large powder cuts (e.g., 45-90 µm), the particles will not melt completely. They will hit the substrate cold, bounce off, and waste expensive feedstock. Finer powder cuts, such as 15-45 µm or even 10-30 µm, are required.
These finer particles possess less mass, allowing them to accelerate faster and melt more completely within the highly restricted dwell time. However, fine powders inherently flow poorly and increase the risk of nozzle clogging. They tend to pack together in the feed lines. Precise carrier gas regulation (using Argon or Nitrogen) and high-quality powder feeders equipped with volumetric discs or mass flow controllers are required. This mitigates the clogging risk and ensures a smooth, uninterrupted flow of material to the torch.
Exceeding the substrate's tempering temperature leads to severe metallurgical degradation, potentially rendering the component useless. Confined bores amplify this risk by trapping the heat generated by the supersonic plume. If the base metal exceeds 300°F (150°C), you risk altering its heat treatment and reducing its yield strength. Mitigation requires aggressive, engineered cooling strategies.
Implement cryogenic cooling using liquid carbon dioxide or liquid nitrogen directed precisely at the application zone. We run a dedicated copper line down the bore alongside the torch lance, blasting liquid CO2 directly onto the part immediately after the spray spot passes. Alternatively, use aggressive compressed air purging synchronized with the torch movement to continuously flush hot gases out of the cylinder. You must monitor the part temperature continuously using infrared pyrometers mounted at the bore exit.
Poor exhaust extraction causes un-melted powder and dust to bounce off the opposing substrate walls. This loose powder becomes entrapped in the advancing coating layer, ruining its structural integrity, causing massive porosity spikes, and leading to premature failure in the field. The turbulent gases also disrupt the flame, causing it to flicker or extinguish entirely.
Mitigation involves designing custom extraction plenums at the bore exit. You hook up a high-capacity dust collector (e.g., 5000 CFM or greater) to the back of the pipe. This specialized tooling maintains a strong negative pressure environment inside the cylinder. It actively pulls overspray and exhaust gases away from the application zone before they can interfere with the coating process. For blind holes, you must engineer a dual-tube system that blows clean air in while vacuuming dirty air out simultaneously.
Compressive stresses build up differently in internal geometries compared to external diameters. As the coating cools and contracts inside a bore, it pulls away from the substrate. If you apply the coating too thick, the accumulated compressive stress will exceed the bond strength, causing the coating to buckle and spontaneously delaminate from the wall.
Mitigation requires strict control of interpass temperatures, ensuring the part remains within a specific thermal window throughout the entire process. You must also strictly limit the maximum coating thickness to manage residual stress accumulation. While external coatings might reach 0.040 inches (1 mm) thick, we generally limit internal coatings to 0.010 to 0.015 inches (250-380 µm) to prevent spalling. If a thicker dimension is required, you must build up the base metal via welding or sleeving before applying the thermal spray topcoat.
Implementation Risk | Primary Cause | Mitigation Strategy |
|---|---|---|
Substrate Overheating | Short stand-off distance and trapped exhaust gases in confined bores. | Implement cryogenic cooling (CO2/Nitrogen) and high-speed traverse rates. |
Coating Entrapment | Poor exhaust evacuation causing particle bounce and turbulence. | Install custom extraction plenums to create strong negative pressure. |
Spontaneous Delamination | Excessive compressive stress buildup in internal cylindrical geometry. | Enforce strict interpass temperature control and maximum thickness limits. |
Porosity Spikes | Loss of kinetic energy due to shallow impingement angles. | Optimize combustion pressures and utilize finer particle size distributions. |
Inspecting internal coatings post-application is notoriously difficult. Standard external inspection tools simply do not fit inside small bores, and visual confirmation is impossible without specialized equipment. You cannot use standard micrometers or surface profilometers deep inside a 3-inch pipe.
Use high-resolution videoscopes or borescopes equipped with LED lighting for detailed visual inspection of surface finish and macro-porosity deep within the cylinder. Specialized internal eddy current probes help verify coating thickness inside the cylinder without destroying the part. Operators must frequently rely on companion coupons. We mount a small steel coupon inside a dummy ring at the end of the bore, coat it simultaneously under identical conditions, and then section it for destructive metallurgical evaluations in the lab.
Production realities dictate that internal coating is inherently slower and more complex than external applications. Strict heat management constraints force lower deposition rates and longer cooling intervals between passes. A standard external torch might spray 80 grams of powder per minute. An internal torch might only spray 15 to 30 grams per minute to prevent overheating the confined space.
Facilities must evaluate the operational trade-off between longer manufacturing cycle times and the superior wear life of the finished component. Rushing the internal coating process by increasing feed rates or ignoring temperature limits guarantees catastrophic coating failure. Quality must always take precedence over speed in confined space applications. You must build these extended cycle times into your production schedule.
Miniaturized nozzles and compact combustion chambers experience highly accelerated wear. The intense heat radiates off the bore wall directly back into the torch face. This back-radiation oxidizes copper air caps, bakes O-rings until they become brittle, and degrades hardware significantly faster than standard external setups.
Facilities must factor in the downtime required for frequent torch rebuilds and nozzle replacements during high-volume production runs. You often have to rebuild an ID torch after every 10 to 20 hours of arc time. Establishing rigorous, preventative maintenance schedules prevents catastrophic torch failure mid-process. If a water seal fails while the torch is inside the bore, it will flood the cylinder, ruin the coating, and potentially damage the robotic equipment.
Deploying HVOF internal diameter coating remains the premier choice for critical internal wear and corrosion applications. Success depends entirely on proper torch access, aggressive thermal management, and flawless robotic integration. Decision-makers should select equipment vendors based on their proprietary cooling technologies, robust torch designs, and proven track records in specific bore dimensions. By strictly controlling process parameters and respecting the geometric constraints of the component, you ensure a high-density, high-bond coating that extends the service life of critical industrial parts.
Initiate a comprehensive feasibility study utilizing coupon testing at the exact impingement angle expected in production to verify bond strength and porosity.
Execute a full prototype run on a scrap cylinder to validate thermal management strategies, cooling jet placement, and exhaust evacuation efficiency.
Establish precise NDT inspection protocols using specialized internal eddy current probes and borescopes before approving full-scale production.
Standardize preventative maintenance schedules for miniaturized torch consumables to minimize unplanned downtime and prevent mid-process equipment failures.
A: Specialized ID torches can typically access bores as small as 2.5 to 3 inches (65-75mm). However, maximum achievable depths are severely limited at this extreme minimum diameter due to equipment size constraints and the inability to effectively evacuate exhaust gases.
A: It offers superior wear resistance and eliminates hazardous hexavalent chromium environmental issues. However, it requires strict line-of-sight access. Plating can coat complex non-line-of-sight geometries but lacks the extreme mechanical bond strength and density of thermal spray.
A: While a perfect 90-degree angle is ideal, internal applications often necessitate spraying at 45 to 70 degrees due to space constraints. Process parameters must be carefully adjusted to maintain coating density and bond strength at these shallower impact angles.
A: Confined bores trap the extreme heat of the supersonic exhaust plume. This requires aggressive internal cooling to prevent substrate warping and coating spallation, which is not an issue on external surfaces where heat dissipates freely into the surrounding atmosphere.
A: It is highly difficult and generally limited to very shallow depths. Exhaust gases and overspray must have a clear path to evacuate. Without proper extraction, the coating becomes contaminated with un-melted particles and the torch flame can be extinguished.
A: Finer particle size distributions, such as 15-45 µm, are typically preferred. These finer cuts ensure adequate heating and particle velocity over the much shorter stand-off distances required in confined spaces, preventing un-melted particle entrapment.
A: Inspectors use specialized internal eddy current probes and long-reach ID micrometers. They also rely heavily on external coupon correlation, coating a sample piece simultaneously to verify thickness and integrity without destroying the actual production part.
