Industrial components operating in environments exceeding 500°C face accelerated degradation. Standard wear coatings rapidly oxidize and fail under these extreme conditions. Facilities experience unplanned downtime, catastrophic part failure, and frequent replacement cycles. These issues stem from high-temperature fretting, solid particle abrasion, hard surface sliding wear, and severe oxidation. You need a reliable method to protect essential infrastructure. Specifying an HVOF chromium carbide coating bridges the gap between extreme heat resistance and mechanical durability. It offers a verifiable solution for extending component lifecycles in severe environments. This specialized surface treatment provides a robust barrier against aggressive wear mechanisms. Engineers rely on this technology to maintain dimensional stability under severe thermal stress. We will evaluate how to apply this coating for your most demanding high-temperature applications, ensuring operational continuity and mechanical reliability.

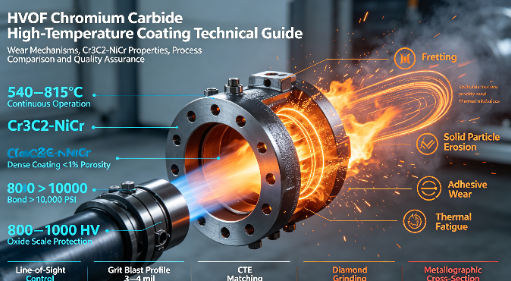

Optimal Temperature Range: Engineered specifically for continuous operation in environments ranging from 540°C to 815°C (1000°F to 1500°F).
Material Superiority: Outperforms tungsten carbide in high-heat applications due to exceptional oxidation and corrosion resistance, preventing the matrix degradation that causes other carbides to fail above 500°C.
Process Advantage: The HVOF (High-Velocity Oxygen Fuel) process yields exceptionally high coating density, low porosity, and superior mechanical bond strength without altering the substrate's metallurgy.
Application Constraint: Relies on line-of-sight application, requiring precise geometric evaluation and surface preparation to ensure uniform coating thickness and adhesion.
Table of Contents
High temperatures compound specific wear mechanisms across industrial applications. Fretting wear accelerates when metal surfaces experience micro-movements under thermal stress. These microscopic oscillations break down protective oxide layers on standard alloys. Solid particle erosion strips away unprotected base metals. High-velocity particulates, such as fly ash or catalyst fines, impact surfaces and cause severe material loss. Hard surface sliding friction generates localized heat spikes. These temperature spikes induce galling and adhesive wear between mating components, especially in stainless steel assemblies.
Oxidation acts as a catalyst for these destructive forces. It weakens the structural integrity of standard steel alloys by converting the surface metal into brittle oxides. Corrosive gas exposure further degrades the structural matrix. Rapid thermal cycling induces fatigue and micro-cracking. Components expand and contract repeatedly during operational cycles, causing surface fissures. You must evaluate the specific combination of these forces in your operating environment. Identifying the primary wear mechanism dictates the required coating properties.
Wear Mechanism | Primary Cause | High-Temperature Effect | Typical Component Affected |
|---|---|---|---|
Fretting Wear | Vibration and thermal expansion | Accelerated oxide layer spallation | Turbine blade roots, heat exchanger tubes |
Solid Particle Erosion | High-velocity particulate impact | Rapid material removal and thinning | Boiler tubes, exhaust fans, cyclone diplegs |
Adhesive Wear | Metal-to-metal sliding friction | Severe galling and cold welding | High-temperature gate valves, pump shafts |
Thermal Fatigue | Rapid heating and cooling cycles | Micro-cracking and surface fissures | Continuous casting rolls, furnace components |
A protective layer must possess high mechanical bond strength. This prevents spallation under severe thermal stress. The coating must remain firmly attached during rapid temperature fluctuations. Industry standards require bond strengths exceeding 10,000 psi for demanding applications. Low porosity is equally essential for long-term survival. A dense structure blocks corrosive media effectively. It stops oxidizing agents from penetrating through the coating.
This barrier function protects the vulnerable base metal underneath. Interconnected porosity leads to rapid subsurface corrosion. This subsurface attack causes premature component failure by undermining the coating adhesion. The coating must also maintain its micro-hardness at elevated temperatures. Standard alloys soften significantly above 500°C, losing their ability to resist abrasion. A successful protective layer resists this thermal softening. It must provide a continuous, unbroken shield against aggressive environmental factors.
Verify the operating temperature does not exceed the coating's maximum threshold.
Analyze the particulate size and velocity in erosive environments.
Determine the frequency and severity of thermal cycling.
Assess the chemical composition of the surrounding gases or fluids.

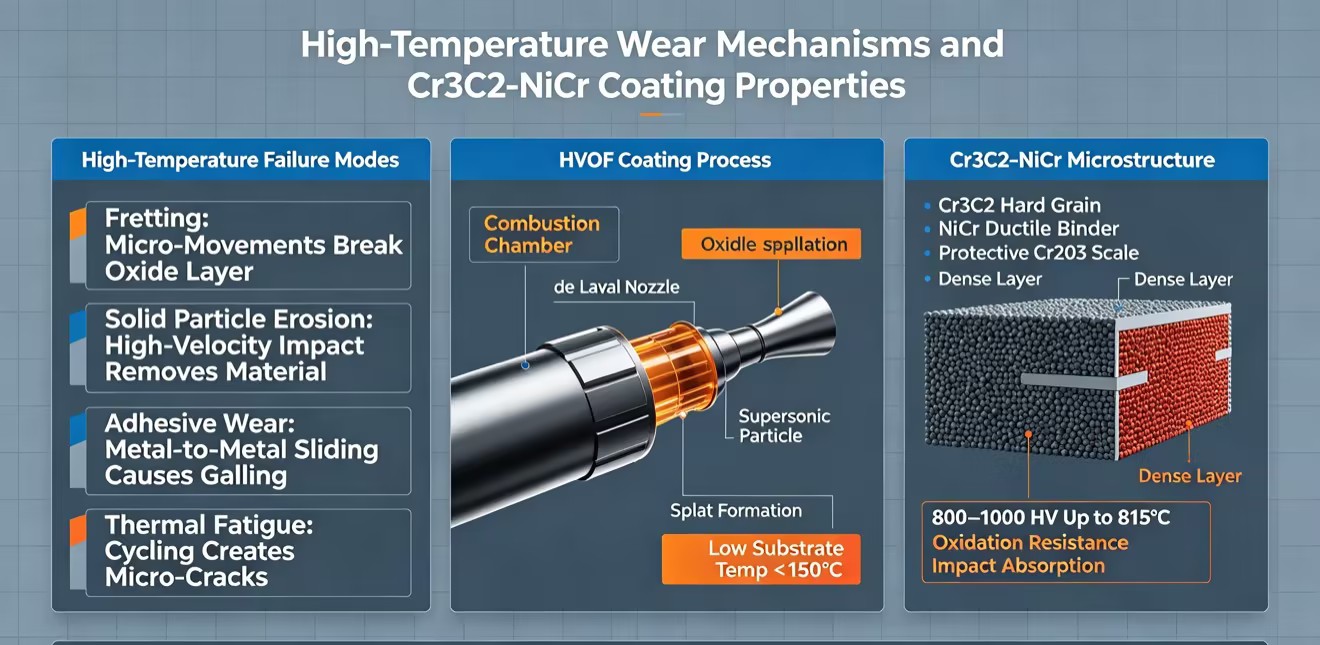

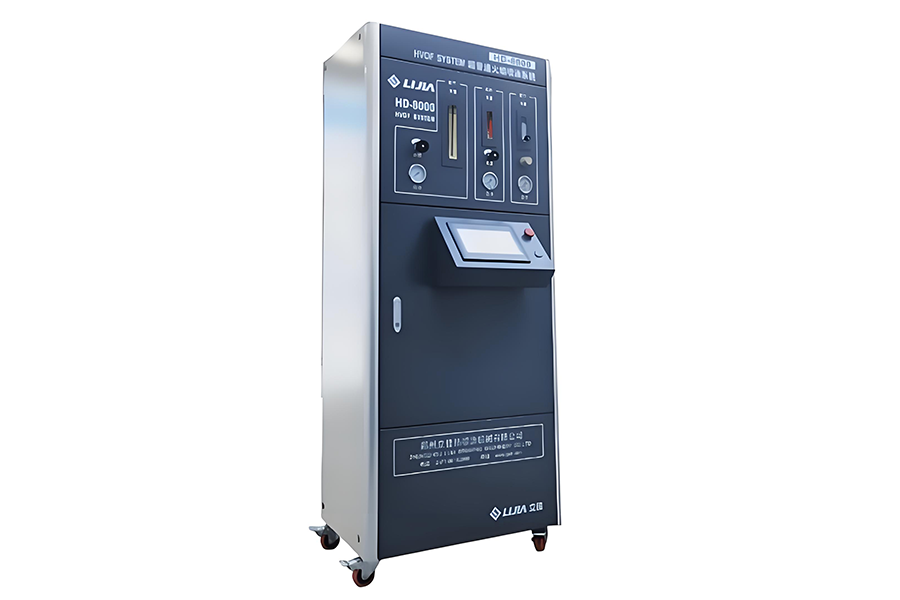

Thermal spray technology relies on a balance of kinetic and thermal energy. The HVOF process prioritizes kinetic energy over extreme heat. Oxygen and fuel gas combust in a high-pressure chamber. The expanding gases accelerate through a converging-diverging nozzle. Particles reach supersonic speeds before impacting the substrate. This high-velocity impact generates immense kinetic energy. The powder particles flatten into thin splats upon striking the surface.
This creates a highly dense, tightly packed microstructure. The process maintains low substrate temperatures during application. Base metals typically remain under 150°C (300°F). This low heat input prevents metallurgical changes. It eliminates warping and distortion in the base material, which is vital for precision components. The resulting physical characteristics include high density and favorable compressive residual stress. The mechanical bonding is exceptionally robust. This compressive stress prevents coating fatigue during thermal cycling.
The matrix composition relies on extremely hard chromium carbide particles. These particles are embedded in a ductile nickel-chromium binder. The Cr3C2 particles provide exceptional wear resistance. The NiCr binder provides essential oxidation resistance. It protects the substrate from corrosive gases and chemical attack. This binder forms a protective chromium oxide scale at high temperatures.
This scale prevents further oxidation of the underlying matrix. The structure maintains integrity up to 815°C (1500°F). The chromium carbide particles retain their hardness in extreme heat. This combination delivers superior wear resistance compared to standard industrial alloys. The ductile binder absorbs impact energy from solid particles. It prevents the brittle fracture common in pure ceramic coatings. This dual-phase microstructure offers the perfect balance of hardness and toughness. It withstands aggressive abrasion while resisting chemical degradation.
Hard chromium carbide (Cr3C2) particles for severe abrasion resistance.
Ductile nickel-chromium (NiCr) binder for impact toughness and shock absorption.
Formation of a self-healing chromium oxide scale at elevated temperatures.
Retention of high micro-hardness (typically 800-1000 HV) up to 815°C.
Superior resistance to sulfur-bearing and corrosive industrial gases.
Power generation facilities rely on this coating for heavy infrastructure. It protects boiler tubes from severe fly ash erosion. Steam turbine valves maintain precise tolerances under high-pressure steam flow. Exhaust fans exposed to particulate-laden gases benefit from this extreme heat resistance. Petrochemical and refining operations use it to extend component life. Fluid catalytic cracking (FCC) units require severe abrasion protection.
High-temperature gate valves and pump seals perform better with this surface treatment. Cyclone diplegs facing corrosive gases and catalyst abrasion require this specific protection. Aerospace manufacturing depends on these coatings for turbine components. Jet engine exhaust systems demand strict dimensional stability under thermal stress. Steel manufacturing utilizes this coating on furnace rolls. Continuous casting equipment operates reliably under severe thermal cycling. These diverse applications prove the versatility of the material across multiple heavy industries.
Temperature thresholds dictate material selection in thermal spray applications. Tungsten carbide oxidizes rapidly when temperatures exceed 500°C. Even advanced Tungsten Carbide Cobalt Chrome matrices degrade in extreme heat. The chemical mechanism causes the tungsten carbide to convert into tungsten oxide (WO3). This conversion involves a significant volume expansion.
The matrix becomes brittle and loses structural integrity. The coating eventually spalls off the substrate in large flakes. Tungsten carbide is undeniably harder at room temperature. However, an HVOF chromium carbide coating is the mandatory choice for high-heat environments. It maintains wear resistance where tungsten carbide fails catastrophically. Engineers must prioritize temperature resistance over room-temperature hardness. Selecting tungsten carbide for environments above 500°C guarantees premature failure. Chromium carbide provides the necessary chemical stability for these severe applications.
Different thermal spray processes yield varying microstructural results. HVOF offers a specific particle velocity and flame temperature profile. It utilizes pure oxygen for combustion, generating high kinetic energy. HVAF uses compressed air instead of oxygen. This alters the combustion dynamics and lowers the flame temperature, which can be beneficial for certain oxidation-sensitive powders but may not melt high-temperature carbides as effectively. Traditional Plasma Spray generates much higher temperatures but significantly lower particle velocities.
Plasma sprayed coatings often exhibit higher porosity and lower bond strengths due to the lack of kinetic impact. HVOF strikes the optimal balance for dense carbide deposition. It delivers superior coating density and higher mechanical bond strength. Oxide inclusion levels remain exceptionally low during the HVOF process. This balance ensures reliable performance in severe industrial applications. The process provides excellent scalability for manufacturing operations. It also serves as a highly efficient repair method for worn components. The dense microstructure resists the penetration of corrosive gases effectively.
Process | Flame Temperature | Particle Velocity | Typical Porosity | Optimal Use Case |
|---|---|---|---|---|
HVOF | ~3000°C | Supersonic (Mach 2+) | < 1% | Dense carbide coatings, high bond strength |
HVAF | ~2000°C | Supersonic (Mach 1-2) | < 1% | Oxidation-sensitive materials, thinner coatings |
Plasma Spray | ~10000°C | Subsonic | 2% - 5% | Ceramics, thermal barrier coatings (TBCs) |
Engineers must identify suitable base metals for application. Carbon steels and low-alloy steels accept these coatings readily. The 300 and 400 series stainless steels provide excellent substrates for high-temperature environments. Superalloys like Inconel and Hastelloy also bond well with this material. Evaluating mechanical bond strength requires standardized testing metrics. Industry standards like ASTM C633 define the precise testing protocols for thermal spray adhesion.
A successful application requires strict adherence to these adhesion standards. The substrate must possess sufficient strength to support the coating. Soft substrates may deform under high point loads. This deformation causes the hard coating to fracture, known as the "eggshell effect." Engineers must evaluate the yield strength of the base metal at operating temperatures. Proper material pairing ensures long-term mechanical stability and prevents subsurface yielding.
The as-sprayed surface roughness of chromium carbide is relatively high, typically ranging from 150 to 300 microinches Ra. Components often require post-coating processes to meet engineering specifications. Standard cutting tools cannot machine this extremely hard surface. Diamond grinding is necessary to achieve tight dimensional tolerances. Operators must use specific resin-bonded diamond wheel configurations and heavy synthetic coolant flows.
Lapping provides specific surface finishes for critical sealing applications, bringing the roughness down to under 4 microinches Ra. Superfinishing techniques achieve mirror-like surfaces when required for mechanical seals. Engineers must set clear expectations for these finishing requirements on the mechanical drawings. Proper finishing ensures optimal performance in high-friction environments. It reduces the initial wear rate of mating components. Careful grinding prevents micro-cracking in the coating surface.
Select the appropriate resin-bonded diamond grinding wheel (e.g., D151 or D64 grit).
Establish a continuous flow of synthetic coolant to prevent thermal shock.
Maintain shallow depths of cut, typically not exceeding 0.0002 inches per pass.
Monitor the traverse rate to prevent surface glazing or heat checking.
Perform final lapping with diamond paste for high-pressure sealing surfaces.
Validating the integrity of the applied coating requires rigorous inspection protocols. Visual inspection alone cannot detect subsurface defects or inadequate bonding. Engineers must specify metallographic evaluations on representative test coupons sprayed concurrently with the actual components. These coupons are sectioned, mounted, and polished to examine the coating cross-section under optical microscopy. This evaluation confirms the coating density, verifies porosity levels remain below 1%, and checks for un-melted particles.
Non-destructive testing (NDT) methods are mandatory for the finished parts. Eddy current testing verifies the final coating thickness across the entire geometry. Dye penetrant inspection identifies any surface micro-cracking induced during the grinding process. Hardness testing, typically using the Vickers micro-hardness scale (HV300), ensures the carbide matrix achieved the required mechanical properties. Implementing these strict quality assurance steps guarantees the component will perform reliably in extreme heat environments.
Implement these actionable steps to protect your critical components and ensure long-term reliability in extreme high-temperature environments.
Conduct a thorough wear and thermal analysis of the failing component to confirm the exact operating temperature range.
Verify substrate compatibility and structural yield strength with your mechanical engineering team.
Engage a certified thermal spray provider to establish prototype testing and validate the bond strength.
Define strict quality control parameters for surface preparation, masking, and post-coating diamond grinding.
A: The coating is engineered for continuous operation in environments up to 815°C (1500°F). It maintains structural integrity, oxidation resistance, and high micro-hardness within this extreme temperature range.
A: The process keeps the substrate temperature typically under 150°C (300°F). This low heat input prevents metallurgical changes, warping, or distortion in the base material, preserving its original mechanical properties.
A: Tungsten carbide oxidizes rapidly and becomes brittle above 500°C. Chromium carbide forms a protective oxide scale, maintaining its wear resistance and structural integrity in high-heat environments where tungsten carbide fails.
A: The process requires line-of-sight application. Coating deep internal diameters or shadowed geometries is challenging. Mitigation requires specialized internal diameter guns, strategic masking, or component redesign for better accessibility.
A: Typical applied thickness ranges from 0.003 to 0.015 inches (75 to 380 microns). The exact thickness depends on the specific wear environment, thermal cycling parameters, and post-coating finishing requirements.
A: Hard chrome plating degrades, micro-cracks, and loses hardness at elevated temperatures. HVOF chromium carbide offers vastly superior wear resistance, higher temperature stability, and eliminates the environmental hazards associated with hexavalent chromium baths.
A: The substrate must undergo rigorous grit blasting using angular aluminum oxide to achieve a precise anchor pattern (typically 3-4 mils). The surface must be absolutely free of oils, moisture, and contaminants immediately before spraying.
