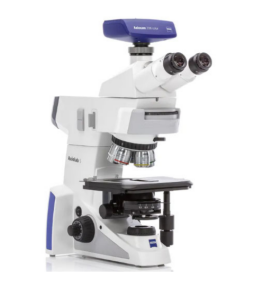

Zeiss microscope

1.Lens

1) Wide field of view binocular viewing eyepiece, 10x/22 high eye point, with visual compensation eyepiece, equipped with pre-installed cruciform micrometer. The viewing area is large and comfortable. The binocular barrel is hinged with adjustable eye point.

2) EC objective further corrects chromatic aberration and strain minimization on the basis of traditional objective, enhances short-wavelength transmittance, and enhances contrast. The use of low refractive index and low dispersion of natural fluorite materials and special coating technology, exquisite grinding technology. Coating anti-mildew, anti-mildew without chemicals. Can provide high contrast, high contrast, high resolution image quality.

EC "Epiplan" 5x/ 0.13M27

EC "Epiplan" 10x/ 0.25M27

EC "Epiplan" 20x/ 0.40M27

EC "Epiplan" 50x/ 0.75M27

3) In the international microscope standard, it is based on the ZEISS objective lens standard.

4) 50 objective lens with retractable protection design.

2. Stage and objective converter

1) The moving range of the mechanical stage is 75x30mm.

2) 5-hole bright dark field multifunctional objective lens converter, with no adjustment mechanism of automatic locking to prevent sliding harmonic gear device, long-term use to prevent sliding. With position coding, automatically adjust the brightness of the light source under various multiples.

3) "Stability unit" (objective rotating plate, stage, focusing device) design, improve stability, prevent external vibration and temperature interference.

3. Recording device

20 megapixel camera

4. Light Source

The latest design fully meets Kohler lighting's full achromatic reflected light path and improves image quality. With a specially designed highly integrated long life high brightness LED light source, the service life can reach 55,000 hours. Enhance color reduction of light and improve resolution. At the same time, the light efficiency is high and uniform.

5, color filter and other accessories

Eyepiece reticle micrometer and table are used for length measurement and calibration.

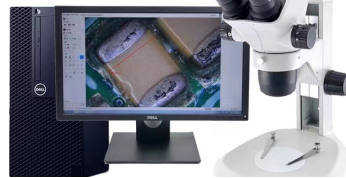

6. Image output

1) Image processing software: general functions include image acquisition, safe and reliable data management, a variety of image processing methods, image segmentation and processing, geometric parameter measurement, feature extraction, image stitching, image annotation, various processing operations, modular detection reports, etc. Special functions meet China GB and some ASTM related material standards: Metal average grain size rating, low carbon cold rolled sheet ferritic grain size rating, ferritic grain size rating mixed with pearlite, nonmetallic inclusion rating, nodular cast iron nodulation rate measurement rating, gray cast iron metallographic analysis, creep cast iron metallographic analysis, ferritic austenitic duplex stainless steel α-phase metallographic measurement, austenitic stainless steel α-phase metallographic measurement, second phase area content measurement, polyphase area content measurement, particle size analysis, measurement of carburizing layer depth, measurement of decarburizing layer depth, graphite carbon rating in steel, high speed steel bulk carbide rating, phase spacing and branch crystal spacing measurement, recombination rate measurement, aluminum and aluminum alloy grain size rating. The standard atlas comparison rating function is provided to ensure that the microscope sample image and the standard atlas photo are displayed at the same magnification on the computer screen. Provide unique atlas comparison photo production services, can scan the industry standards, enterprise standards, laboratory testing methods for users of the atlas photo, the production of a proprietary atlas comparison module.
