High Velocity Oxygen Fuel (HVOF) thermal spraying requires selecting a specific system architecture to dictate coating microstructure, component lifespan, and facility operational efficiency. Engineers face a constant tension between achieving optimal kinetic-to-thermal energy ratios for specific feedstock powders and managing practical constraints like fuel availability, safety compliance, and continuous combustion stability. Choosing between liquid-fuel and gas-fuel architectures demands a rigorous evaluation of metallurgical requirements against facility infrastructure. You must weigh the need for dense carbide coatings against the practicalities of gas storage and oxygen consumption. We will evaluate the technical differences, material compatibilities, and operational demands of kerosene HVOF vs gas HVOF to help you optimize surface engineering operations and select the exact equipment configuration for your production floor.
Kinetic vs. Thermal Dominance: Kerosene HVOF systems typically generate higher combustion pressures and particle velocities (favoring kinetic energy), whereas gas-fueled systems often operate at higher temperatures with lower velocities (favoring thermal energy).
Material Specificity: Liquid-fuel systems are generally the industry standard for dense, low-porosity tungsten carbide (WC) coatings due to reduced decarburization, while gas-fueled systems excel with specific metallic alloys and applications requiring higher thermal input.
Infrastructure Demands: Gas-fueled systems require high-pressure gas storage and specialized delivery infrastructure, whereas kerosene systems require liquid storage, pumping mechanisms, and specific atomization controls.
Operational Economics: The decision heavily relies on regional fuel costs, oxygen consumption rates (which differ significantly between the two processes), and the required throughput volume.
Table of Contents
The baseline objective of any HVOF system is maintaining continuous, stable combustion to accelerate semi-molten powder particles to supersonic speeds. This impact creates high-density, high-bond-strength coatings with minimal thermal degradation. Achieving this requires precise control over fuel chemistry, gas dynamics, and powder injection parameters. The fundamental difference between systems lies in how they generate and manage this combustion energy. Operators must understand the fluid dynamics inside the torch to troubleshoot coating defects and optimize deposition efficiency.

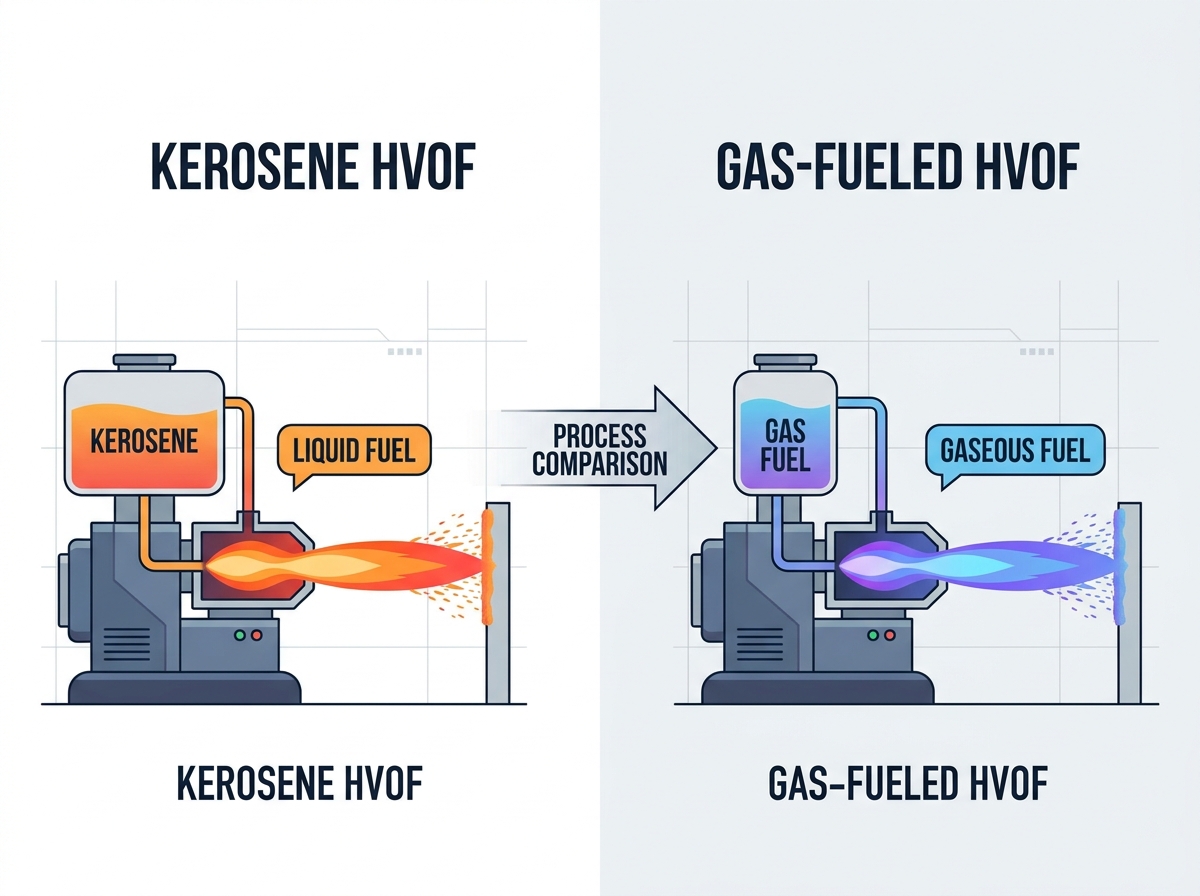

Liquid-fuel HVOF systems use kerosene mixed with high-pressure oxygen to generate a high-energy combustion process. The expanding gases accelerate through a specialized nozzle, creating high particle velocity for coating deposition. Compared with some gas-fuel systems, kerosene provides a lower heat profile that helps reduce thermal damage to sensitive powders. Proper control of fuel flow and oxygen supply is essential for maintaining stable combustion and consistent coating quality.
Gas-fuel HVOF systems use fuels such as hydrogen, propylene, propane, or natural gas mixed with oxygen to generate combustion energy. Compared with liquid-fuel systems, they typically operate at lower chamber pressures but provide higher flame temperatures. Advanced nozzle designs help accelerate particles to the required velocity while controlling heat input. Proper gas pressure regulation and stable fuel supply are essential to maintain consistent spraying and prevent coating defects caused by flame instability.
Kerosene systems dominate in kinetic energy output. The higher mass flow of the liquid fuel combined with elevated combustion pressure yields superior particle velocities. Faster particles carry higher impact energy upon striking the substrate. This mechanical deformation creates exceptional coating density. The particles flatten out violently upon impact, creating thin, tightly packed splats.
Conversely, Gas-Fueled HVOF Systems typically deliver higher thermal energy. The elevated flame temperatures alter the particle melting states. This thermal dominance improves deposition efficiency for materials with higher melting points. The particles arrive at the substrate in a more molten state, allowing them to flow and conform to the underlying surface topography. However, this requires careful monitoring. If the particles get too hot, they oxidize in flight. Oxide stringers between the splat boundaries will weaken the coating and reduce its cohesive strength.
The choice of HVOF fuel affects coating structure and performance. Optimized kerosene systems are commonly used for carbide coatings because their high particle velocity helps create dense coatings with strong bonding and wear resistance. Gas-fuel systems provide excellent results for metallic materials such as stainless steel and Hastelloy, where higher thermal input helps improve particle fusion and coating density. The best fuel choice depends on the coating material, required hardness, corrosion resistance, and application conditions.
Material selection dictates the optimal system architecture. Certain powders respond better to specific energy profiles. Using the wrong fuel type for a specific powder morphology will result in poor deposition efficiency and rejected parts.
Tungsten Carbides (WC-Co, WC-CoCr): Kerosene is the preferred fuel. The combination of higher velocity and lower temperature minimizes decarburization. It prevents the transformation of tungsten carbide into brittle W2C or eta phases. This retains the critical wear-resistant properties of the primary carbide phase.
Chrome Carbides (Cr3C2-NiCr): Both systems can spray chrome carbide effectively, but kerosene often provides a denser coating for high-temperature wear applications.
Metallic Alloys (Inconel, Hastelloy, Stainless Steels): Gas systems provide superior results here. They deliver the higher thermal input required for efficient melting. This ensures excellent deposition efficiency and dense microstructures for corrosion-resistant metallic layers.
Self-Fluxing Alloys: Gas systems excel with these materials. The hotter flame helps initiate the fluxing action during the spray process, reducing the time required for subsequent fusing operations.
Theoretical performance translates directly into field reliability. Different industries gravitate toward specific fuel architectures based on their dominant wear mechanisms and operational environments. Understanding these industry standards helps narrow down the equipment selection process.
The oil and gas sector relies heavily on liquid-fuel systems. Components like gate valves, pump rotors, mud motor rotors, and hydraulic rods face extreme abrasive and erosive wear. These applications demand thick, ultra-dense carbide coatings. The kinetic dominance of kerosene ensures the necessary microhardness and bond strength. Liquid systems provide the robust, low-porosity surfaces required to survive downhole environments and high-pressure fluid handling. When a mud motor rotor operates in drilling mud packed with sand and rock cuttings, only a pristine, un-decarburized tungsten carbide coating applied via kerosene HVOF will survive the required service interval.
Aerospace and power generation facilities frequently utilize gas-fuel utility. Components such as turbine blades, compressor vanes, and landing gear require specialized superalloy coatings. Dimensional restoration projects demand precise thermal profiling during application. Gas systems excel at applying MCrAlY coatings and high-temperature alloys. The ability to fine-tune the thermal input ensures proper melting and oxidation control for these critical flight and generation components. Landing gear overhauls often use gas systems to apply thick layers of WC-17Co or specific steel alloys to replace hard chrome plating, relying on the gas system's ability to build thick coatings without inducing excessive residual stress.
Integrating a thermal spray system requires significant facility planning. The choice of fuel dictates infrastructure upgrades, safety protocols, and daily operational workflows. You must evaluate your existing facility capabilities before committing to an architecture. Retrofitting a facility for a different fuel type later is highly disruptive and complex.
Fuel storage and safety requirements vary between liquid and gas HVOF systems. Kerosene systems mainly require proper storage, spill protection, and fire prevention measures. Gas-fuel systems, especially hydrogen-based systems, require stricter controls, including specialized gas delivery systems, leak detection, ventilation, and safety compliance. Proper facility planning and operator training are essential to ensure safe and reliable operation.
Consistent powder delivery is essential for stable HVOF coating quality. The powder feeder must work smoothly with the fuel system, using carrier gases such as argon or nitrogen to transport powder to the torch. Proper control of carrier gas flow helps maintain a stable spray plume and uniform coating results. Liquid-fuel systems require more precise pressure control due to their higher operating pressures, while gas-fuel systems are generally more tolerant but still need stable powder feeding.
Consumable usage rates differ drastically between the two technologies. Oxygen consumption is a major operational factor. Kerosene systems require significantly higher oxygen flow rates to achieve complete combustion of the liquid fuel. Facilities must ensure their oxygen supply infrastructure can support this demand. A standard liquid cylinder setup will freeze up quickly under the draw of a kerosene system; bulk liquid oxygen tanks with high-capacity vaporizers are mandatory.
Fuel supply chain realities also impact operations. Industrial gases like hydrogen or propylene may face regional availability issues or delivery delays. Aviation-grade or highly refined kerosene is often more universally accessible. You must analyze your local supply chain reliability to prevent unexpected downtime.
Hardware degradation rates vary based on the fuel type. Combustion chambers, nozzles, and powder injection ports experience different wear patterns. Kerosene systems often face higher mechanical wear due to elevated internal pressures and the abrasive nature of high-velocity carbide particles. Liquid pumping and atomization systems add mechanical complexity. They require regular seal replacements, filter changes, and pump maintenance.
Gas systems rely on mass flow controllers. While these controllers are highly reliable, the torches experience distinct thermal stresses. The hotter gas flames can degrade the internal geometry of the combustion chamber faster if the cooling water flow is not perfectly maintained. Facilities must plan maintenance schedules around these specific wear characteristics.
Operational Parameter | Kerosene HVOF (Liquid-Fuel) | Gas-Fueled HVOF |
|---|---|---|
Primary Energy Focus | Kinetic Dominant | Thermal Dominant |
Typical Fuels | Aviation Kerosene, Jet-A | Hydrogen, Propylene, Propane |
Combustion Chamber Pressure | 100 - 130 psi | 60 - 90 psi |
Particle Velocity | 1800 - 2200 m/s | 1200 - 1800 m/s |
Optimal Feedstock | Tungsten Carbides, Chrome Carbides | Superalloys, Stainless Steels, Metallics |
Oxygen Demand | High (Requires bulk vaporizers) | Moderate (Standard manifolds often suffice) |
Facility Infrastructure | Liquid Storage, Spill Containment | High-Pressure Gas Manifolds, ATEX Zoning |
Take the following steps to finalize your system selection and ensure a successful equipment deployment:
Audit your existing facility gas delivery infrastructure to determine maximum continuous oxygen and fuel flow rates.
Submit a 5kg sample of your primary feedstock for test spraying under both liquid and gas configurations to evaluate microstructural outcomes.
Map your required coating microhardness and porosity specifications against the thermal profiles of available fuel architectures.
Install dedicated cooling jets on your robotic manipulation arm to manage substrate temperatures during high-velocity deposition.
A: While gas-fueled systems produce high-quality coatings, they operate at higher temperatures and lower velocities than kerosene systems. This thermal profile increases the risk of decarburization in tungsten carbide. Kerosene systems consistently achieve higher densities and lower porosity (often under 1%) for carbide materials due to their superior kinetic energy output.
A: Kerosene HVOF systems require significantly higher oxygen flow rates to achieve complete combustion of the liquid fuel. Gas-fueled systems operate with lower oxygen volumes because the gaseous fuel mixes and combusts more readily. Facilities must ensure their oxygen supply infrastructure, including vaporizers, can handle the elevated demands of a liquid-fuel architecture.
A: Gas-fueled systems are more prone to causing decarburization. The higher flame temperatures can melt the tungsten carbide particles entirely, causing the carbon to oxidize or dissolve into the binder matrix. Kerosene systems run cooler and faster, keeping the carbide core solid and preventing the formation of brittle phases.
A: Hydrogen-fueled systems require strict adherence to ATEX or NFPA standards due to the high flammability and explosive potential of the gas. Facilities typically need specialized high-pressure manifolds, automated leak detection sensors, appropriate roof-level ventilation, and dedicated blast walls. These safety infrastructure upgrades are critical before commissioning.
A: Converting a console is not practical or recommended. Kerosene systems require specialized liquid pumping mechanisms, distinct atomization controls, and different combustion chamber geometries to handle liquid fuel expansion. You need a dedicated liquid-fuel console and torch assembly to ensure stable, continuous combustion and optimal coating quality.
A: Kerosene spray guns experience higher internal pressures and distinct wear patterns in the combustion chamber and nozzle due to liquid atomization dynamics and abrasive particle velocities. Gas-fueled guns face different thermal stresses depending on the specific gas used. Liquid systems generally demand more frequent maintenance of pumping components and seals.
